Bare conductors are a fundamental component in the electrical and power distribution industry. These uninsulated wires and cables are essential for various applications, providing the backbone for efficient power transmission and distribution. In this article, we will delve into the world of bare conductors, exploring their types, applications, advantages, and the critical role they play in modern infrastructure.

What Are Bare Conductors?

Bare conductors, as the name suggests, are wires or cables that do not have an insulating cover. They are typically made from metals such as aluminum, copper, or alloys and are used in situations where insulation is not necessary. These conductors are crucial in overhead power lines, grounding systems, and various industrial applications.

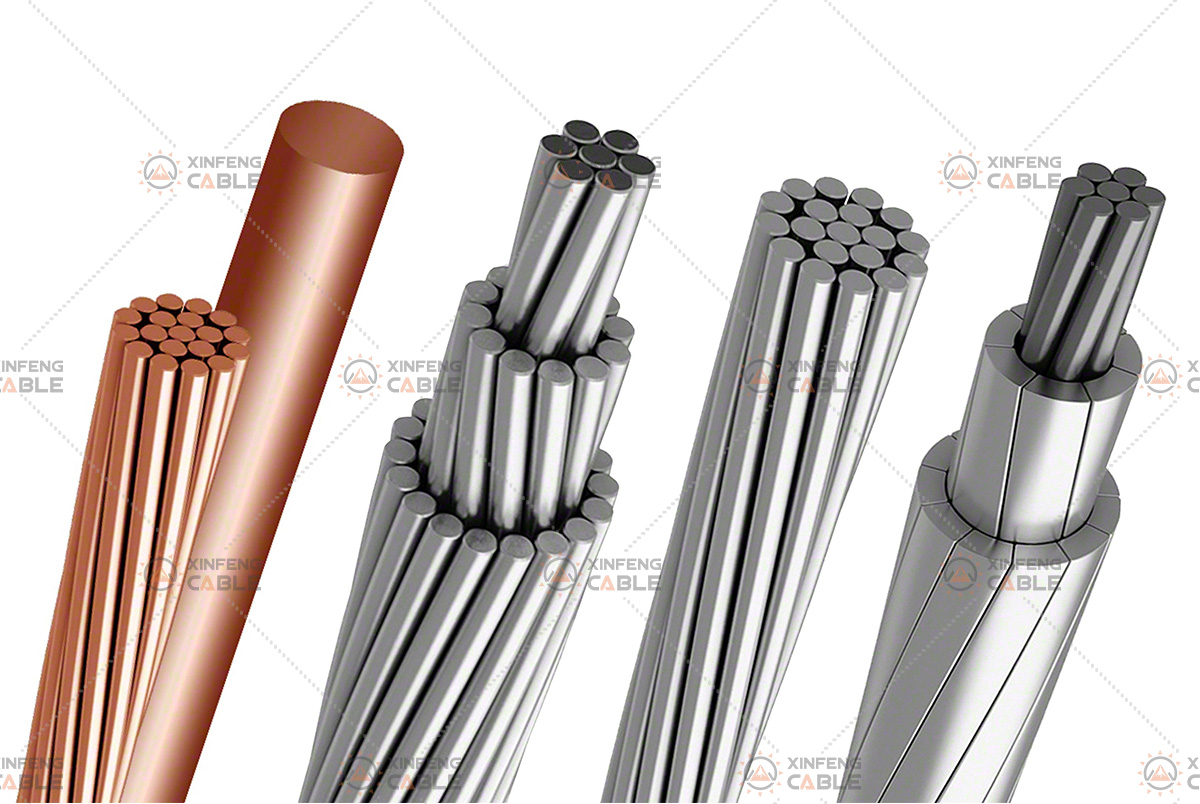

Types of Bare Conductors

There are several types of bare conductors, each designed for specific applications and environments. The most common types include:

1. Aluminum Conductors

Aluminum Conductor Steel Reinforced (ACSR): ACSR is one of the most widely used bare conductors. It consists of a core of steel strands surrounded by aluminum strands. The steel core provides strength and durability, while the aluminum strands ensure excellent conductivity. This combination makes ACSR ideal for overhead power transmission lines.

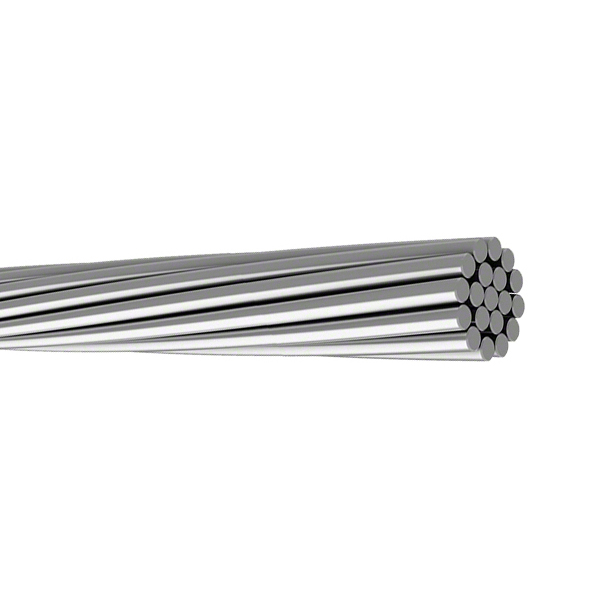

All Aluminum Alloy Conductor (AAAC): AAAC is made entirely of aluminum alloy, offering better strength-to-weight ratio and improved conductivity compared to ACSR. It is commonly used in areas where environmental conditions are harsh, such as coastal regions.

All Aluminum Conductor (AAC): AAC is composed of pure aluminum and is primarily used in urban areas with shorter spans. Its lightweight and high conductivity make it suitable for city power distribution networks.

2. Copper Conductors

Hard-Drawn Copper Conductor (HDCC): HDCC is made from high-purity copper that has been mechanically worked to increase its strength. It is commonly used in grounding systems and for specific applications where high conductivity and durability are required.

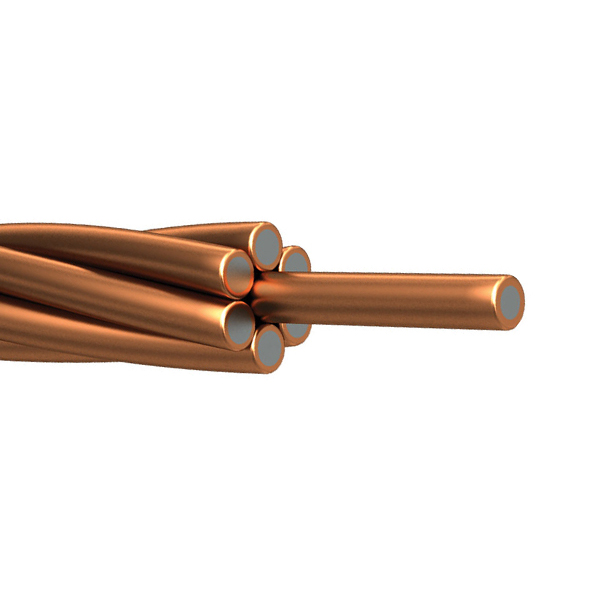

Copper Clad Steel (CCS): CCS combines the conductivity of copper with the strength of steel. It is often used in grounding applications where corrosion resistance and high tensile strength are necessary.

Applications of Bare Conductors

Bare conductors are used in a wide range of applications across various industries. Here are some of the primary uses:

1. Power Transmission and Distribution

Bare conductors are the backbone of power transmission and distribution networks. They are used in overhead power lines to carry electricity over long distances from power plants to substations and then to consumers. The high conductivity and mechanical strength of bare conductors ensure efficient and reliable power delivery.

2. Grounding Systems

In electrical installations, grounding is essential for safety and protection. Bare conductors are used in grounding systems to provide a low-resistance path to the earth, ensuring that electrical faults and lightning strikes are safely dissipated. This helps in protecting equipment and reducing the risk of electrical hazards.

3. Industrial Applications

In industrial settings, bare conductors are used in various applications such as busbars, which are essential for distributing power within electrical panels and switchgear. They are also used in welding applications, motor windings, and in the construction of large electrical machines.

4. Railway Electrification

Bare conductors are used in the electrification of railways, providing the necessary power for electric trains. They are used in overhead catenary systems, ensuring efficient and reliable power delivery to the trains.

Advantages of Bare Conductors

Bare conductors offer several advantages that make them a preferred choice in many applications:

1. High Conductivity

Bare conductors, especially those made from aluminum and copper, have excellent electrical conductivity. This ensures minimal power loss during transmission and distribution, making them highly efficient.

2. Durability and Strength

The mechanical strength of bare conductors, particularly ACSR and CCS, makes them suitable for applications where high tensile strength is required. They can withstand environmental stresses such as wind, ice, and temperature variations.

3. Cost-Effectiveness

Bare conductors are cost-effective compared to insulated cables. The absence of insulation reduces material costs, and their high efficiency translates to lower energy losses, contributing to overall cost savings.

4. Versatility

The variety of materials and constructions available for bare conductors allows them to be tailored to specific applications and environmental conditions. Whether for overhead transmission lines, grounding systems, or industrial applications, there is a bare conductor that meets the requirements.

5. Easy Maintenance

Without insulation, bare conductors are easier to inspect and maintain. Faults and damage can be quickly identified and repaired, reducing downtime and maintenance costs.

Choosing the Right Bare Conductor

Selecting the appropriate bare conductor for a specific application involves considering several factors:

1. Electrical Requirements

The electrical conductivity of the conductor material is a primary consideration. Copper conductors offer the highest conductivity, while aluminum and its alloys provide a balance between conductivity and weight.

2. Mechanical Strength

The mechanical strength required for the application will influence the choice of conductor. ACSR, with its steel core, offers excellent tensile strength, making it suitable for long spans and harsh conditions.

3. Environmental Conditions

Environmental factors such as temperature, humidity, and exposure to corrosive elements must be considered. AAAC conductors are designed to withstand harsh environments, while CCS conductors provide corrosion resistance in grounding applications.

4. Cost Constraints

Budget considerations will also play a role in the selection process. While copper conductors are more expensive, they offer superior conductivity. Aluminum conductors provide a cost-effective alternative with good performance.

Conclusion

Bare conductors are indispensable in the electrical and power distribution industry. Their high conductivity, durability, and cost-effectiveness make them the preferred choice for a wide range of applications, from power transmission and distribution to grounding systems and industrial uses. Understanding the different types of bare conductors and their specific advantages can help in making informed decisions for your projects.

If you are looking for reliable, high-quality bare conductors, our extensive range of products ensures that you will find the perfect solution for your needs. Contact us today to learn more about our offerings and how we can support your electrical infrastructure projects.

The Professional Manufacturer for Bare Conductors

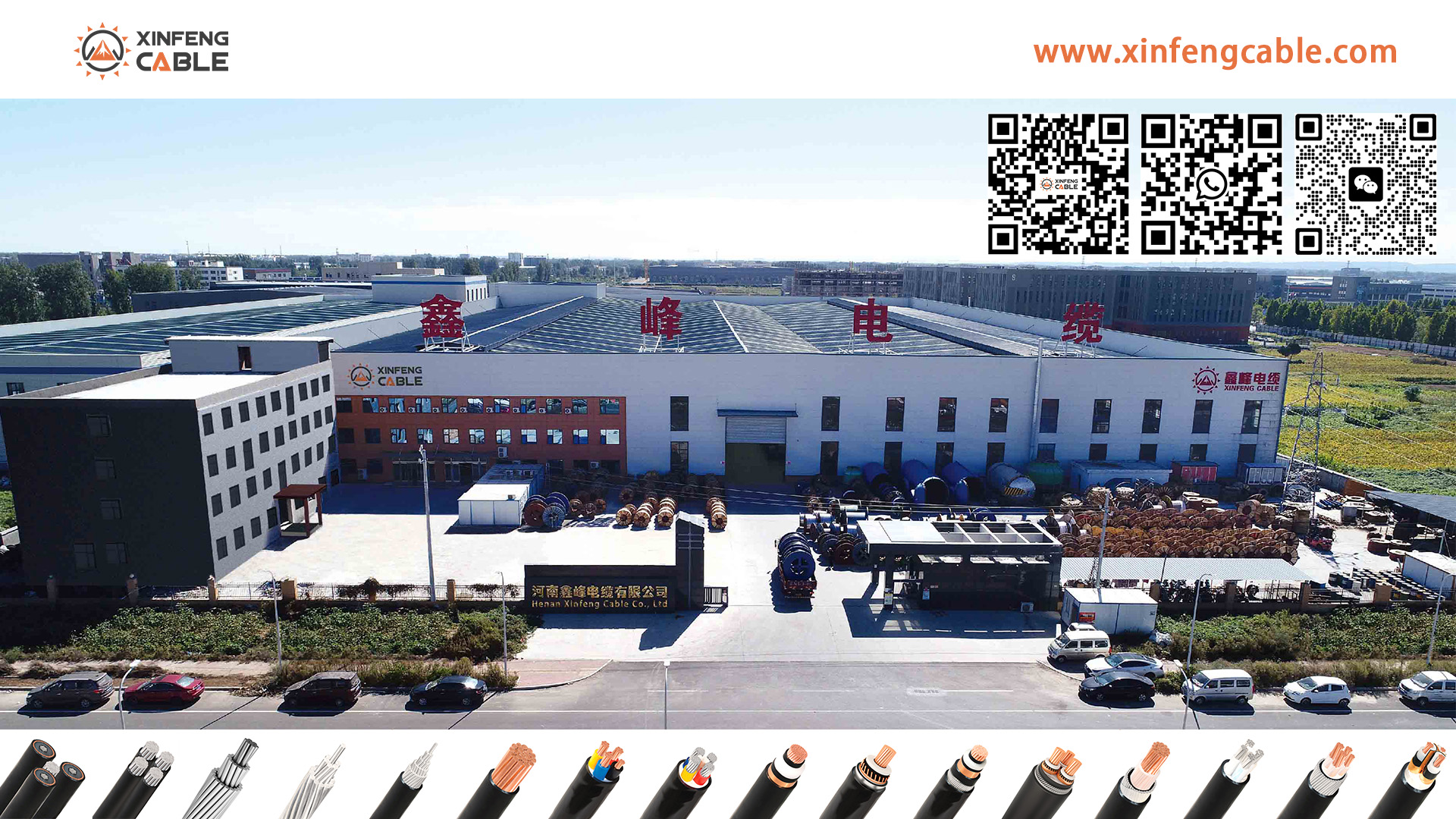

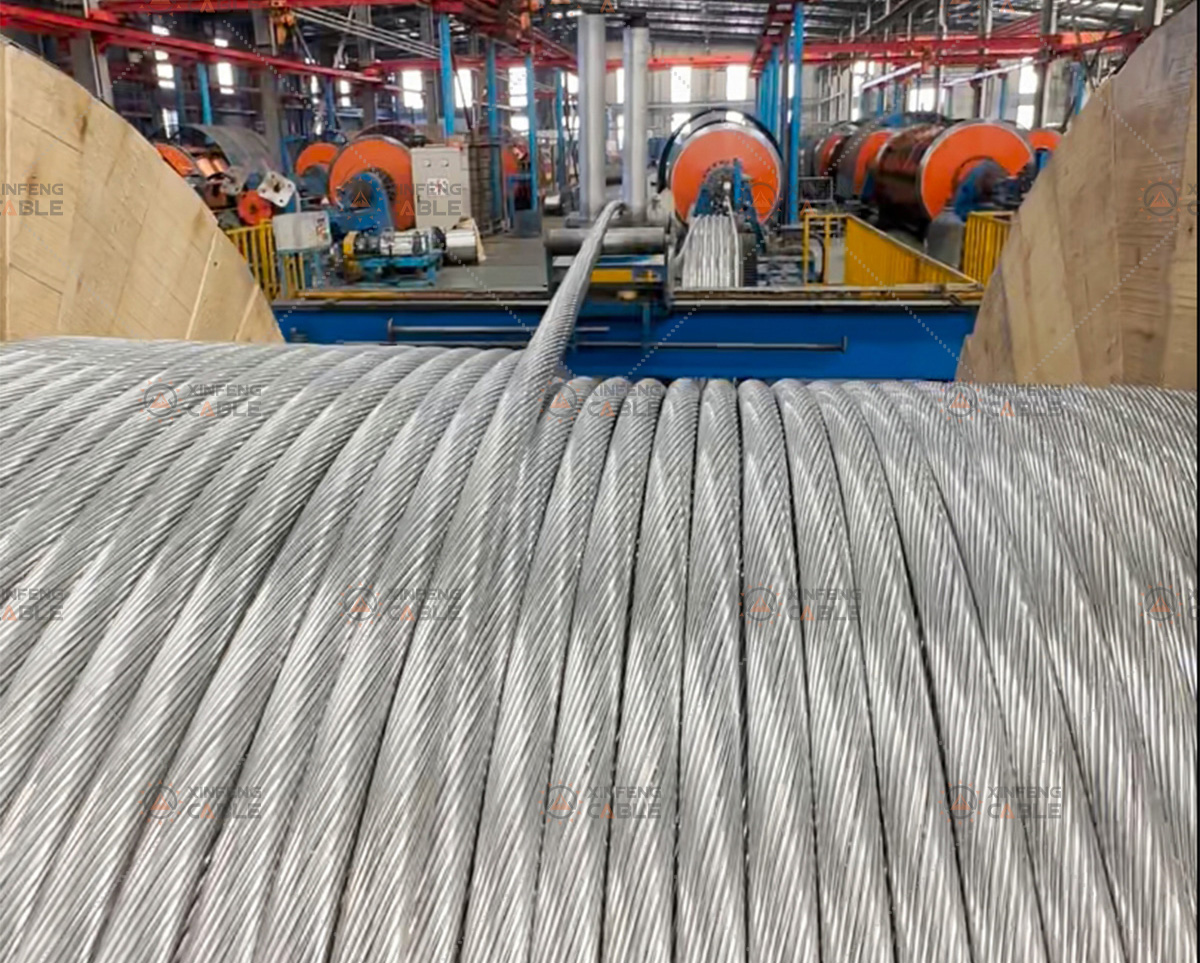

Xinfeng Cable is a leading manufacturer specializing in bare conductors. Founded in 1996, Xinfeng has established a strong reputation in the wire and cable industry, leveraging over two decades of experience and expertise. The company’s state-of-the-art manufacturing facility spans 100,000 square meters and is equipped with over 500 advanced production machines, ensuring the highest standards of quality and efficiency.
