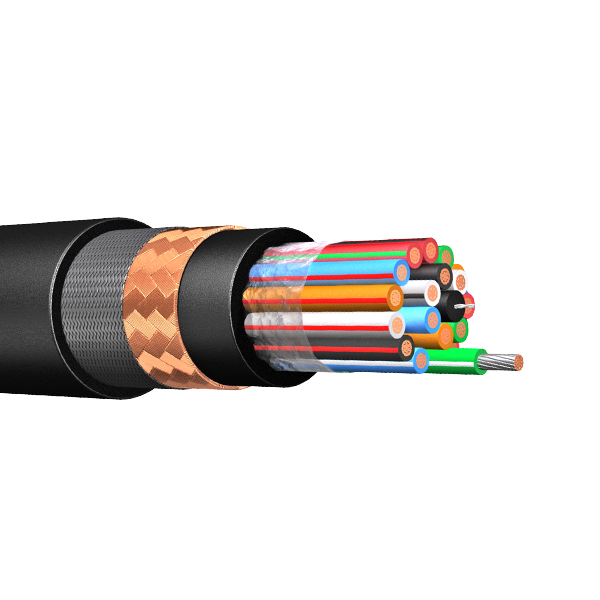

XLPE Insulated Copper Tape Screen Control Cable

Low voltage XLPE Contral Cable designed for equipments controlling

Application

The cables are designed for connection wires of power distribution equip-ments for controlling, monitoring, protecting circuits with A.C. rated voltage 450/750V (0.6/1kV)and below.

Share This Page

ABC Cable / Aerial Bundled Cable

Airport Lighting Cable

Bare overhead conductor

Concentric Service Cable

Control Cable

Installation / Building Cable

Low Voltage Cable

Medium Voltage Cable

Solar Cable

Standards

IEC 60502-1

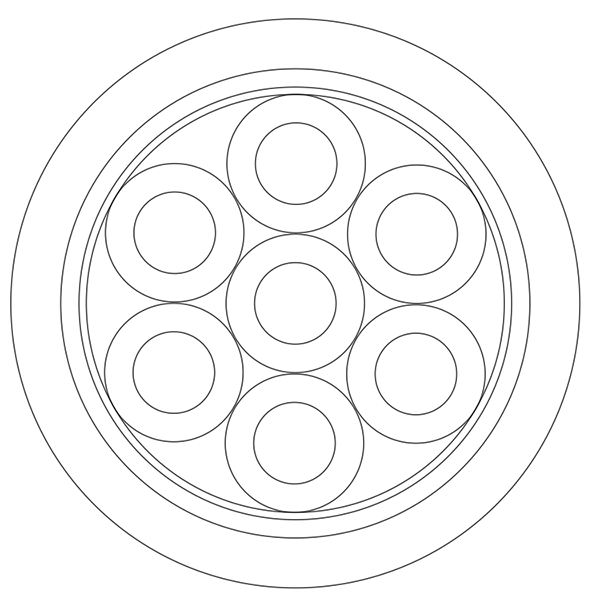

Construction

conductor: Plain annealed solid copper or stranded

Insulation: XLPE

Binder tape: Non-hygroscopic

Filler: Non-hygroscopic

Metallic Screen: Copper tape

Sheath: PVC

Characteristics

Rated voltage Uo/U is 450/750V(600/1000V).
Allowed continuous working temperature of conductor is 90℃
Installation temperature of cables should be no less than 0℃, Bending radius should be not less than 12 times O.D. of cable.
Max. Temperature of conductor (Max. 5sec. duration) should be not more than 250℃.

Specifications

Product range

Descriptions	Rated	Nom. area of conductor (mm2)
	voltage	0.75	1	1.5	2.5	4	6	10
	V	No .of cores
Copper conductor XLPE insulated and PVC sheathed control cable	450/750	2~61	2~61	2~61	2~14	2~14	2~14	2~10
Copper conductor XLPE insulated and PVC sheathed flexible control cable	450/750	2~61	2~61	2~61	2~14	2~14	2~14	2~10
Copper conductor XLPE insulated and PVC sheathed control cable with copper tape lapping screen	450/750	2~61	2~61	2~61	2~14	2~14	2~14	2~10
Copper conductor XLPE insulated and sheathed copper wire braiding shielded flexible control cable	450/750	2~61	2~61	2~61	2~14	2~14	2~14	2~10
Copper conductor XLPE insulated PVC sheathed copper tape shielded control cables	450/750	2~61	2~61	2~61	2~14	2~14	2~14	2~10
Copper conductor XLPE insulated and PVC sheathed flexible control cable with copper tape lapping screen	450/750	2~61	2~61	2~61	2~14	2~14	2~14	2~10
Copper conductor XLPE Insulated PVC Sheathed Copper Tape shielded steel tape armored Control Cables	450/750	4~61	4~61	4~61	4~14	4~14	4~14	4~10
Copper conductor XLPE insulated PVC sheathed steel tape armored control cables	450/750	4~61	4~61	4~61	4~14	4~14	4~14	4~10
Copper conductor XLPE insulated PVC sheathed steel wire armored control cables	450/750	4~61	4~61	4~61	4~14	4~14	4~14	4~10

Technical Parameter

Cores x nom. vross-section mm2	Conductor category	Nom. thickness of sheath mm	Approx. OD mm	Approx. weight kg/km
4×1.5	1	1.5	10.1	149.1
4×2.5	1	1.5	11.9	212.7
4×4.0	1	1.5	13	283.5
4×6.0	1	1.5	14.2	372.2
5×1.5	1	1.5	11.7	188.1
5×2.5	1	1.5	12.8	246.3
5×4.0	1	1.5	14.1	334.9
5×6.0	1	1.7	15.4	442.4
6×1.5	1	1.5	12.5	217
6×2.5	1	1.5	13.8	287.5
6×4.0	1	1.5	14.9	389.6
6×6.0	1	1.7	16.7	521.9
7×1.5	1	1.5	12.5	226.7
7×2.5	1	1.5	13.8	303.9
7×4.0	1	1.5	14.9	416.9
7×6.0	1	1.7	16.7	563.6
8×1.5	1	1.5	13.4	256.3
8×2.5	1	1.7	15	346.9
8×4.0	1	1.7	16.3	476.4
8×6.0	1	1.7	18	643.2
10×1.5	1	1.7	15.4	319.4
10×2.5	1	1.7	17.1	432.4
10×4.0	1	1.7	19.3	615.1
10×6.0	1	1.7	21.5	831.4
12×1.5	1	1.7	15.9	350.1
12×2.5	1	1.7	17.6	477.5
12×4.0	1	1.7	19.9	687.2
12×6.0	1	1.7	22.1	933.7
14×1.5	1	1.7	16.7	394.1
14×2.5	1	1.7	18.9	557.3
14×4.0	1	1.7	20.9	781.9
14×6.0	1	1.7	23.2	1067
16×1.5	1	1.7	17.5	443.2
16×2.5	1	1.7	19.8	628.7
19×1.5	1	1.7	18.7	516.4
19×2.5	1	1.7	20.7	713.8
24×1.5	1	1.7	21.6	637.6
24×2.5	1	1.7	24.2	885.8
27×1.5	1	1.7	22.1	697.4
27×2.5	1	1.7	24.5	973.5
30×1.5	1	1.7	22.9	760.3
30×2.5	1	2	25.4	1065.4
37×1.5	1	1.7	24.5	904.4
37×2.5	1	2	27.9	1314.1
