XLPE Insulated Control Cable

Copper conductor low voltage multi core cotrolling cable

Application

The cables are designed for connection wires of power distribution equip-ments for controlling, monitoring, protecting circuits with A.C. rated voltage 450/750V (0.6/1kV)and below.

Share This Page

ABC Cable / Aerial Bundled Cable

Airport Lighting Cable

Bare overhead conductor

Concentric Service Cable

Control Cable

Installation / Building Cable

Low Voltage Cable

Medium Voltage Cable

Solar Cable

Standards

IEC 60502-1

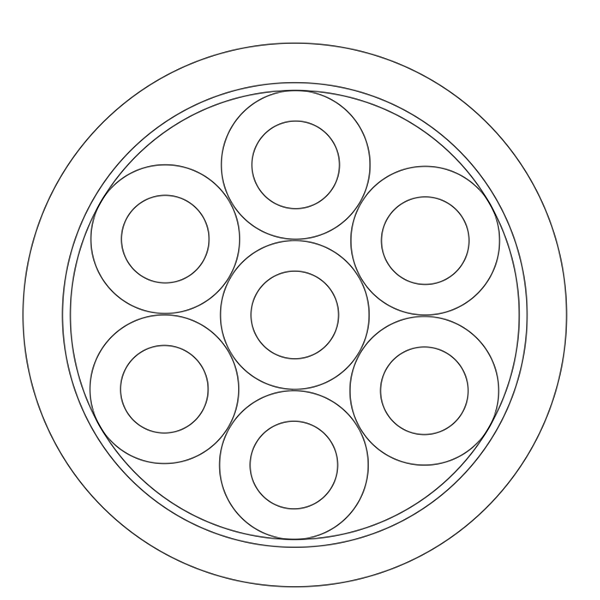

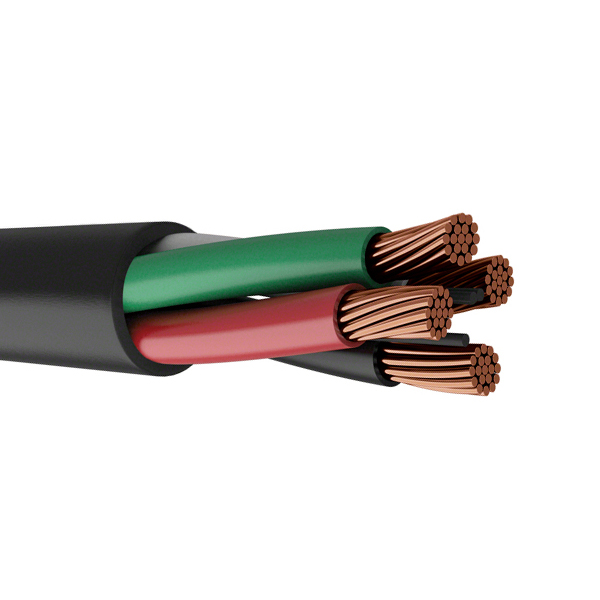

Construction

Conductor: Plain annealed solid copper or stranded

Insulation: XLPE

Binder tape: Non-hygroscopic

Filler: Non-hygroscopic

Sheath: PVC

Characteristics

Rated voltage Uo/U is 450/750V(600/1000V).
Allowed continuous working temperature of conductor is 90℃
Installation temperature of cables should be no less than 0℃, Bending radius should be not less than 12 times O.D. of cable.
Max. Temperature of conductor (Max. 5sec. duration) should be not more than 250℃.

Specifications

Product range

Descriptions	Rated	Nom. area of conductor (mm2)
	voltage	0.75	1	1.5	2.5	4	6	10
	V	No .of cores
Copper conductor XLPE insulated and PVC sheathed control cable	450/750	2~61	2~61	2~61	2~14	2~14	2~14	2~10
Copper conductor XLPE insulated and PVC sheathed flexible control cable	450/750	2~61	2~61	2~61	2~14	2~14	2~14	2~10
Copper conductor XLPE insulated and PVC sheathed control cable with copper tape lapping screen	450/750	2~61	2~61	2~61	2~14	2~14	2~14	2~10
Copper conductor XLPE insulated and sheathed copper wire braiding shielded flexible control cable	450/750	2~61	2~61	2~61	2~14	2~14	2~14	2~10
Copper conductor XLPE insulated PVC sheathed copper tape shielded control cables	450/750	2~61	2~61	2~61	2~14	2~14	2~14	2~10
Copper conductor XLPE insulated and PVC sheathed flexible control cable with copper tape lapping screen	450/750	2~61	2~61	2~61	2~14	2~14	2~14	2~10
Copper conductor XLPE Insulated PVC Sheathed Copper Tape shielded steel tape armored Control Cables	450/750	4~61	4~61	4~61	4~14	4~14	4~14	4~10
Copper conductor XLPE insulated PVC sheathed steel tape armored control cables	450/750	4~61	4~61	4~61	4~14	4~14	4~14	4~10
Copper conductor XLPE insulated PVC sheathed steel wire armored control cables	450/750	4~61	4~61	4~61	4~14	4~14	4~14	4~10

Technical Parameter

Cores×Nom. Cross-section mm2	Conductor category	Nom. thickness of sheath mm	Approx. OD mm	Approx. Weight kg/km
2×0.75	1	1.2	7.7	63.4
2×1.0	1	1.5	8.1	71.9
2×1.5	1	1.5	8.6	85.8
2×2.5	1	1.5	9.4	111.4
2×4.0	1	1.5	10.3	148.1
2×6.0	1	1.5	12	210.9
3×0.75	1	1.5	8.1	75.5
3×1.0	1	1.5	8.5	86.4
3×1.5	1	1.5	9	104.8
3×2.5	1	1.5	9.9	139.8
3×4.0	1	1.5	11.5	205.9
3×6.0	1	1.5	12.6	272.5
4×0.75	1	1.5	8.8	91.1
4×1.0	1	1.5	9.1	103.4
4×1.5	1	1.5	9.8	128.7
4×2.5	1	1.5	11.4	188.1
4×4.0	1	1.5	12.5	256.5
4×6.0	1	1.5	13.7	342.6
5×0.75	1	1.5	9.5	103
5×1.0	1	1.5	9.9	118.6
5×1.5	1	1.5	11.2	161.8
5×2.5	1	1.5	12.3	217.1
5×4.0	1	1.5	13.6	299.7
5×6.0	1	1.5	14.9	404.5
6×0.75	1	1.5	10.2	120.1
6×1.0	1	1.5	11.3	153.4
6×1.5	1	1.5	12	188.6
6×2.5	1	1.5	13.3	255.3
6×4.0	1	1.5	14.7	355.3
6×6.0	1	1.7	16.2	480.7
7×0.75	1	1.5	10.2	126.4
7×1.0	1	1.5	11.3	161.7
7×1.5	1	1.5	12	201.1
7×2.5	1	1.5	13.3	275.1
7×4.0	1	1.5	14.7	387.1
7×6.0	1	1.7	16.2	528.2
8×0.75	1	1.5	11.6	159.2
8×1.0	1	1.5	12.1	183.5
8×1.5	1	1.5	12.9	228.9
8×2.5	1	1.5	14.3	314.8
8×4.0	1	1.7	15.8	442.8
8×6.0	1	1.7	17.5	606.3
10×0.75	1	1.5	13.3	193.3
10×1.0	1	1.5	13.9	223.7
10×1.5	1	1.5	14.9	280.5
10×2.5	1	1.7	16.6	387.9
10×4.0	1	1.7	18.8	563.3
10×6.0	1	1.7	21	771.3
12×0.75	1	1.5	13.7	214.4
12×1.0	1	1.5	14.3	249.7
12×1.5	1	1.7	15.4	316.5
12×2.5	1	1.7	17.1	440.4
12×4.0	1	1.7	19.4	645.3
12×6.0	1	1.7	21.6	887.1
14×0.75	1	1.5	14.4	240.8
14×1.0	1	1.7	15	281.6
14×1.5	1	1.7	16.2	358.8
14×2.5	1	1.7	18	501.8
14×4.0	1	1.7	18.8	563.3
14×6.0	1	1.7	22.7	1017.8
16×0.75	1	1.7	15	268.7
16×1.0	1	1.7	15.8	316.4
16×1.5	1	1.7	17	404.1
16×2.5	1	1.7	19.3	584
19×0.75	1	1.7	15.7	304.1
19×1.0	1	1.7	16.6	359.6
19×1.5	1	1.7	17.8	461.4
19×2.5	1	1.7	20.2	669.9
24×0.75	1	1.7	18.6	391.5
24×1.0	1	1.7	19.6	461.8
24×1.5	1	1.7	21.1	591.7
24×2.5	1	1.7	23.5	834.7
27×0.75	1	1.7	19	426.9
27×1.0	1	1.7	20	505.1
27×1.5	1	1.7	21.6	650.5
27×2.5	1	1.7	24	921.4
30×0.75	1	1.7	19.6	464
30×1.0	1	1.7	20.7	550.6
30×1.5	1	1.7	22.4	711.6
30×2.5	1	1.7	24.9	1011.4
37×0.75	1	1.7	21.1	551.2
37×1.0	1	1.7	22.1	655.2
37×1.5	1	1.7	24	852.2
37×2.5	1	2	26.8	1219.7
