Solar Cable/ Photovoltaic Cable

Stranded tinned copper conductor Solar cable designed for photovoltaic system

Applications

These cables are designed for connecting photovoltaic system components inside and outside of buildings and equipment with high mechanical requirements and extreme weather conditions
Standards

TÜV 2PfG 1169/08.2007 (PV1-F) , EN 50618 :2014 (H1Z2Z2-K)

Share This Page

ABC Cable / Aerial Bundled Cable

Airport Lighting Cable

Bare overhead conductor

Concentric Service Cable

Control Cable

Installation / Building Cable

Low Voltage Cable

Medium Voltage Cable

Solar Cable

Standards

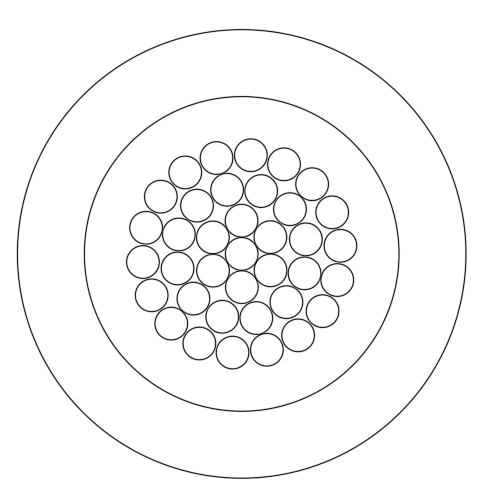

Construction

Conductor: Stranded tinned copper conductor per DIN VDE 0295 and IEC 60228 Class 5.

Insulation: Electron beam cross-linked, halogen free and ﬂame retardant compound.

Sheath: Electron beam cross-linked, halogen free and ﬂame retardant compound, Black or Red.

Characteristics

Electrical Properties
Rated Voltage U 0/U: AC: 1000V/1000V AC; DC:1500V/1500V ;
Maximum Permitted DC Voltage: 1800V DC (conductor/conductor, non-earthed system, circuit not under load)
Spark Test: 6000 V ac (8400 V dc)
Voltage Withstand: 6500 V ac for 5 min

Thermal Properties
Maximum Voltage: Ambient Temperature: -40℃ ℃~ +90℃
Maximum Temperature At Conductor: 120℃ ℃(20000h) according to IEC/EN 60216-1
Short Circuit Temperature: 200℃/5 sec
Thermal Endurance Test: According to EN 60216-2 (temperature index +120° °C)
High Temperature Pressure Test: According to EN 60811-3-1» Damp-Heat Resistance: According to EN 60068-2-78 with 85% humidity

Mechanical Properties
Minimum Bending Radius: 4×OD (fixed), 5×OD (flexing)
Dynamic Penetration: According to 2 PfG 1169/08.2007 Annex F
Notch Propagation: According to 2 PfG 1169/08.2007 Annex G
Tensile Strength and Elongation Of Insulation And Jacket: According to EN 60811
Anticipated Period Of Use: 25 years

Chemical Properties
Ozone Resistance: According to EN 50396 part 8.1.3 Method B
Weathering-UV Resistance: According to HD 605/A1
Ammoniac resistant
Very good resistance to oils and chemicals
High wear and robust, abrasion resistant
Acid & Alkaline Resistance: According to EN 60811-2-1 (Oxal acid and sodium hydroxide)

EC directives
The cables are conform to the EC directives CE 2006/95/EC (Low voltage directive) and RoHS 2002/95/EC (Restriction of Hazardous Substances)
Fire Performance
Flame retardant according to EN 50265-2-1, IEC 60332-1, VDE 0482-332-1-2, DIN EN 60332-1-2
Low smoke emission according to IEC 61034, EN 50268
Halogen free according to EN 50267-2-1, IEC 60754-1
Low corrosively of gases according to EN 50267-2-2, IEC 60754-2

Specifications

No.of cores╳Nominal Cross Section No. ╳ mm2	Mean Overall Diameter Upper limit mm	Nominal Weight kg/km	Minimum insulation resistance 20°C MΩ•km	Minimum insulation resistance 90°C MΩ•km	Maximum Conductor DC Resistance 20℃ Ω/km	Maximum Conductor AC Resistance 90℃ Ω/km
1×1.5	5.4	36	860	0.86	13.7	17.5
1×2.5	5.9	46	690	0.69	8.21	10.5
1×4	6.6	62	580	0.58	5.09	6.5
1×6	7.4	82	500	0.5	3.39	4.32
1×10	8.8	125	420	0.42	1.95	2.49
1×16	10.1	190	340	0.34	1.24	1.58
1×25	12.5	285	340	0.34	0.795	1.013
1×35	14	385	290	0.29	0.565	0.72
1×50	16.3	540	270	0.27	0.393	0.501
1×70	18.7	740	250	0.25	0.277	0.353
1×95	20.8	965	220	0.22	0.21	0.267
1×120	22.8	1210	210	0.21	0.164	0.209
1×150	25.5	1495	210	0.21	0.132	0.168
1×185	28.5	1885	200	0.2	0.108	0.137
1×240	32.1	2395	200	0.2	0.0817	0.104
2×1.5	5.4×11.5	72	860	0.86	13.7	17.5
2×2.5	5.9×12.6	97	690	0.69	8.21	10.5
2×4	6.6×14.0	130	580	0.58	5.09	6.5
2×6	7.4×16.4	170	500	0.5	3.39	4.32
2×10	8.8×19.1	265	420	0.42	1.95	2.49
2×16	10.1×23.9	394	340	0.34	1.24	1.58
2×25	12.5×26.3	585	340	0.34	0.795	1.013
2×35	14.0×29.9	789	290	0.29	0.565	0.72
