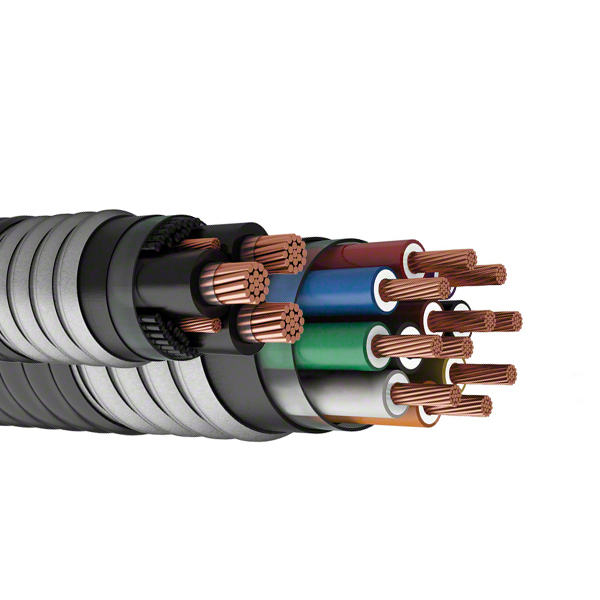

PVC Insulated Steel Tape Armored Control Cable
Copper conductor multi core control cable
Application
Wiring for controlling electrical equipment and instrument meters, monitoring and controlling return circuit, protecting and measuring in power distribution with rated voltage up to 450/750V(0.6/1KV) A.C.
Share This Page
Standards
GB/T9330-2008 ,IEC 60502-1, etc.

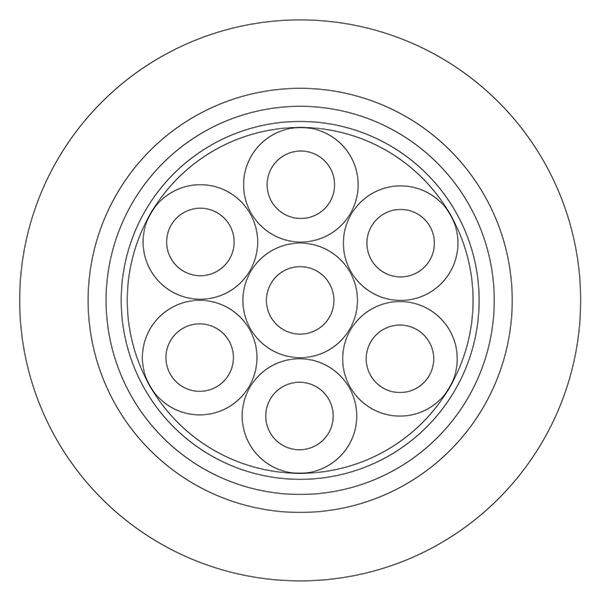

Construction
Conductor: Plain annealed solid copper or stranded
Insulation: PVC
Binder tape: Non-hygroscopic
Filler: Non-hygroscopic
Inner covering: Extruded PVC
Metallic screen:Double galvanized steel tape
Sheath: PVC
Characteristics
- The maximum permissible continuous operating temperature is 70℃
- The lowest installation temperature of the cable is 0℃ .
- Permissible Min. Bending radius: not less than 6 times of the completed cable diameter for unarmoured cable;
- Not less than 12 times of the completed cable diameter for armoured or copper tape screened cable;
- Not less than 6 times of the completed cable diameter for screened flexible cable.
Specifications
Production range
| Descriptions | Rated voltage U0/U |
Nominal conductor cross section (mm2) | ||||||
| 0.75 | 1 | 1.5 | 2.5 | 4 | 6 | 10 | ||
| Number of cores | ||||||||
| Copper conductor PVC insulated PVC sheathed control cables | 450/750V | 2～61 | 2～14 | 2～10 | ||||
| Copper conductor PVC insulated and sheathed flexible control cable | 2～61 | – | – | |||||
| Copper conductor PVC insulated and sheathed copper wire braiding shielded control cable | 4～61 | 4～14 | 4～10 | |||||
| Copper conductor PVC insulated and sheathed copper wire braiding shielded flexible control cable | 2～61 | – | – | |||||
| Copper conductor PVC insulated PVC sheathed copper tape shielded control cables | 4～61 | 4～14 | 4～10 | |||||
| Copper conductor PVC Insulated PVC Sheathed Copper Tape shielded steel tape armored Control Cables | 7～61 | 4～61 | 4～14 | 4～10 | ||||
| Copper conductor PVC insulated PVC sheathed steel tape armored control cables | 7～61 | 4～61 | 4～14 | 4～10 | ||||
| Copper conductor PVC insulated PVC sheathed steel wire armored control cables | 7～61 | 4～61 | 4～14 | 4～10 | ||||
Technical Parameter
| Number of cores×Nominal cross section mm2 |
Nominal thickness of insulation mm |
Nominal sheath thickness mm |
The Average outside diameter mm |
Max.DC resistance of conductor at 20 ℃ Ω/km |
Approx. Weight of cable kg/km |
|
| Limit | Caps | |||||
| 4×2.5 | 0.8 | 1.5 | 13.4 | 16.1 | 7.41 | 339.3 |
| 4×4 | 0.8 | 1.5 | 14.4 | 17.4 | 4.61 | 417.3 |
| 4×6 | 0.8 | 1.5 | 15.6 | 18.8 | 3.08 | 532.8 |
| 4×10 | 1 | 1.7 | 19.4 | 23.5 | 1.83 | 808.9 |
| 5×2.5 | 0.8 | 1.5 | 14.3 | 17.2 | 7.41 | 385.3 |
| 5×4 | 0.8 | 1.5 | 15.4 | 18.6 | 4.61 | 489.9 |
| 5×6 | 0.8 | 1.7 | 16.7 | 20.2 | 3.08 | 631.9 |
| 5×10 | 1 | 1.7 | 21 | 25.4 | 1.83 | 962.2 |
| 7×0.75 | 0.6 | 1.5 | 11.8 | 14.2 | 24.5 | 245.6 |
| 7×1.0 | 0.6 | 1.5 | 12.2 | 14.7 | 18.1 | 273.5 |
| 7×1.5 | 0.7 | 1.5 | 13.5 | 16.3 | 12.1 | 343.8 |
| 7×2.5 | 0.8 | 1.5 | 15.2 | 18.4 | 7.41 | 460.1 |
| 7×4 | 0.8 | 1.5 | 16.5 | 20 | 4.61 | 592.3 |
| 7×6 | 0.8 | 1.7 | 18 | 21.7 | 3.08 | 778.3 |
| 7×10 | 1 | 1.7 | 22.7 | 27.4 | 1.83 | 1195.1 |
| 8×0.75 | 0.6 | 1.5 | 12.7 | 15.3 | 24.5 | 269.2 |
| 8×1.0 | 0.6 | 1.5 | 13.2 | 15.9 | 18.1 | 300.6 |
| 8×1.5 | 0.7 | 1.5 | 14.7 | 17.7 | 12.1 | 379.9 |
| 8×2.5 | 0.8 | 1.5 | 16.7 | 20.1 | 7.41 | 511.4 |
| 8×4 | 0.8 | 1.7 | 18.2 | 21.9 | 4.61 | 678.5 |
| 8×6 | 0.8 | 1.7 | 20.2 | 24.4 | 3.08 | 871.4 |
| 8×10 | 1 | 1.7 | 25.2 | 30.4 | 1.83 | 1308.8 |
| 10×0.75 | 0.6 | 1.5 | 13.8 | 16.7 | 24.5 | 320.2 |
| 10×1.0 | 0.6 | 1.5 | 14.4 | 17.4 | 18.1 | 359.2 |
| 10×1.5 | 0.7 | 1.5 | 16.1 | 19.5 | 12.1 | 457.3 |
| 10×2.5 | 0.8 | 1.7 | 18.8 | 22.7 | 7.41 | 638.1 |
| 10×4 | 0.8 | 1.7 | 20.5 | 24.8 | 4.61 | 826.2 |
| 10×6 | 0.8 | 1.7 | 22.5 | 27.1 | 3.08 | 1075.2 |
| 12×0.75 | 0.6 | 1.5 | 14.1 | 17.1 | 24.5 | 349.4 |
| 12×1.0 | 0.6 | 1.5 | 14.8 | 17.8 | 18.1 | 394.2 |
| 12×1.5 | 0.7 | 1.5 | 16.6 | 20 | 12.1 | 506.6 |
| 12×2.5 | 0.8 | 1.7 | 19.3 | 23.4 | 7.41 | 713.4 |
| 12×4 | 0.8 | 1.7 | 21.1 | 25.5 | 4.61 | 933.3 |
| 12×6 | 0.8 | 1.7 | 23.1 | 27.9 | 3.08 | 1214.8 |
| 14×0.75 | 0.6 | 1.5 | 14.7 | 17.7 | 24.5 | 382.8 |
| 14×1.0 | 0.6 | 1.5 | 15.3 | 18.5 | 18.1 | 433.9 |
| 14×1.5 | 0.7 | 1.7 | 17.2 | 20.8 | 12.1 | 578.1 |
| 14×2.5 | 0.8 | 1.7 | 20.1 | 24.3 | 7.41 | 795.6 |
| 14×4 | 0.8 | 1.7 | 22 | 26.6 | 4.61 | 1048.3 |
| 14×6 | 0.8 | 1.7 | 24.2 | 29.2 | 3.08 | 1372.3 |
| 16×0.75 | 0.6 | 1.5 | 15.3 | 18.5 | 24.5 | 417.3 |
| 16×1.0 | 0.6 | 1.5 | 16 | 19.3 | 18.1 | 474.6 |
| 16×1.5 | 0.7 | 1.7 | 18 | 21.7 | 12.1 | 634.9 |
| 16×2.5 | 0.8 | 1.7 | 21.1 | 25.5 | 7.41 | 879.5 |
| 19×0.75 | 0.6 | 1.7 | 15.9 | 19.2 | 24.5 | 479.2 |
| 19×1.0 | 0.6 | 1.7 | 16.6 | 20.1 | 18.1 | 546.3 |
| 19×1.5 | 0.7 | 1.7 | 19.2 | 23.1 | 12.1 | 713.2 |
| 19×2.5 | 0.8 | 1.7 | 22 | 26.6 | 7.41 | 996.9 |
| 24×0.75 | 0.6 | 1.7 | 18 | 21.7 | 24.5 | 578.8 |
| 24×1.0 | 0.6 | 1.7 | 19.2 | 23.2 | 18.1 | 662.6 |
| 24×1.5 | 0.7 | 1.7 | 21.8 | 26.3 | 12.1 | 870.6 |
| 24×2.5 | 0.8 | 1.7 | 25.6 | 31 | 7.41 | 1225.3 |
| 27×0.75 | 0.6 | 1.7 | 18.7 | 22.5 | 24.5 | 619.8 |
| 27×1.0 | 0.6 | 1.7 | 19.5 | 23.6 | 18.1 | 712.2 |
| 27×1.5 | 0.7 | 1.7 | 22.2 | 26.8 | 12.1 | 941.1 |
| 27×2.5 | 0.8 | 1.7 | 26.1 | 31.6 | 7.41 | 1333.1 |
| 30×0.75 | 0.6 | 1.7 | 19.2 | 23.2 | 24.5 | 665.3 |
| 30×1.0 | 0.6 | 1.7 | 20.1 | 24.3 | 18.1 | 766.7 |
| 30×1.5 | 0.7 | 1.7 | 22.9 | 27.6 | 12.1 | 1017.2 |
| 30×2.5 | 0.8 | 1.7 | 27 | 32.6 | 7.41 | 1447.9 |
| 37×0.75 | 0.6 | 1.7 | 20.4 | 24.7 | 24.5 | 770.5 |
| 37×1.0 | 0.6 | 1.7 | 21.4 | 25.9 | 18.1 | 892.7 |
| 37×1.5 | 0.7 | 1.7 | 24.4 | 29.5 | 12.1 | 1193.7 |
| 37×2.5 | 0.8 | 2 | 29.4 | 35.6 | 7.41 | 1756.2 |
