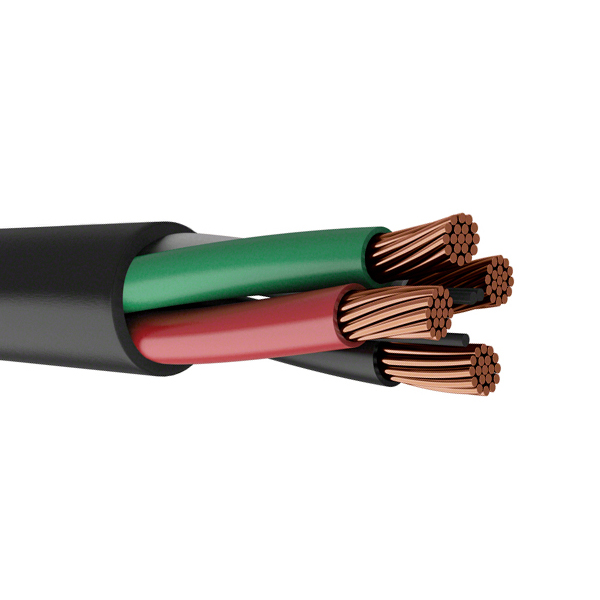

PVC Insulated Control Cable

Many kinds of PVC Control Cable can be manufactured By Xinfeng Cable

Application

Wiring for controlling electrical equipment and instrument meters, monitoring and controlling return circuit, protecting and measuring in power distribution with rated voltage up to 450/750V(0.6/1KV) A.C.

Share This Page

ABC Cable / Aerial Bundled Cable

Airport Lighting Cable

Bare overhead conductor

Concentric Service Cable

Control Cable

Installation / Building Cable

Low Voltage Cable

Medium Voltage Cable

Solar Cable

Standards

GB/T9330-2008 ,IEC 60502-1, etc.

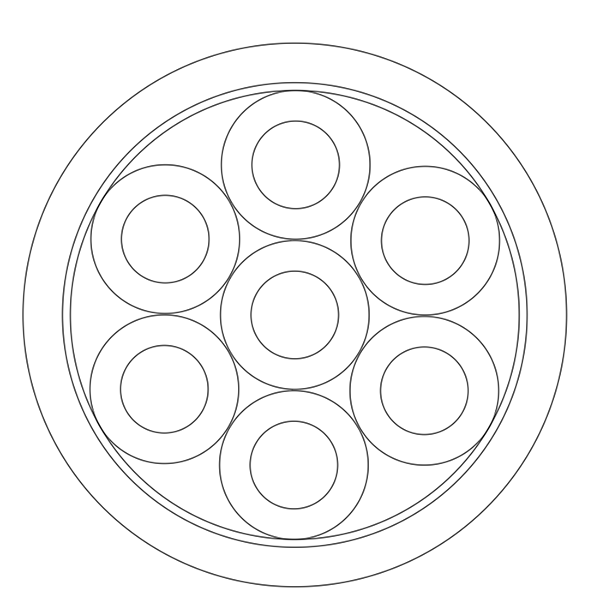

Construction

Conductor: Plain annealed solid copper or stranded

Insulation: PVC

Binder tape: Non-hygroscopic

Filler: Non-hygroscopic

Sheath: PVC

Characteristics

The maximum permissible continuous operating temperature is 70℃
The lowest installation temperature of the cable is 0℃ .
Permissible Min. Bending radius: not less than 6 times of the completed cable diameter for unarmoured cable;
Not less than 12 times of the completed cable diameter for armoured or copper tape screened cable;
Not less than 6 times of the completed cable diameter for screened flexible cable.

Specifications

Production range

Descriptions	Rated voltage U0/U	Nominal conductor cross section (mm2)
		0.75	1	1.5	2.5	4	6	10
		Number of cores
Copper conductor PVC insulated PVC sheathed control cables	450/750V	2～61				2～14		2～10
Copper conductor PVC insulated and sheathed flexible control cable		2～61				–		–
Copper conductor PVC insulated and sheathed copper wire braiding shielded control cable		4～61				4～14		4～10
Copper conductor PVC insulated and sheathed copper wire braiding shielded flexible control cable		2～61				–		–
Copper conductor PVC insulated PVC sheathed copper tape shielded control cables		4～61				4～14		4～10
Copper conductor PVC Insulated PVC Sheathed Copper Tape shielded steel tape armored Control Cables		7～61			4～61	4～14		4～10
Copper conductor PVC insulated PVC sheathed steel tape armored control cables		7～61			4～61	4～14		4～10
Copper conductor PVC insulated PVC sheathed steel wire armored control cables		7～61			4～61	4～14		4～10

Technical Parameter

Number of cores×Nominal cross section mm2	Nominal thickness of insulation mm	Nominal sheath thickness mm	Average outside diameter mm		Max. DC resistance of conductor at 20 ℃ Ω/km	Approx. weight of cable kg/km
Number of cores×Nominal cross section mm2	Nominal thickness of insulation mm	Nominal sheath thickness mm	Limit	Caps	Max. DC resistance of conductor at 20 ℃ Ω/km	Approx. weight of cable kg/km
2×0.75	0.6	1.2	6.7	8.1	24.5	62.8
2×1.0	0.6	1.2	7	8.5	18.1	70.2
2×1.5	0.7	1.2	7.9	9.5	12.1	88.5
2×2.5	0.8	1.2	9	10.9	7.41	124.3
2×4	0.8	1.2	9.9	11.9	4.61	160.2
2×6	0.8	1.2	10.8	13.1	3.08	211.3
2×10	1	1.7	14.3	17.3	1.83	362.8
3×0.75	0.6	1.2	7.1	8.5	24.5	78.3
3×1.0	0.6	1.2	7.4	8.9	18.1	88.5
3×1.5	0.7	1.2	8.3	10	12.1	113.7
3×2.5	0.8	1.2	9.5	11.5	7.41	156.9
3×4	0.8	1.2	10.5	12.7	4.61	208.5
3×6	0.8	1.5	11.5	13.9	3.08	300.4
3×10	1	1.7	15.2	18.4	1.83	487.4
4×0.75	0.6	1.2	7.6	9.2	24.5	93.2
4×1.0	0.6	1.2	7.9	9.6	18.1	106.3
4×1.5	0.7	1.2	9	10.9	12.1	138.7
4×2.5	0.8	1.2	10.4	12.5	7.41	202.2
4×4	0.8	1.5	11.4	13.8	4.61	283.9
4×6	0.8	1.5	13.2	15.9	3.08	385.4
4×10	1	1.7	16.6	20.1	1.83	615.6
5×0.75	0.6	1.2	8.2	9.9	24.5	106.3
5×1.0	0.6	1.2	8.6	10.3	18.1	122.5
5×1.5	0.7	1.2	9.7	11.7	12.1	162.1
5×2.5	0.8	1.5	11.3	13.6	7.41	253.5
5×4	0.8	1.5	13	15.7	4.61	344.3
5×6	0.8	1.5	14.3	17.3	3.08	454.3
5×10	1	1.7	18.2	22	1.83	750.2
7×0.75	0.6	1.2	8.8	10.6	24.5	129.2
7×1.0	0.6	1.2	9.2	11.1	18.1	151.1
7×1.5	0.7	1.2	10.5	12.7	12.1	204.4
7×2.5	0.8	1.5	12.8	15.5	7.41	317
7×4	0.8	1.5	14.1	17.1	4.61	433.8
7×6	0.8	1.5	15.6	18.8	3.08	585
7×10	1	1.7	20.3	24.5	1.83	963
8×0.75	0.6	1.2	9.7	11.7	24.5	144.6
8×1.0	0.6	1.2	10.2	12.3	18.1	169.4
8×1.5	0.7	1.5	11.7	14.1	12.1	247.6
8×2.5	0.8	1.5	14.3	17.2	7.41	357
8×4	0.8	1.5	15.8	19	4.61	490.1
8×6	0.8	1.7	17.4	21	3.08	679.3
8×10	1	1.7	22.8	27.5	1.83	1076.8
10×0.75	0.6	1.5	10.8	13.1	24.5	193.4
10×1.0	0.6	1.5	11.4	13.8	18.1	225.2
10×1.5	0.7	1.5	13.7	16.6	12.1	303.2
10×2.5	0.8	1.5	16	19.4	7.41	439.5
10×4	0.8	1.7	17.8	21.5	4.61	623.3
10×6	0.8	1.7	20.1	24.2	3.08	849.1
12×0.75	0.6	1.5	11.2	13.5	24.5	218.8
12×1.0	0.6	1.5	11.8	14.2	18.1	256.3
12×1.5	0.7	1.5	14.2	17.1	12.1	347.8
12×2.5	0.8	1.5	16.5	20	7.41	508.5
12×4	0.8	1.7	18.7	22.6	4.61	723.8
12×6	0.8	1.7	20.7	25	3.08	981.2
14×0.75	0.6	1.5	11.7	14.1	24.5	246
14×1.0	0.6	1.5	12.9	15.6	18.1	289.2
14×1.5	0.7	1.5	14.8	17.9	12.1	394.5
14×2.5	0.8	1.5	17.4	21	7.41	580
14×4	0.8	1.7	19.6	23.7	4.61	827.7
14×6	0.8	1.7	21.8	26.3	3.08	1126.1
16×0.75	0.6	1.5	12.9	15.5	24.5	273.5
16×1.0	0.6	1.5	13.5	16.4	18.1	322.5
16×1.5	0.7	1.5	15.6	18.8	12.1	441.7
16×2.5	0.8	1.7	18.3	22.1	7.41	670.7
19×0.75	0.6	1.5	13.5	16.3	24.5	312.8
19×1.0	0.6	1.5	14.2	17.2	18.1	370.3
19×1.5	0.7	1.5	16.4	19.8	12.1	509.9
19×2.5	0.8	1.7	19.6	23.7	7.41	776.8
24×0.75	0.6	1.5	15.6	18.8	24.5	386.2
24×1.0	0.6	1.5	16.4	19.8	18.1	458.4
24×1.5	0.7	1.7	19.4	23.4	12.1	653
24×2.5	0.8	1.7	22.8	27.6	7.41	967.6
27×0.75	0.6	1.5	15.9	19.2	24.5	423.2
27×1.0	0.6	1.5	16.7	20.2	18.1	503.7
27×1.5	0.7	1.7	19.8	23.9	12.1	718.6
27×2.5	0.8	1.7	23.3	28.2	7.41	1069.6
30×0.75	0.6	1.7	16.4	19.8	24.5	478.4
30×1.0	0.6	1.7	17.5	21	18.1	568.3
30×1.5	0.7	1.7	20	24	12.1	786.7
30×2.5	0.8	1.7	24	28	7.41	1174.6
37×0.75	0.6	1.7	18	21.5	24.5	569.4
37×1.0	0.6	1.7	19	23	18.1	679.2
37×1.5	0.7	1.7	22	26.6	12.1	945.1
37×2.5	0.8	1.7	26.1	31.5	7.41	1419
