H03VH-H

Twin cable no sheathed cable manufacturer

Application

Suitable in dry locations for connections of portable electrical appliances submitted to weak strength. Permitted frequent bending, but no twisting; Suitable for radios, desk lamps, electric razors and similar household or office

Share This Page

ABC Cable / Aerial Bundled Cable

Airport Lighting Cable

Bare overhead conductor

Concentric Service Cable

Control Cable

Installation / Building Cable

Low Voltage Cable

Medium Voltage Cable

Solar Cable

Standards

TS 9760, IEC 60227, VDE 0281, BS 6004

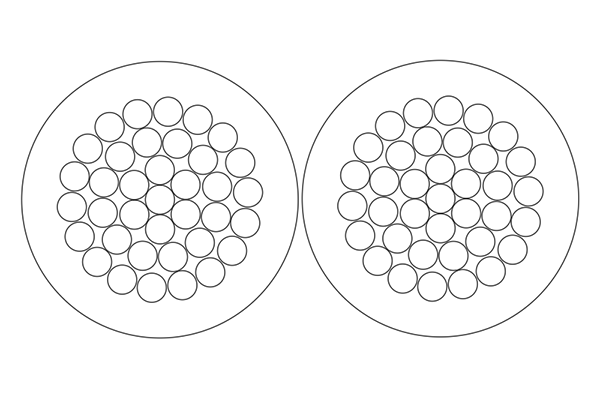

Construction

Conductor: Annealed copper, flexible stranded conductor acc. to EN 60228

Assembly: Two conductors lay in parallel.

Insulation：PVC type TI2

Characteristics

Rated voltages U0/U: 300/300V.
Note:
U0: Rated power-frequency voltage between conductor and earth or armour, metal sheath or screen for which the cable is suitable.
U: Rated power-frequency voltage between phase conductors for which the cable is suitable.
Maximum conductor operating temperature: +70℃
Maximum short circuit conductor temperature: +160℃
Test voltage: 2000V

Specifications

No. of cores x Nom. Cross section mm2	No. of strands No./mm	Dia. of strands mm	Nom. Overall diameter mm	Max. DC resistanceof conductor at 20℃ Ω/km
2×0.5	28	0.15	2.0×4.0	39
2×0.75	42	0.15	2.2×4.4	26
2×1.0	32	0.2	2.5×5.0	19.5
2×1.5	48	0.2	3.0×6.0	13.3
2×2.5	49	0.25	4.5×9.0	7.98
2×4.0	56	0.3	5.5×11	4.95
