H03V2V2-F

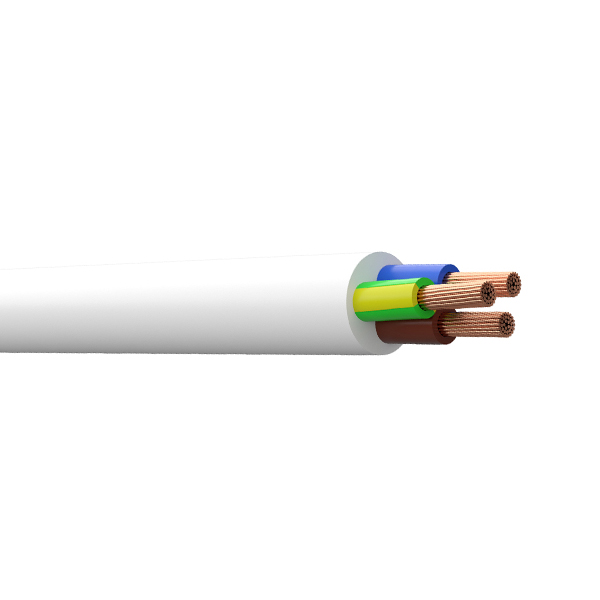

Copper Building Cable H03V2V2-F Cable

Application

In domestic premises, kitchens, and offices; in high ambient temperatures for household appliances, including in damp premises; for medium duties (eg. washing machines, spin dryers, and refrigerators).

Share This Page

ABC Cable / Aerial Bundled Cable

Airport Lighting Cable

Bare overhead conductor

Concentric Service Cable

Control Cable

Installation / Building Cable

Low Voltage Cable

Medium Voltage Cable

Solar Cable

Standards

DIN VDE 0281-5, BS 6500, HD 21.5, NF C 32-201-5, EN 50525-2-11

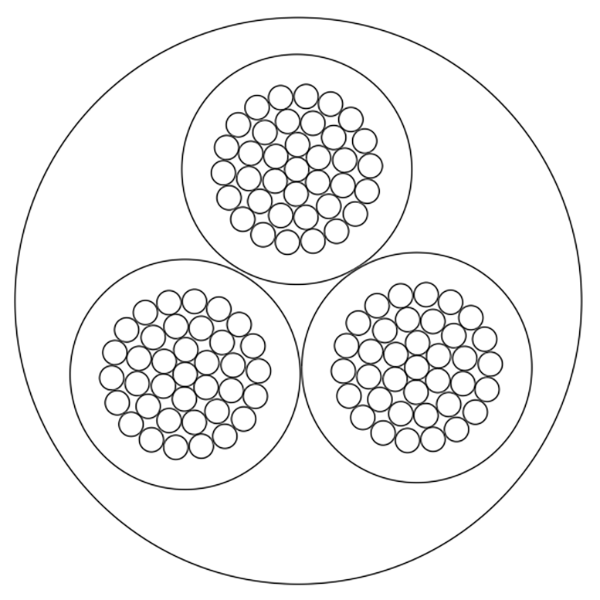

Construction

Conductor: Annealed copper, class 5 flexible conductor acc. to EN 60228

Insulation: heat resistant PVC 90℃ type TI3

Sheath：heat resistant PVC 90℃ type TM3

Color of insulation:
2-core: blue, brown
3-core: green-yellow, blue, brown
4-core: green-yellow, brown, black, grey
5-core: green-yellow, blue, brown, black, grey
Color of sheath：
white, black, grey or as customer required

Characteristics

Rated voltages U0/U: 300/300V.
Note:
U0: Rated power-frequency voltage between conductor and earth or armour, metal sheath or screen for which the cable is suitable.
U: Rated power-frequency voltage between phase conductors for which the cable is suitable.
Maximum conductor operating temperature: +90℃

Maximum short circuit conductor temperature: +260℃

Test voltage: 2000V

Specifications

No. of cores ×Nom. Cross section mm2	No. and dia. of strands No./mm	Mean overall diameter		Max. DC resistance of conductor at 20℃ Ω/km	Min. insulation resistance at 90℃ MΩ.km
No. of cores ×Nom. Cross section mm2	No. and dia. of strands No./mm	Lower limit mm	Upper limit mm	Max. DC resistance of conductor at 20℃ Ω/km	Min. insulation resistance at 90℃ MΩ.km
2×0.5	16/0.20	4.6	5.9	39	0.011
2×0.75	24/0.20	4.9	6.3	26	0.01
3×0.5	16/0.20	4.9	6.3	39	0.011
3×0.75	24/0.20	5.2	6.7	26	0.01
4×0.5	16/0.20	5.1	6.9	39	0.011
4×0.75	24/0.20	5.7	7.3	26	0.01
