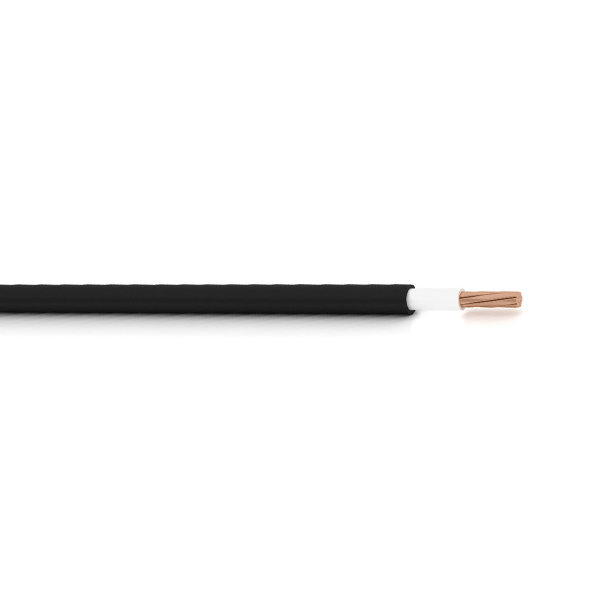

FAA L-824 Type C Unshielded 5kV Cable

Unshielded 5kV Cable FAA L-824 Type C for Airfield lighting systerms

Application

FAA L-824 Type C Unshielded 5kV Cable are used for interconnecting the transformers and the current regulator of airfield lighting systems in series circuits, suitable for fixed applications such as taxiways, runways, navigational aids, and obstruction lighting. They can be installed in conduit and direct burial.

Share This Page

ABC Cable / Aerial Bundled Cable

Airport Lighting Cable

Bare overhead conductor

Concentric Service Cable

Control Cable

Installation / Building Cable

Low Voltage Cable

Medium Voltage Cable

Solar Cable

Standards

FAA L-824 Type C ，ICEA S-96-659，NEMA WC71 .

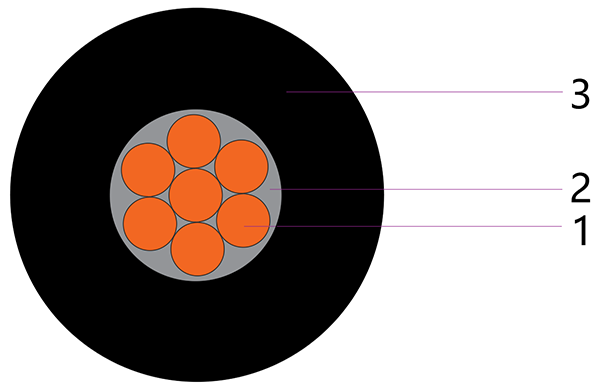

Construction

Conductor: Stranded bare copper to ASTM B3 and ASTM B8

Semi-Conductor layer : Semi-conductive extruded layer or Helically applied semi-conductive tape

Insulation: XLPE

Characteristics

Rated voltages U0/U: 5kV.
Note：U0 ：Rated power-frequency voltage between conductor and earth or armour, metal sheath or screen for which the cable is suitable.
U ：Rated power-frequency voltage between phase conductors for which the cable is suitable.
Temperature Rating: Fixed : -40℃~90℃
Maximum conductor temperature in normal operation:≤90℃
Test Voltage: 13kV 5min No Breakdown, according to ICEA S-96-659(NEMA WC71).
Max operating temperature of con. When cable short-circuited(5s maximum duration): 250℃.
Permissible minimum bending radius: 5 x OD.
Note: OD. =Overall Diameter of Cable

Specifications

Size AWG	Conductor		Insulation	Approx. Overall Diameter mm	Approx. Weight	Maximum Conductor DC Resistance 20℃ Ω/km
Size AWG	Structure No.	Approx.OD. mm	Nominal Thickness mm	Approx. Overall Diameter mm	CU kg/km	Maximum Conductor DC Resistance 20℃ Ω/km
1×8	7/19	3.69	2.79	9.65	132	2.144
1×6	7/19	4.68	2.79	10.67	186	1.348
1×4	7/19	5.88	2.79	11.68	268	0.8481
