Aluminum Conductors Steel Reinforced (ACSR)

Aluminium Conductors Steel Reinforced (ACSR)

Xinfeng Cable Supply Bare ACSR conductor to all standards in the world

Application

ACSR conductors are widely used for electrical power transmission over long distances, since they are ideal for long overhead lines spans. They are also used as a messenger for supporting overhead electrical cables.

Share This Page

ABC Cable / Aerial Bundled Cable

Airport Lighting Cable

Bare overhead conductor

Concentric Service Cable

Control Cable

Installation / Building Cable

Low Voltage Cable

Medium Voltage Cable

Solar Cable

Standards

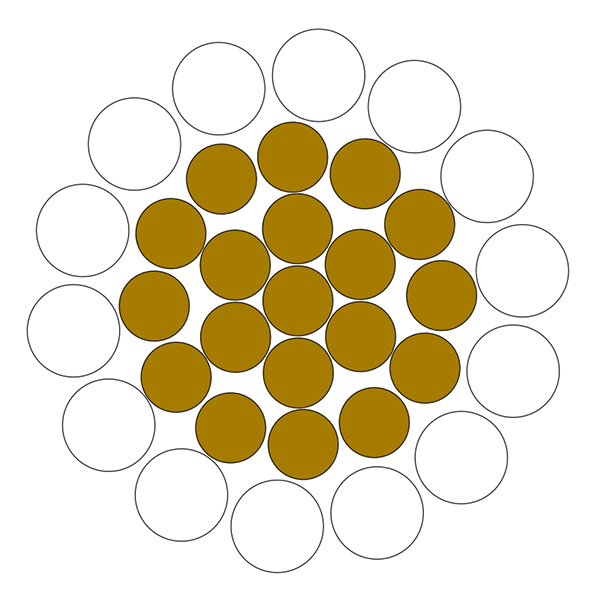

Construction

Seismic Acceleration: 0.12 – 0.05g

Ambient Temperature: -5°C – 50°C

Wind Pressure: 80 – 130kg/m2

Isokeraunic Level: 10 – 18

Relative Humidity: 5 – 100%+A8:J13

Characteristics

Specifications

Aluminum conductors steel reinforced (ACSR)-GB/T1179-2008

Nominal cross sectional area Aluminum/ steel mm²/mm²	Steel ratio %	Code	Actual cross-sectional area mm2	No./Diameter of single wire		Nominal outer diameter		Approximate weight of cable kg/km	Maximum DC resistance at 20℃ Ω/km
Nominal cross sectional area Aluminum/ steel mm²/mm²	Steel ratio %	Code	Aluminum/ steel mm²/mm²	Aluminum no./mm	Steel no./mm	Steel core mm	Stranded diameter mm	Approximate weight of cable kg/km	Maximum DC resistance at 20℃ Ω/km
16/3	17	16	16/2.67	6/1.84	1/1.84	1.84	5.53	64.6	1.7934
25/4	17	25	25/4.17	6/2.30	1/2.30	2.3	6.91	100.9	1.1478
40/6	17	40	40/6.67	6/2.91	1/2.91	2.91	8.74	161.5	0.7174
65/10	17	63	63/10.5	6/3.66	1/3.66	3.66	11	254.4	0.4555
100/17	17	100	100/16.7	6/4.61	1/4.61	4.61	13.8	403.8	0.2869
125/7	6	125	125/6.94	18/2.97	1/2.97	2.97	14.9	397.9	0.2304
125/20	16	125	125/20.4	26/2.47	7/1.92	5.77	15.7	503.9	0.231
160/9	6	160	160/8.89	18/3.36	1/3.36	3.36	16.8	509.3	0.18
160/26	16	160	160/26.1	26/2.80	7/2.18	6.53	17.7	644.9	0.1805
200/11	6	200	200/11.1	18/3.76	1/3.76	3.76	18.8	636.7	0.144
200/32	16	200	200/32.6	26/3.13	7/2.43	7.3	19.8	806.2	0.1444
250/25	10	250	250/24.6	22/3.80	7/2.11	6.34	21.6	880.6	0.1154
250/40	16	250	250/40.7	26/3.50	7/2.72	8.16	22.2	1007.7	0.1155
315/22	7	315	315/21.8	45/2.99	7/1.99	5.97	23.9	1039.6	0.0917
315/50	16	315	315/51.3	26/3.93	7/3.05	9.16	24.9	1269.7	0.0917
400/28	7	400	400/27.7	45/3.36	7/2.24	6.73	26.9	1320.1	0.0722
400/50	13	400	400/51.9	54/3.07	7/3.07	9.21	27.6	1510.3	0.0723
450/30	7	450	450/31.1	45/3.57	7/2.38	7.14	28.5	1485.2	0.0642
450/60	13	450	450/58.3	54/3.26	7/3.26	9.77	29.3	1699.1	0.0643
500/35	7	500	500/34.6	45/3.76	7/2.51	7.52	30.1	1650.2	0.0578
500/65	13	500	500/64.8	54/3.43	7/3.43	10.3	30.9	1887.9	0.0578
560/40	7	560	560/38.7	45/3.98	7/2.65	7.96	31.8	1848.2	0.0516
560/70	13	560	560/70.9	54/3.63	19/2.18	10.9	32.7	2103.4	0.0516
630/45	7	630	630/43.6	45/4.22	7/2.81	8.44	33.8	2079.2	0.0459
630/80	13	630	630/79.8	54/3.85	19/2.31	11.6	34.7	2366.3	0.0459
710/50	7	710	710/49.1	45/4.48	7/2.99	8.96	35.9	2343.2	0.0407
710/90	13	710	710/89.9	54/4.09	19/2.45	12.3	36.8	2666.8	0.0407
800/35	4	800	800/34.6	72/3.76	7/2.51	7.52	37.6	2480.2	0.0361
800/65	8	800	800/66.7	84/3.48	7/3.48	10.4	38.3	2732.7	0.0362
800/100	13	800	800/101	54/4.34	19/2.61	13	39.1	3004.9	0.0362
900/40	4	900	900/38.9	72/3.99	7/2.66	7.98	39.9	2790.2	0.0321
900/75	8	900	900/75.0	84/3.69	7/3.69	11.1	40.6	3074.2	0.0322
1000/45	4	1000	1000/43.2	72/4.21	7/2.80	8.41	42.1	3100.3	0.0289
1120/50	4	1120	1120/47.3	72/4.45	19/1.78	8.9	44.5	3464.9	0.0258
1120/90	8	1120	1120/91.2	84/4.12	19/2.47	12.4	45.3	3811.5	0.0258
1250/50	4	1250	1250/52.8	72/4.70	19/1.88	9.4	47	3867.1	0.0231
1250/100	8	1250	1250/102	84/4.35	19/2.61	13.1	47.9	4253.9	0.0232

Aluminum conductors steel reinforced (ACSR)-DIN 48204 standard

Nominal cross- sectional area mm²	No. and Diameter of single wire		Overall Diameter mm	Approximate weight			Maximum DC resistance at 20℃ kN	Maximum DC Resistance at 20℃ Ω/km
Nominal cross- sectional area mm²	Aluminum No./mm	Steel No./mm	Overall Diameter mm	Al kg/km	Steel kg/km	Total kg/km	Maximum DC resistance at 20℃ kN	Maximum DC Resistance at 20℃ Ω/km
16/3	6/1.80	1/1.80	5.4	42	20	62	5.81	1.879
25/4	6/2.25	1/2.25	6.75	65	31	96	9.02	1.203
35/6	6/2.7	1/2.7	8.1	94	45	139	12.7	0.8353
44/32	14/2.0	7/2.4	11.2	122	248	370	45.46	0.6573
50/8	6/3.2	1/3.2	9.6	132	63	195	17.18	0.5946
50/30	12/2.33	7/2.33	11.65	141	234	375	44.28	0.5644
70/12	26/1.85	7/1.44	11.72	193	89	282	26.31	0.413
95/15	26/2.15	7/1.67	13.61	260	120	380	35.17	0.3058
95/55	12/3.2	7/3.2	16	266	441	707	80.2	0.2992
105/75	14/3.1	19/2.25	17.45	292	594	886	106.69	0.2736
120/20	26/2.44	7/1.9	15.46	335	156	491	44.94	0.2374
120/70	12/3.6	7/3.6	18	337	558	895	98.16	0.2364
125/30	30/2.33	7/2.33	16.31	353	234	587	57.86	0.2259
150/25	26/2.7	7/2.1	17.1	411	190	601	54..37	0.1939
170/40	30/2.7	7/2.7	18.9	474	314	788	77.01	0.1682
185/30	26/3.0	7/2.33	18.99	507	234	741	66.28	0.1571
210/35	26/3.2	7/2.49	20.27	577	267	844	74.94	0.138
210/50	30/3.0	7/3.0	21	585	388	973	92.25	0.1363
230/30	24/3.5	7/2.33	20.99	636	234	870	73.09	0.1249
240/40	26/3.45	7/2.68	21.84	670	309	979	86.46	0.1188
265/35	24/3.74	7/2.49	22.43	727	267	994	82.94	0.1094
300/50	26/3.86	7/3.0	24.44	839	388	1227	105.09	0.09487
305/40	54/2.68	7/2.68	24.12	841	309	1150	99.3	0.0949
340/30	48/3.0	7/2.33	24.99	936	234	1170	92.56	0.08513
380/50	54/3.0	7/3.0	27	1054	388	1442	120.91	0.07573
385/35	48/3.2	7/2.49	26.67	1065	267	1332	104.31	0.07482
435/55	54/3.2	7/3.2	28.8	1199	441	1640	136.27	0.06656
450/40	48/3.45	7/2.68	28.74	1238	309	1547	120.19	0.06437
490/65	54/3.4	7/3.4	30.6	1354	498	1852	152.85	0.05896
495/35	45/3.74	7/2.49	29.91	1364	267	1631	120.31	0.05843
510/45	48/3.68	7/2.87	30.69	1409	355	1764	134.33	0.05657
550/70	54/3.6	7/3.6	32.4	1518	558	2076	167.42	0.05259
560/50	48/3.86	7/3.0	32.16	1550	388	1938	146.28	0.05142
570/40	45/4.02	7/2.68	32.16	1576	309	1885	137.98	0.05057
650/45	45/4.3	7/2.87	34.41	1803	355	2155	155.52	0.0442
680/85	54/4.0	19/2.4	36	1874	676	2550	209.99	0.0426
1045/45	72/4.3	7/2.87	43.01	2889	355	3244	217.87	0.02766

Aluminum conductor steel reinforced (ACSR)-ASTM B232 Standard

Code	Size AWG or MCM or KCMIL	No./Diameter of single wire		Nominal Overall Diameter mm	Approximate weight			Rated Strength Kn	Maximum DC Resistance at 20℃ Ω/km
Code	Size AWG or MCM or KCMIL	Aluminum mm	Steel mm	Nominal Overall Diameter mm	Aluminum kg/km	Steel kg/km	Total kg/km	Rated Strength Kn	Maximum DC Resistance at 20℃ Ω/km
Turkey	6	6/1.68	1/1.68	5.04	36	17	54	5.29	2.1586
Swan	4	6/2.12	1/2.12	6.36	58	27	85	8.28	1.3557
Swanate	4	7/1.96	1/2.61	6.53	58	42	100	10.5	1.3557
Swallow*	3	6/2.38	1/2.38	7.14	73	35	108	10.21	1.07124
Sparrow	2	6/2.67	1/2.67	8.01	92	44	136	12.68	0.8535
Sparate*	2	7/2.47	1/3.30	8.24	92	67	159	16.11	0.8535
Robin	1	6/3.00	1/3.00	9	116	55	171	15.79	0.6767
Raven	1/0	6/3.37	1/3.37	10.11	147	69	216	19.49	0.5364
Quail	2/0	6/3.78	1/3.78	11.34	185	87	272	23.62	0.4255
Pigeion	3/0	6/4.25	1/4.25	12.75	233	110	343	29.45	0.3373
Penguin	4/0	6/4.77	1/4.77	14.31	294	139	433	37.15	0.2675
Waxwing	266.8	18/3.09	1/3.09	15.45	372	58	430	30.61	0.2133
Partridge	266.8	26/2.57	7/2.00	16.28	374	172	546	50.27	0.2143
Ostrich	300	26/2.73	7/2.12	17.28	420	193	613	56.5	0.1906
Merlin	336.4	18/3.47	1/3.47	17.35	469	74	543	38.62	0.1691
Linnet	336.4	26/2.89	7/2.25	18.31	471	217	687	62.73	0.1699
Oriole	336.4	30/2.69	7/2.69	18.83	473	311	783	76.97	0.1704
Chickadee	397.5	18/3.77	1/3.77	18.85	554	87	641	44.22	0.1431
Brant	397.5	24/3.27	7/2.18	19.61	557	204	761	64.96	0.1438
Ibis	397.5	26/3.14	7/2.44	19.88	558	256	814	72.52	0.1438
Lark	397.5	30/2.92	7/2.92	20.44	560	367	927	90.31	0.1442
Pelican	477	18/4.12	1/4.14	20.7	668	105	773	52.5	0.1193
Flicker	477	24/3.58	7/2.39	21.49	669	245	914	76.52	0.1199
Hawk	477	26/3.44	7/2.67	21.79	669	306	975	86.76	0.1199
Hen	477	30/3.20	7/3.20	22.4	670	440	1110	105.9	0.1201
Osprey	556.5	18/4.47	1/4.47	22.35	779	122	901	60.95	0.1022
Parakeet	556.5	24/3.87	7/2.58	23.22	783	286	1069	88.01	0.1027
Dove	556.5	26/3.72	7/2.89	23.55	783	359	1142	100.5	0.1027
Eagle	556.5	30/3.46	7/3.46	24.21	784	515	1298	123.6	0.103
Peacock	605	24/4.03	7/2.69	24.2	849	311	1160	96.01	0.0945
Squab	605	26/3.87	7/3.01	24.51	848	389	1237	108	0.0945
Wood Duck	605	30/3.16	7/3.61	25.25	853	560	1413	128.5	0.0947
Teal	605	30/3.61	19/2.16	25.24	853	545	1398	133.4	0.0947
Kingbird	636	18/4.78	1/4.78	23.88	891	140	1031	69.79	0.08945
Rook	636	24/4.14	7/2.76	24.84	896	327	1223	100.83	0.08989
Grosbeak	636	26/3.97	7/3.09	25.15	892	410	1302	111.8	0.08989
Scoter	636	30/3.70	7/3.70	25.88	897	588	1485	135.44	0.09011
Egret	636	30/3.70	19/2.22	25.9	897	576	1473	140.3	0.09011
Swift	636	36/3.38	1/3.38	23.62	888	70	958	60.85	0.0889
Flamingo	666.6	24/4.23	7/2.82	25.4	935	342	1277	105.3	0.08577
Gannet	666.6	26/4.07	7/3.16	25.76	938	429	1367	117.3	0.08577
Stilt	715.5	24/4.39	7/2.92	26.31	1007	366	1373	113.3	0.07989
Starling	715.5	26/4.21	7/3.28	26.68	1004	462	1466	126.2	0.07989
Redwing	715.5	30/3.92	19/2.35	27.43	1006	645	1651	153.8	0.08009
Tern	795	45/3.38	7/2.25	27.03	1120	217	1337	98.23	0.07191
Condor	795	54/3.08	7/3.08	27.72	1116	407	1523	125.3	0.07911
Cuckoo	795	24/4.62	7/3.08	27.74	1116	407	1523	123.94	0.07191
Drake	795	26/4.44	7/3.45	28.11	1116	511	1627	139.92	0.07191
Coot	795	36/3.77	1/3.77	26.41	1110	88	1198	74.85	0.07156
Mallard	795	30/4.14	19/2.48	28.96	1122	718	1840	171.18	0.07208
Ruddy	900	45/3.59	7/2.40	28.73	1268	247	1510	109.31	0.06351
Canary	900	54/3.28	7/3.28	29.52	1265	462	1727	140.95	0.06351
Rail	954	45/3.70	7/2.47	29.61	1342	262	1604	115.85	0.05992
Catbird	954	36/4.14	1/4.14	28.95	1333	105	1438	87.66	0.05962
Cardinal	954	54/3.38	7/3.38	30.42	1343	491	1834	149.36	0.05992
Orlan	1033.5	45/3.85	7/2.57	30.81	1453	283	1736	123.1	0.05331
Tanager	1033.5	36/4.30	1/4.30	30.12	1443	113	1556	94.93	0.05504
Curlew	1033.5	54/3.52	7/3.52	31.68	1451	530	1981	161.8	0.05531
Bluejay	1113	45/4.00	7/2.66	31.98	1568	304	1872	132.63	0.05136
Finch.	1113	54/3.65	19/2.19	32.85	1574	560	2134	174.41	0.05161
Bunting	1192.5	48/4.14	7/2.76	33.12	1680	327	2007	141.79	0.04793
Grackle	1192.5	54/3.77	19/2.27	33.97	1680	601	2281	186.78	0.04817
Bittern	1272	45/4.27	7/2.85	34.17	1787	349	2136	151.48	0.04494
Pheasant	1272	54/3.90	19/2.34	35.1	1797	640	2437	194	0.04516
Skylark	1272	36/4.78	1/4.78	33.42	1777	140	1917	115.85	0.04472
Dipper	1351.5	45/4.40	7/2.92	35.16	1897	366	2263	160.7	0.0423
Martin	1351.5	54/4.02	19/2.41	36.17	1910	678	2588	206.05	0.0425
Bobolink	1431	45/4.53	7/3.02	36.24	2011	392	2403	170.71	0.03994
Plover	1431	54/4.14	19/2.48	37.24	2025	719	2744	218.24	0.04013
Nuthatch	1510.5	45/4.65	7/3.10	37.2	2119	413	2532	177.89	0.03784
Parrot	1510.5	54/4.25	19/2.55	38.25	2134	760	2894	230.2	0.03802
Lapwing	1590	45/4.77	7/3.18	38.16	2232	435	2667	187.02	0.03595
Falcon	1590	54/4.36	19/2.62	39.26	2230	808	3038	242.55	0.03613
Chukar	1780	84/3.70	19/2.22	40.7	2516	576	3092	226.85	0.03245
BlueBird	2156	84/4.07	19/2.44	44.76	3036	697	3733	268.3	0.02681
Kiwi	2156	72/4.41	7/2.94	44.07	3057	370	3427	221.6	0.02684
Thrasher	2312	76/4.43	19/2.09	45.9	3256	511	3767	253	0.02478

Aluminum conductor steel reinforced (ACSR)-ASTM B232 standard

Code	Size AWG	No./Diameter of single wire		Nominal Overall Diameter mm	Approximate weight			Rated Strength Kn	Maximum DC Resistance at 20℃ Ω/km
Code	Size AWG	Aluminum mm	Steel mm	Nominal Overall Diameter mm	Aluminum kg/km	Steel kg/km	Total kg/km	Rated Strength Kn	Maximum DC Resistance at 20℃ Ω/km
Grouse	80	8/2.54	1/4.24	9.32	111	110	221	23.6	0.7115
Petrel	101.8	12/2.34	7/2.34	11.71	143	235	378	47.15	0.5613
Minorca	110.8	12/2.44	7/2.44	12.22	155	256	411	51.25	0.5161
Leghorn	134.6	12/2.69	7/2.69	13.46	189	311	500	61.7	0.4248
Guinea	159	12/2.92	7/2.92	14.63	223	367	590	72.55	0.3595
Dotterel	176.9	12/3.08	7/3.08	15.42	248	408	656	78.5	0.3237
Dorking	190.8	12/3.20	7/3.20	16.03	267	440	707	84.8	0.2995
Brahma	203.2	16/2.86	19/2.48	18.12	285	718	1003	128.8	0.2813
Cochin	211.3	12/3.37	7/3.37	16.84	296	488	784	93.9	0.2705

Aluminum conductor steel reinforced (ACSR)-BS 215 Part 2 Standard

Code	Nominal Section Area mm2	Stranding Structure No./Diameter		Area	Diameter	Approximate weight	Maximum DC Resistance at 20℃ Ω/km	Rated Strength kN
Code	Nominal Section Area mm2	AL mm	Steel mm	Total mm2	Conductor mm	Total kg/km	Maximum DC Resistance at 20℃ Ω/km	Rated Strength kN
Mole	10	6/1.50	1/1.50	12.3	4.5	43	2.707	4.27
Squirrel	20	6/2.11	1/2.11	24.4	6.33	85	1.368	8.18
Gopher	25	6/2.36	1/2.36	30.6	7.08	106	1.093	10.05
Weasel	30	6/2.59	1/2.59	36.8	7.77	128	0.9077	11.88
Fox	35	6/2.79	1/2.79	42.7	8.37	149	0.7823	13.79
Ferret	40	6/3.00	1/3.00	49.4	9	171	0.6766	15.79
Rabbit	50	6/3.35	1/3.35	61.6	10.05	214	0.5426	19.26
Mink	60	6/3.66	1/3.66	73.6	10.98	255	0.4545	22.11
Skunk	60	12/2.59	7/2.59	100	12.95	464	0.4568	56.49
Beaver	70	6/3.99	1/3.99	87.5	11.97	303	0.3825	25.93
Horse	70	12/2.79	7/2.79	116	13.95	538	0.3936	64.94
Racoon	75	6/4.10	1/4.10	92.4	12.3	320	0.3622	27.44
Otter	75	6/4.22	1/4.22	97.9	12.66	339	0.3419	29.05
Cat	80	6/4.50	1/4.50	111	16.5	386	0.3077	33.05
Hare	90	6/4.72	1/4.72	122	14.16	425	0.2733	36.34
Dog	100	6/4.72	7/1.57	118	14.15	394	0.2733	33.76
Hyena	100	7/4.39	7/1.93	126	14.57	453	0.2728	42.48
Cougar	100	8/3.05	1/3.05	138	15.25	419	0.219	30.16
Leopard	125	6/5.28	7/1.75	148	15.81	493	0.2184	42.26
Tiger	125	30/2.36	7/2.36	161	16.52	603	0.2203	60.05
Dingo	125	18/3.35	1/3.35	167	16.75	506	0.1814	35.94
Wolf	150	30/2.59	7/2.59	195	18.13	726	0.1828	71.61
Caracal	150	18/3.61	1/3.61	194	18.05	587	0.1563	35.94
Lynx	175	30/2.79	7/2.79	226	19.53	842	0.1576	82.73
Jaguar	200	18/3.86	1/3.86	222	19.3	671	0.1367	40.52
Panther	200	30/3.00	7/3.00	261	21	974	0.1362	95.19
Lion	225	30/3.18	7/3.18	293	22.26	1095	0.1213	104.5
Bear	250	30/3.35	7/3.35	326	23.45	1214	0.1093	115.6
Goat	300	30/3.71	7/3.71	400	25.97	1489	0.08911	136.1
Sheep	350	30/3.99	7/3.99	426	27.93	1723	0.07704	155.7
Antelop	350	54/2.97	7/2.97	422	26.73	1414	0.07727	118.8
Bison	350	54/3.00	7/3.00	431	27	1443	0.07573	121.4
Deer	400	30/4.27	7/4.27	529	29.89	1972	0.06727	178.8
Zebra	400	54/3.18	7/3.18	484	28.62	1622	0.0674	133.4
Elk	450	30/4.50	7/4.50	588	31.5	2190	0.06067	198.4
Camellia	450	54/3.35	7/3.35	537	30.15	1799	0.06073	148.1
Moose	500	54/3.53	7/3.53	597	31.77	1998	0.0547	164.6

Aluminum Conductor Steel Reinforced (ACSR)-BS EN 50182 Standard

Code	Nominal Section Area mm2	Area			Diameter	Approximate weight	Maximum DC Resistance at 20℃ Ω/km
Code	Nominal Section Area mm2	AL mm2	Steel mm2	Total mm2	Conductor mm	Total kg/km	Maximum DC Resistance at 20℃ Ω/km
Mole	10	10.6	1.77	12.3	4.5	43	2.707
Squirrel	20	20.98	3.5	24.4	6.33	85	1.368
Fox	35	36.88	6.11	42.7	8.37	149	0.7823
Mink	60	63.13	10.52	73.6	10.98	255	0.4545
Skunk	60	63.22	36.88	100	12.95	464	0.4568
Beaver	70	75.02	12.5	87.5	11.97	303	0.3825
Racoon	75	79.22	13.2	92.4	12.3	320	0.3622
Otter	75	83.92	13.99	97.9	12.66	339	0.3419
Cat	80	95.43	15.9	111	16.5	386	0.3077
Hare	90	105	17.5	122	14.16	425	0.2733
Coyote	125	131.7	20.1	151.8	15.89	522	0.2192
Cougar	100	131.5	7.31	138	15.25	419	0.219
Tiger	125	131.2	30.62	161	16.52	603	0.2203
Lion	225	238.3	55.6	293	22.26	1095	0.1213
Bear	250	264.4	61.7	326	23.45	1214	0.1093
Goat	300	324.3	75.67	400	25.97	1489	0.08911
Sheep	350	375.1	87.53	426	27.93	1723	0.07704
Antelop	350	374.1	48.5	422	26.73	1414	0.07727
Bison	350	381.7	49.48	431	27	1443	0.07573
Deer	400	429.6	100.2	529	29.89	1972	0.06727
Elk	450	477.1	113.3	588	31.5	2190	0.06067
Camel	450	476	61.7	537	30.15	1799	0.06073
Moose	500	528.5	68.51	597	31.77	1998	0.0547
