Conducting The Energy - Xinfeng Cable
All Aluminum Alloy Conductors (AAAC)
Overhead Transmission AAAC Bare Conductors
Application
AAAC is mainly used as bare overhead transmission cable and as primary and secondary distribution cable. It is also suitable for laying across basins, rivers and valleys where special geographical features exist.
Share This Page
Standards
Construction

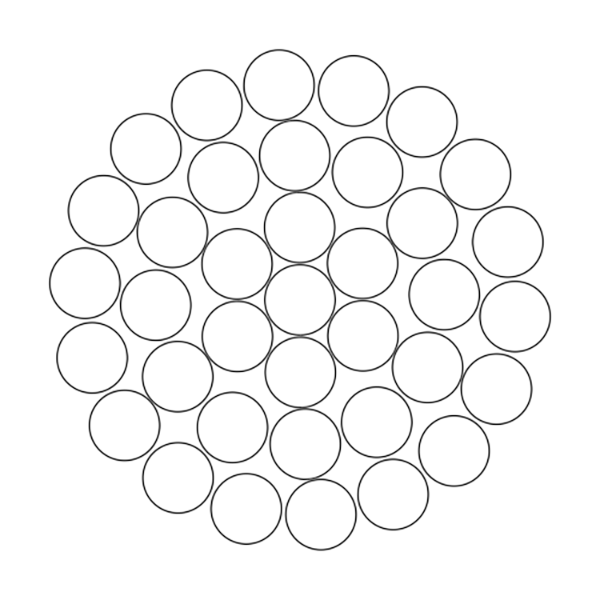

AAAC cable consists of aluminum alloy wires. The aluminum alloy wires are concentrically stranded.
This section deals with heat-treatable magnesium silicon type aluminium alloys to the applicable International Standard, the electrical and mechanical properties of which all fall within the values suggested by relevant standard.
Conductors to all other recognized specifications can also be supplied. The alloys referred to have higher strength but lower conductivity than pure aluminium.
Being lighter, alloy conductors can sometimes be used to advantage in place of the more conventional ACSR; Having lower breaking loads than the later, their use becomes particularly favorable when ice and wind loadings are low.
Characteristics
Electrical Properties
- Density at 20℃: 2.703 kg/dm3
- Temperature Coefficient at 20°C: 0.00360 (°C)
- Resistivity at 20°C: 0.03260Ω•mm2/m
- Coefficient of linear expansion: 23 x10-6 (°C)
Service Conditions
- Seismic Acceleration: 0.12 – 0.05g
- Ambient Temperature: -5°C – 50°C
- Wind Pressure: 80 – 130kg/m2
- Isokeraunic Level: 10 – 18
- Relative Humidity: 5 – 100%
Specifications
All Aluminium Alloy Conductors AAAC to IEC 61089 Standard
| Nominal cross-sectional area mm2 |
Actual cross-sectional area mm2 |
Number of strands | Diameter | Approximate weight of cable kg/km |
Nominal Breaking Load kN |
Maximum DC Resistance at 20℃ Ω/km |
|
| Single wire mm |
Conductor mm |
||||||
| 16 | 18.6 | 7 | 1.84 | 5.52 | 50.8 | 6.04 | 1.7896 |
| 25 | 29.0 | 7 | 2.30 | 6.90 | 79.5 | 9.44 | 1.1453 |
| 40 | 46.5 | 7 | 2.91 | 8.72 | 127.1 | 15.10 | 0.7158 |
| 63 | 73.2 | 7 | 3.65 | 10.9 | 200.2 | 23.06 | 0.4545 |
| 100 | 116 | 19 | 2.79 | 14.0 | 319.3 | 37.76 | 0.2877 |
| 125 | 145 | 19 | 3.12 | 15.6 | 399.2 | 47.20 | 0.2302 |
| 160 | 186 | 19 | 3.53 | 17.6 | 511.0 | 58.56 | 0.1798 |
| 200 | 232 | 19 | 3.95 | 19.7 | 638.7 | 73.20 | 0.1439 |
| 250 | 290 | 19 | 4.41 | 22.1 | 798.4 | 91.50 | 0.1151 |
| 315 | 366 | 37 | 3.55 | 24.8 | 1008.4 | 115.29 | 0.0913 |
| 400 | 465 | 37 | 4.00 | 28.0 | 1280.5 | 146.40 | 0.0721 |
| 450 | 523 | 37 | 4.24 | 29.7 | 1440.5 | 164.70 | 0.0641 |
| 500 | 581 | 37 | 4.47 | 31.3 | 1600.6 | 183.00 | 0.0577 |
| 560 | 651 | 61 | 3.69 | 33.2 | 1795.3 | 204.96 | 0.0516 |
| 630 | 732 | 61 | 3.91 | 35.2 | 2019.8 | 230.58 | 0.0458 |
| 710 | 825 | 61 | 4.15 | 37.3 | 2276.2 | 259.86 | 0.0407 |
| 800 | 930 | 61 | 4.40 | 39.6 | 2564.8 | 292.80 | 0.0361 |
| 900 | 1046 | 91 | 3.83 | 42.1 | 2888.3 | 329.40 | 0.0321 |
| 1000 | 1162 | 91 | 4.03 | 44.4 | 3209.3 | 366.00 | 0.0289 |
| 1120 | 1301 | 91 | 4.27 | 46.9 | 3594.4 | 409.92 | 0.0258 |
All Aluminium Alloy Conductors (AAAC) to DIN 48201-6 Standard
| Nominal cross-sectional area mm2 |
Actual cross-sectional area mm2 |
Number of strands | Diameter | Approximate weight of cable kg/km |
Nominal Breaking Load kN |
Maximum DC Resistance at 20℃ Ω/km |
|
| Single wire mm |
Conductor mm |
||||||
| 16 | 15.89 | 7 | 1.70 | 5.1 | 43 | 444 | 2.0910 |
| 25 | 24.25 | 7 | 2.10 | 6.3 | 66 | 677 | 1.3703 |
| 35 | 34.36 | 7 | 2.50 | 7.5 | 94 | 960 | 0.9669 |
| 50 | 49.48 | 7 | 3.00 | 9.0 | 135 | 1382 | 0.6714 |
| 50 | 48.35 | 19 | 1.80 | 9.0 | 133 | 1350 | 0.6905 |
| 70 | 65.81 | 19 | 2.10 | 10.5 | 181 | 1838 | 0.5073 |
| 95 | 93.27 | 19 | 2.50 | 12.5 | 256 | 2605 | 0.3579 |
| 120 | 116.99 | 19 | 2.80 | 14.0 | 322 | 3268 | 0.2854 |
| 150 | 147.11 | 37 | 2.25 | 15.8 | 406 | 4109 | 0.2274 |
| 185 | 181.62 | 37 | 2.50 | 17.5 | 500 | 5073 | 0.1842 |
| 240 | 242.54 | 61 | 2.25 | 20.3 | 670 | 6774 | 0.1383 |
| 300 | 299.43 | 61 | 2.50 | 22.5 | 827 | 8363 | 0.1120 |
| 400 | 400.14 | 61 | 2.89 | 26.0 | 1104 | 11176 | 0.0838 |
| 500 | 499.63 | 61 | 3.23 | 29.1 | 1379 | 13960 | 0.06709 |
| 625 | 626.20 | 91 | 2.96 | 32.6 | 1732 | 17490 | 0.0540 |
| 800 | 802.09 | 91 | 3.35 | 36.9 | 2218 | 22402 | 0.0418 |
| 1000 | 999.71 | 91 | 3.74 | 41.1 | 2767 | 27922 | 0.0335 |
All Aluminium Alloy Conductors(AAAC) to ASTM B 399 Standard
| Conductor size | No./Diameter of single wire | Approximate overall diameter of cable mm |
Approximate weight of cable kg/km |
Nominal Breaking Load kN |
Maximum DC Resistance at 20℃ Ω/km |
|
| AWG or MCM | mm2 | |||||
| 6 | 13.3 | 7/1.55 | 4.67 | 36.89 | 4.22 | 2.5199 |
| 4 | 21.14 | 7/1.96 | 5.89 | 57.89 | 6.71 | 1.586 |
| 2 | 33.65 | 7/2.47 | 7.42 | 92.14 | 10.69 | 0.9987 |
| 1/0 | 53.49 | 7/3.12 | 9.35 | 146.5 | 16.98 | 0.6259 |
| 2/0 | 67.45 | 7/3.50 | 10.52 | 184.7 | 20.48 | 0.4974 |
| 3/0 | 85 | 7/3.93 | 11.79 | 232.7 | 25.88 | 0.3945 |
| 4/0 | 107.2 | 7/4.42 | 13.26 | 293.7 | 32.67 | 0.3119 |
| 250 | 126.7 | 19/2.91 | 14.58 | 346.9 | 38.97 | 0.2651 |
| 300 | 152.1 | 19/3.19 | 15.89 | 418.6 | 46.77 | 0.2206 |
| 350 | 177.3 | 19/3.46 | 17.25 | 485.5 | 52.26 | 0.1886 |
| 400 | 202.7 | 19/3.69 | 18.44 | 555.1 | 59.76 | 0.1649 |
| 450 | 228 | 19/3.91 | 19.56 | 624.4 | 67.25 | 0.1468 |
| 500 | 253.4 | 19/4.12 | 20.6 | 693.6 | 74.65 | 0.1322 |
| 550 | 278.7 | 37/3.10 | 21.67 | 762.9 | 83.84 | 0.12 |
| 600 | 304 | 37/3.23 | 22.63 | 832 | 91.43 | 0.1105 |
| 650 | 329.4 | 37/3.37 | 23.57 | 909.8 | 99.03 | 0.1015 |
| 700 | 354.5 | 37/3.49 | 24.46 | 910.6 | 101.93 | 0.09464 |
| 750 | 380.2 | 37/3.62 | 25.32 | 1041 | 109.92 | 0.08796 |
| 800 | 405.4 | 37/3.73 | 26.14 | 1109 | 116.91 | 0.08285 |
| 900 | 456.3 | 37/3.96 | 27.74 | 1249 | 131.91 | 0.07351 |
| 1000 | 506.7 | 37/4.18 | 29.24 | 1388 | 145.89 | 0.06597 |
| 1250 | 633.3 | 61/3.63 | 32.67 | 1733 | 179.87 | 0.05306 |
| 1500 | 760 | 61/3.98 | 35.82 | 2081 | 216.84 | 0.04414 |
| 1750 | 886.7 | 61/4.30 | 38.7 | 2429 | 252.82 | 0.03781 |
All Aluminium Alloy Conductors(AAAC) to ASTM B 399 Standard
| Code | Conductor size | No./Diameter of single wire | Approximate overall diameter of cable mm |
Approximate weight of cable kg/km |
Nominal Breaking Load kN |
Maximum DC Resistance at 20℃ Ω/km |
|
| AWG or MCM | mm2 | ||||||
| Akron | 30.58 | 15.48 | 7/1.68 | 5.04 | 42.68 | 4.92 | 2.1556 |
| Alton | 48.69(4) | 24.67 | 7/2.12 | 6.35 | 67.56 | 7.83 | 1.3557 |
| Amas | 77.47(2) | 39.26 | 7/2.67 | 8.02 | 107.5 | 12.5 | 0.8547 |
| Azusa | 123.3(1/0) | 62.46 | 7/3.37 | 10.11 | 171 | 19.79 | 0.5365 |
| Anahelm | 155.4(2/0) | 78.75 | 7/3.78 | 11.35 | 215.16 | 23.98 | 0.4264 |
| Amherst | 195.7(3/0) | 99.2 | 7/4.25 | 12.75 | 271.5 | 30.17 | 0.3373 |
| Altiance | 246.9(4/0) | 125.1 | 7/4.77 | 14.3 | 342.6 | 38.07 | 0.2678 |
| Butte | 312.8 | 158.5 | 19/3.26 | 16.31 | 434 | 48.76 | 0.2112 |
| Canton | 394.5 | 199 | 19/3.66 | 18.31 | 547.4 | 58.96 | 0.1676 |
| Calro | 465.4 | 235.8 | 19/3.98 | 19.89 | 645.7 | 69.55 | 0.1431 |
| Darien | 559.5 | 283.5 | 19/4.36 | 21.79 | 776.3 | 83.55 | 0.1181 |
| Elgin | 652.4 | 330.6 | 19/4.71 | 23.55 | 970.6 | 97.43 | 0.1012 |
| Flint | 740.8 | 375.4 | 37/3.59 | 25.15 | 1028 | 107.93 | 0.08944 |
| Greeley | 927.2 | 469.8 | 37/4.02 | 28.14 | 1287 | 135.91 | 0.07133 |
All Aluminium Alloy Conductors (AAAC) to BS 3242 and BS EN 50182 Standard
| Code | Conductor size | No./Diameter of single wire | Approximate overall diameter of cable mm |
Approximate weight of cable kg/km |
Nominal Breaking Load kgf |
Maximum DC Resistance at 20℃ Ω/km |
|
| AWG or MCM | mm2 | ||||||
| Box | 15 | 18.82 | 7/1.85 | 5.55 | 51 | 537 | 1.7495 |
| Acacia | 20 | 23.79 | 7/2.08 | 6.24 | 65 | 680 | 1.384 |
| Almond | 25 | 30.1 | 7/2.34 | 7.02 | 82 | 861 | 1.0934 |
| Cedar | 30 | 35.47 | 7/2.54 | 7.62 | 97 | 1014 | 0.9281 |
| Deodar | 35 | 42.18 | 7/2.77 | 8.31 | 115 | 1205 | 0.7804 |
| Fir | 40 | 47.84 | 7/2.95 | 8.85 | 131 | 1367 | 0.688 |
| Hazel | 50 | 59.87 | 7/3.30 | 9.9 | 164 | 1711 | 0.55498 |
| Pine | 60 | 71.65 | 7/3.61 | 10.83 | 196 | 2048 | 0.4594 |
| Holly | 70 | 84.05 | 7/3.91 | 11.73 | 230 | 2402 | 0.3917 |
| Willow | 75 | 89.73 | 7/4.04 | 12.12 | 245 | 2565 | 0.3669 |
| 80 | 96.52 | 7/4.19 | 12.57 | 264 | 2758 | 0.3441 | |
| 90 | 108 | 7/4.44 | 13.32 | 298 | 3112 | 0.3023 | |
| Oak | 100 | 118.9 | 7/4.65 | 13.95 | 325 | 3398 | 0.2769 |
| – | 100 | 118.7 | 19/2.82 | 14.1 | 326 | 3393 | 0.2787 |
| Mulberry | 125 | 150.9 | 19/3.18 | 15.9 | 415 | 4312 | 0.2192 |
| Ash | 150 | 180.7 | 19/3.48 | 17.4 | 497 | 5164 | 0.1831 |
| Elm | 175 | 211 | 19/3.76 | 18.8 | 580 | 6030 | 0.1568 |
| Poplar | 200 | 239.4 | 37/2.87 | 20.09 | 659 | 8841 | 0.1385 |
| 225 | 270.3 | 37/3.05 | 21.35 | 744 | 7724 | 0.1227 | |
| Sycamore | 250 | 303.2 | 37/3.22 | 22.54 | 835 | 8864 | 0.1093 |
| Upas | 300 | 362.1 | 37/3.53 | 24.71 | 997 | 10350 | 0.09156 |
| Walnut | 350 | 421.8 | 37/3.81 | 26.67 | 1162 | 12053 | 0.0786 |
| Yew | 400 | 479 | 37/4.06 | 28.42 | 1319 | 13685 | 0.06921 |
| Tuatara | 425 | 498.1 | 37/4.14 | 28.98 | 1372 | 14233 | 0.06656 |
| Rubus | 500 | 586.9 | 61/3.50 | 31.5 | 1620 | 16771 | 0.05662 |
| Sorbus | 650 | 659.4 | 61/3.71 | 33.39 | 1822 | 19850 | 0.0505 |
| Araucaria | 700 | 821.1 | 61/4.14 | 37.26 | 2266 | 23450 | 0.04047 |
| Redwood | 950 | 996.2 | 61/4.56 | 41 | 2753 | 29988 | 0.0334 |
All Aluminium Alloy Conductors (AAAC) to BS EN
| Code ASTER |
Actual cross-sectional area mm2 |
Number of strands | Nominal Diameter | Approximate weight of cable kg/km |
NominalBreaking Load kN |
Maximum DC Resistance at 20℃ Ω/km |
|
| Single wire mm |
Conductor mm |
||||||
| 22 | 22 | 7 | 2 | 6 | 60 | 7.15 | 1.4989 |
| 34.4 | 34.4 | 7 | 2.5 | 7.5 | 93.8 | 11.17 | 0.9593 |
| 54.6 | 54.6 | 7 | 3.15 | 9.45 | 148.9 | 17.73 | 0.6042 |
| 75.5 | 75.5 | 19 | 2.25 | 11.3 | 207.4 | 24.55 | 0.4388 |
| 117 | 117 | 19 | 2.8 | 14 | 321.2 | 38.02 | 0.2833 |
| 148 | 148.1 | 19 | 3.15 | 15.8 | 406.5 | 48.12 | 0.2239 |
| 181.6 | 181.6 | 37 | 2.5 | 17.5 | 500.3 | 59.03 | 0.1831 |
| 228 | 227.8 | 37 | 2.8 | 19.6 | 627.6 | 74.04 | 0.146 |
| 288 | 288.3 | 37 | 3.15 | 22.1 | 794.3 | 93.71 | 0.1154 |
| 366 | 366.2 | 37 | 3.55 | 24.9 | 1008.9 | 115.36 | 0.0908 |
| 570 | 570.2 | 61 | 3.45 | 31.1 | 1576 | 185.33 | 0.0585 |
| 851 | 850.7 | 91 | 3.45 | 38 | 2360.7 | 276.47 | 0.0394 |
| 1144 | 1143.5 | 91 | 4 | 44 | 3173.4 | 360.22 | 0.0293 |
| 1600 | 1595.9 | 127 | 4 | 52 | 4427.5 | 502.72 | 0.021 |
