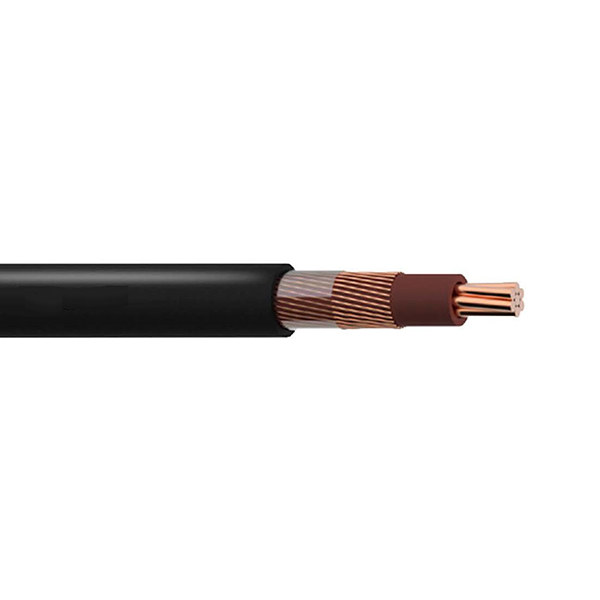

AL/XLPE/PVC Concentric Cable

South America market custom-made AL/XLPE/PVC Concentric Cable by Xinfeng Cable

Application

Concentric cable is a type of cable with a combined neutral and earth wire completely surrounds the core, Suitable for electrical network, are used in service entrances replacing low voltage bundled cables in order to avoid energy robbery. Also suitable for sub main distribution and particularly used within high-rise buildings and street lighting systems.

Share This Page

ABC Cable / Aerial Bundled Cable

Airport Lighting Cable

Bare overhead conductor

Concentric Service Cable

Control Cable

Installation / Building Cable

Low Voltage Cable

Medium Voltage Cable

Solar Cable

Standards

IEC60502-1, ASTM B800, ICEA S 95-658, UL2556.

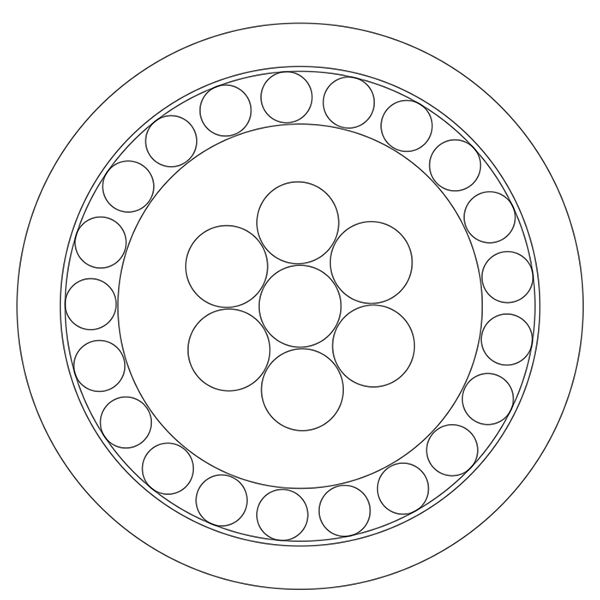

Construction

Phase Conductor: Stranded aluminium wire

Phase Insulation: XLPE

Neutral Conductor: Solid aluminium alloy 8000 series

Binder tape : Polyester tape

Sheath : PVC

Characteristics

Rated voltages U0/U: 600/1000V.
Note：U0 ：Rated power-frequency voltage between conductor and earth or armour, metal sheath or screen for which the cable is suitable.
U ：Rated power-frequency voltage between phase conductors for which the cable is suitable.
The ambient temperature for installation: ≥0℃
Maximum conductor temperature in normal operation:≤90℃
Test Voltage: 3.5kV 5min No Breakdown, according to IEC60502-1.
Max operating temperature of con. When cable short-circuited(5s maximum duration): 250℃.
Permissible minimum bending radius: 8 x OD.
Note: OD. =Overall Diameter of Cable

Specifications

Size mm2	Phase Conductor Structure No./ mm	Phase Insulation Nominal Thickness mm	Neutral Conductor Structure No./ mm	Sheath Nominal Thickness mm	Approx. Weight kg/km
2×6	7/1.05	0.7	19/0.65	1.4	94
2×10	7/1.35	1.14	20/0.81	1.4	120
