6.35/11kV AL/XLPE/CTS/PVC Aerial Cable

Aluminum overhead insulated cable China manufacturer

Applications

These cables are suitable for MV power applications, particularly for connections in transformer stations and power stations, between aerial lines and transformer stations.

Share This Page

ABC Cable / Aerial Bundled Cable

Airport Lighting Cable

Bare overhead conductor

Concentric Service Cable

Control Cable

Installation / Building Cable

Low Voltage Cable

Medium Voltage Cable

Solar Cable

Standards

IEC 60502

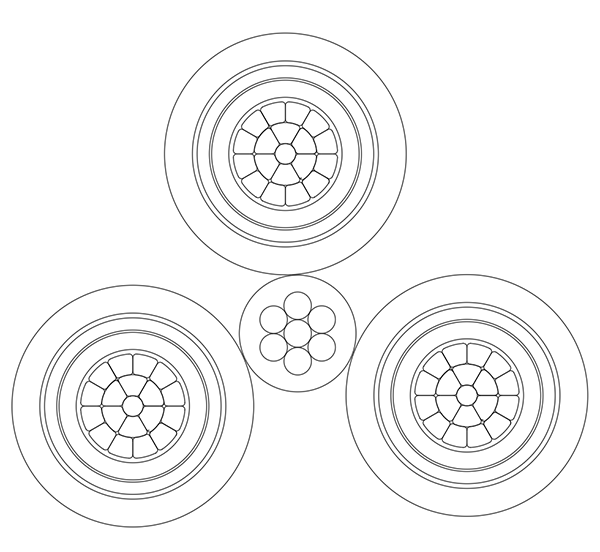

Construction

TYPE 1(Metallic Screened):
1: Phase Conductor: Circular compacted stranded aluminium

2: Conductor Screen layer: Extruded semi-conductive compound.

3: Insulation: XLPE

4: Insulation Screen layer: Extruded semi-conductive compound.

5: Metallic Screen(optional): Copper wire screen(CWS) or copper tape screen(CTS).

6: Separator layer: non-hygroscopic tape.

7: Outer Sheath(optional): PE/XLPE/PVC, UV-resistant.

8: Support Conductor: Stranded Galvanized steel wires or Aluminium alloy wires

9: Support Conductor insulation (optional): PE/XLPE/PVC, UV-resistant.
Core identification(optional): Colors tape or numbers.
Assembly: Three XLPE insulated screened cores are bundled around the galvanized steel wires in a right hand lay.

Characteristics

Voltage Rating: 6kV-46kV
Operating Temperature:
PVC : -15°C to +70°C PE: -40°C to +70°C XLPE : -40°C to +90°C
Minimum Laying/ Installation Temperature:
PVC : 0°C PE: -20°C XLPE : -20°C
Note: The above temperature rating provisions can be changed as order.
Minimum Bending Radius: 12 x OD (Overall Diameter)

Specifications

Number of Cores x Nominal Cross Section No.×mm²	Phase Conductor				Messenger Conductor（Bare）		Approx. weight kg/km
Number of Cores x Nominal Cross Section No.×mm²	Stranding No.×mm	Nominal Diameter of Conductor mm	Nom. Thickness of insulation mm	Maximum Conductor Resistance at 20°C Ω/kM	Stranding No.×mm	Minimum breaking load kN	Approx. weight kg/km
3X50 + 1X50	7/3.05	8.1	3.4	0.641	7/3.00	60	2200
3X70 + 1X50	19/2.22	9.8	3.4	0.443	7/3.00	60	2500
3X95+ 1X50	19/2.55	11.4	3.4	0.32	7/3.00	60	2850
3X120 +1X50	19/2.85	12.8	3.4	0.253	7/3.00	60	3160
3X150 +1X50	19/3.15	14.4	3.4	0.206	7/3.00	60	3560
3X185+1X50	36/2.52	16	3.4	0.164	7/3.00	60	3990
3X240 +1X50	36/2.88	18.4	3.4	0.125	7/3.00	60	4710
