35kV Spaced Aerial Cable (SAC Cable)
Medium voltage overhead used 35KV SAC Cable
Applications
For aerial power transmission and distribution line
Share This Page
Standards
ICEA S-66-524 /MEA/PEA .

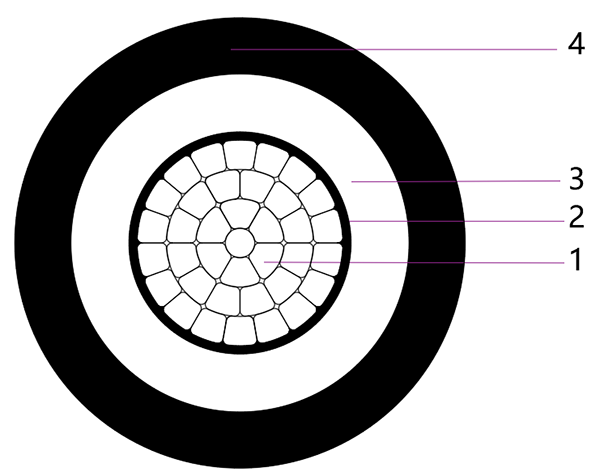

Construction
Conductors: Stranded compacted circular hard drawn aluminium wire.
Conductor screen: Extruded semi-conductive compound
Insulation: Cross-linked polyethylene (XLPE). Color ： Natural
Sheath: Track resistant Cross-linked polyethylene (XLPE) / HDPE. Color ： Black
Characteristics
- Voltage Rating: 15kV. 25KV. 35KV
- Operating Temperature: -40°C to +90°C .
- Minimum Laying/ Installation Temperature: -20°C .
Max operating temperature of conductor. When cable short-circuited(5s maximum duration): 250℃ - Test Voltage: AC. 27kV 5min No Breakdown(For 15KV SAC Cable).
AC. 38kV 5min No Breakdown(For 25KV SAC Cable).
AC. 49kV 5min No Breakdown(For 35KV SAC Cable).
Minimum Bending Radius: 15 x OD (Overall Diameter)
Specifications
| Conductor | Approx. OD. Mm |
Minimum Conductor breaking load N |
Approx. Weight kg/km |
Continuous current rating in free air 40℃ ambient A |
||
| Number of Cores x Nominal Cross Section No.×mm² |
No.of wires (Min) No. |
Approx. Diameter of Conductor mm |
||||
| 1X35 | 6 | 6.9 | 23.8 | 5591 | 450 | 147 |
| 1X50 | 6 | 8.1 | 25.5 | 7313 | 517 | 184 |
| 1X70 | 12 | 9.8 | 27.5 | 10420 | 599 | 227 |
| 1X95 | 15 | 11.4 | 29 | 14098 | 711 | 276 |
| 1X120 | 15 | 12.8 | 31 | 18518 | 831 | 318 |
| 1X150 | 15 | 14.4 | 32.5 | 22457 | 933 | 367 |
| 1X185 | 30 | 16 | 33.5 | 28974 | 1073 | 425 |
| 1X240 | 30 | 18.4 | 36.5 | 37506 | 1293 | 515 |
