21/35kV Armoured Cable
35kV armoured cable china manufacturer
Application
XLPE(Cross linked polyethylene) cable constitutes the best cable for transmission and distribution lines because of its excellent electrical and physical properties. These cables has the advantage of simplicity in construction, lightness in weight; convenience in application besides its excellent electrical, thermal, mechanical and anti-chemical corrosion properties. It can also be laid with no limitation of level difference along the route.
Share This Page
Standards
GB/12706.2, IEC60502-2,BS 6622 , VDE 0276, HD 620 S1，NFC 33-226， IS 1554 , IS 7098 and ICEA S-66-524 etc.

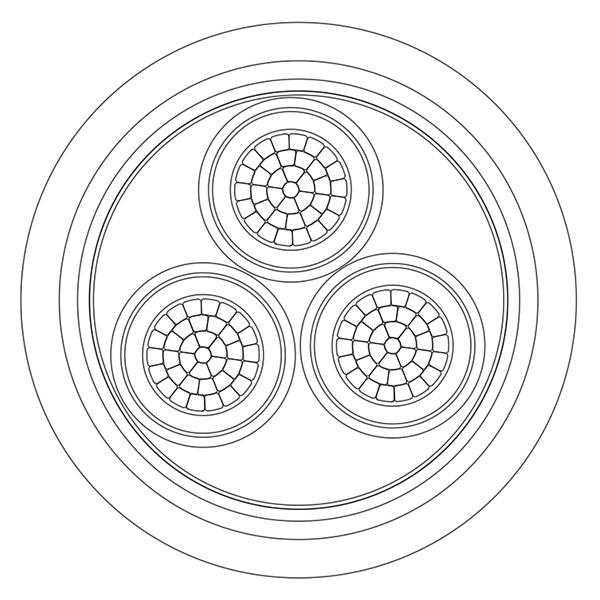

Construction
Conductor: Circular compacted stranded Copper or aluminium
Conductor screen: Extruded semi-conductive compound
Insulation: XLPE
Insulation screen: Extruded semi-conductive compound
Metallic screen: Copper tape
Binder tape: non-hygroscopic material
Inner covering(bedding): Extruded PVC
Metallic armor: Galvanized steel wire or Galvanized steel tape
Filler: non-hygroscopic material
Sheath: PVC
Binder tape: non-hygroscopic material
Characteristics
The product is suitable for power transmission and distribution lines with rated power frequency voltage 6kV～35 kV.
- Rated voltages U0/U(Um): 3.6/6(7.2)kV,6/10(12) kV, 8.7/15(17.5) kV, 12/20(24) kV, 18/30(36) kV; 21/35(40.5) kV; 26/35(40.5) kV;
Note: The above rated voltages are equivalent to 3.8/6.6(7.2)kV,6.35/11(12) kV, 8.7/15(17.5) kV, 12.7/22(24) kV, 19/33(36) kV;
U0 ：Rated power-frequency voltage between conductor and earth or armour, metal sheath or screen for which the cable is suitable.
U ：Rated power-frequency voltage between phase conductors for which the cable is suitable.
Um ：Maximum value of the highest system voltage between phase conductors for which the cable is suitable. - The ambient temperature for installation: ≥0℃
- Maximum conductor temperature in normal operation:≤90℃
- Max operating temperature of con. When cable short-circuited(5s maximum duration): 250℃
- Permissible minimum bending radius:
Single unarmoured cable: 20 x OD
Multi-core unarmoured cable: 15 x OD
Single armoured cable: 5 x OD
Multi-core armoured cable: 12 x OD
Note : OD=Overall Diameter of Cable
Specifications
Product Type
| General type | VDE type | Description | Application |
| CU/XLPE/PVC (AL/XLPE/PVC) | N2XSY N2XSEY (NA2XSY NA2XSEY) | Cu conductor（Al conductor）XLPE insulated PVC sheathed power cable | Laying indoors, in tunnel, fixed on the bracket, pipe and buried in the soil, the cable cannot bear external mechanical forces. |
| CU/XLPE/PE (AL/XLPE/PE) | N2XS2Y N2XSE2Y (NA2XS2Y NA2XSE2Y) | Cu conductor（Al conductor）XLPE insulated PE sheathed power cable | |
| CU/XLPE/STA/PVC (AL/XLPE/STA/PVC) | N2XSBY N2XSEBY (NA2XSBY NA2XSEBY) | Cu conductor（Al conductor）XLPE insulated double of steel-tape armored PVC sheathed power cable | For laying indoors, in tunnel, cable trench, or direct in ground, able to bear external mechanical forces, but unable to bear large pulling force. |
| CU/XLPE/STA/PE (AL/XLPE/STA/PE) | N2XSB2Y N2XSEB2Y (NA2XSB2Y NA2XSEB2Y) | Cu conductor（Al conductor）XLPE insulated double of steel-tape armored PE sheathed power cable | |
| CU/XLPE/ATA/PVC (AL/XLPE/ATA/PVC) | N2XSBY N2XSEBY (NA2XSBY NA2XSEBY) | Cu conductor（Al conductor）XLPE insulated double of aluminium-tape armored PVC sheathed power cable | |
| CU/XLPE/SWA/PVC (AL/XLPE/SWA/PVC) | N2XSRY N2XSERY (NA2XSRY NA2XSERY) | Cu conductor（Al conductor）XLPE insulated steel-wire armored PVC sheathed power cable | For laying indoors, in tunnel, cable trench, well or direct in ground, able to bear external mechanical forces and certain pulling force |
| CU/XLPE/SWA/PE (AL/XLPE/SWA/PE) | N2XSR2Y N2XSER2Y (NA2XSR2Y NA2XSER2Y) | Cu conductor（Al conductor）XLPE insulated steel-wire armored PE sheathed power cable | |
| CU/XLPE/AWA/PVC (AL/XLPE/AWA/PVC) | N2XSRY N2XSERY (NA2XSRY NA2XSERY) | Cu conductor（Al conductor）XLPE insulated aluminium-wire armored PE sheathed power cable |
Range of production
| No.of cores | 3.6/6（7.2） | 6/6(7.2) 6/10（12.0） | 8.7/10(12) 8.7/15(17.5) | 12/20(24.0) | 18/30(36.0) | 21/35(40.5) | 26/35(40.5) |
| 1 | 25-630 | 25-630 | 25-630 | 25-630 | 25-630 | 50-630 | 50-630 |
| 25-630 | 25-630 | 25-630 | 25-630 | 25-630 | 50-630 | 50-630 | |
| 25-630 | 25-630 | 25-630 | 25-630 | 25-630 | 50-630 | 50-630 | |
| 25-630 | 25-630 | 25-630 | 25-630 | 25-630 | 50-630 | 50-630 | |
| 25-630 | 25-630 | 25-630 | 25-630 | 25-630 | 50-630 | 50-630 | |
| 25-630 | 25-630 | 25-630 | 25-630 | 25-630 | 50-630 | 50-630 | |
| 3 | 16-630 | 16-630 | 16-630 | 16-630 | 16-630 | 50-400 | 50-400 |
| 16-630 | 16-630 | 16-630 | 16-630 | 16-630 | 50-400 | 50-400 | |
| 16-630 | 16-630 | 16-630 | 16-630 | 16-630 | 50-400 | 50-400 | |
| 16-630 | 16-630 | 16-630 | 16-630 | 16-630 | 50-400 | 50-400 | |
| 16-630 | 16-630 | 16-630 | 16-630 | 16-630 | 50-400 | 50-400 | |
| 16-630 | 16-630 | 16-630 | 16-630 | 16-630 | 50-400 | 50-400 |
Product parameters for Single core aluminium tape armored
| Specification mm2 |
Outer diameter mm |
Approx. outer diameter of cable mm |
Approx. weight of cable kg/km |
Max. D.C. resistance of conductor at 20℃ Ω/km |
||
| Cu | Al | Cu | Al | |||
| 1×50 | 8.4 | 39.4 | 2007.6 | 1711.1 | 0.387 | 0.641 |
| 1×70 | 10 | 41.2 | 2304.6 | 1883.2 | 0.268 | 0.443 |
| 1×95 | 11.5 | 42.9 | 2621.8 | 2044.3 | 0.193 | 0.32 |
| 1×120 | 13 | 44.5 | 2955.2 | 2224.8 | 0.153 | 0.253 |
| 1×150 | 14.5 | 46.2 | 3317.9 | 2400.2 | 0.124 | 0.206 |
| 1×185 | 16.2 | 48 | 3760.3 | 2624.1 | 0.0991 | 0.164 |
| 1×240 | 18.4 | 50.5 | 4415.4 | 2935.8 | 0.0754 | 0.125 |
| 1×300 | 20.5 | 52.8 | 5091.1 | 3233.9 | 0.0601 | 0.1 |
| 1×400 | 23.5 | 56.2 | 6171.8 | 3749.6 | 0.047 | 0.0778 |
| 1×500 | 26.5 | 59.5 | 7307.9 | 4230.2 | 0.0366 | 0.0605 |
| 1×630 | 30 | 63.3 | 8739.3 | 4885 | 0.0283 | 0.0469 |
Product parameters for Single core aluminium wire armoured
| Specification mm2 |
Outer diameter mm |
Approx. outer diameter of cable mm |
Approx. weight of cable kg/km |
Max. D.C. resistance of conductor at 20℃ Ω/km |
||
| Cu | Al | Cu | Al | |||
| 1×50 | 8.4 | 39.4 | 2331 | 2116 | 0.387 | 0.641 |
| 1×70 | 10 | 41 | 2680 | 2325 | 0.268 | 0.443 |
| 1×95 | 11.5 | 43.8 | 2981 | 2482 | 0.193 | 0.32 |
| 1×120 | 13 | 45.8 | 3487 | 2867 | 0.153 | 0.253 |
| 1×150 | 14.5 | 46.8 | 3870 | 3055 | 0.124 | 0.206 |
| 1×185 | 16.2 | 49.1 | 4420 | 3370 | 0.0991 | 0.164 |
| 1×240 | 18.4 | 51.1 | 4981 | 3676 | 0.0754 | 0.125 |
| 1×300 | 20.5 | 53.2 | 5661 | 3971 | 0.0601 | 0.1 |
| 1×400 | 23.5 | 56.3 | 6865 | 4550 | 0.047 | 0.0778 |
| 1×500 | 26.5 | 60.5 | 8370 | 5367 | 0.0366 | 0.0605 |
| 1×630 | 30 | 64.4 | 10067 | 6178 | 0.0283 | 0.0469 |
Product parameters for Three core steel tape armoured
| Specification mm2 |
Outer diameter mm |
Approx. outer diameter of cable mm |
Approx. weight of cable kg/km |
Max. D.C. resistance of conductor at 20℃ Ω/km |
||
| Cu | Al | Cu | Al | |||
| 3×50 | 8.4 | 79.2 | 7347.7 | 6415 | 0.387 | 0.641 |
| 3×70 | 10 | 84.1 | 9098 | 7792.2 | 0.268 | 0.443 |
| 3×95 | 11.5 | 87.9 | 10338.9 | 8566.8 | 0.193 | 0.32 |
| 3×120 | 13 | 91.4 | 11507.9 | 9269.5 | 0.153 | 0.253 |
| 3×150 | 14.5 | 95 | 12819.4 | 10021.3 | 0.124 | 0.206 |
| 3×185 | 16.2 | 99 | 14325.3 | 10874.4 | 0.0991 | 0.164 |
| 3×240 | 18.4 | 104.2 | 16451.4 | 11974.5 | 0.0754 | 0.125 |
| 3×300 | 20.5 | 109.2 | 18773.8 | 13177.7 | 0.0601 | 0.1 |
| 3×400 | 23.5 | 116.4 | 22472.7 | 15011.2 | 0.047 | 0.0778 |
Product parameters for Three core steel wire armored armored
| Specification mm2 |
Outer diameter mm |
Approx. outer diameter of cable mm |
Approx. weight of cable kg/km |
Max. D.C. resistance of conductor at 20℃ Ω/km |
||
| Cu | Al | Cu | Al | |||
| 3×50 | 8.4 | 80.4 | 10082 | 9222 | 0.387 | 0.641 |
| 3×70 | 10 | 84.1 | 11219 | 9979 | 0.268 | 0.443 |
| 3×95 | 11.5 | 87.6 | 12487 | 10762 | 0.193 | 0.32 |
| 3×120 | 13 | 92 | 13784 | 11611 | 0.153 | 0.253 |
| 3×150 | 14.5 | 94.4 | 14923 | 12236 | 0.124 | 0.206 |
| 3×185 | 16.2 | 98.8 | 16650 | 13294 | 0.0991 | 0.164 |
| 3×240 | 18.4 | 103.3 | 18842 | 14427 | 0.0754 | 0.125 |
| 3×300 | 20.5 | 108.2 | 21293 | 15746 | 0.0601 | 0.1 |
| 3×400 | 23.5 | 114.7 | 24939 | 17862 | 0.047 | 0.0778 |
