15KV Spaced Aerial Cable (SAC Cable)
15KV SAC Cable For Overhead Line
Applications
For aerial power transmission and distribution line
Share This Page
Standards
ICEA S-66-524 /MEA/PEA .

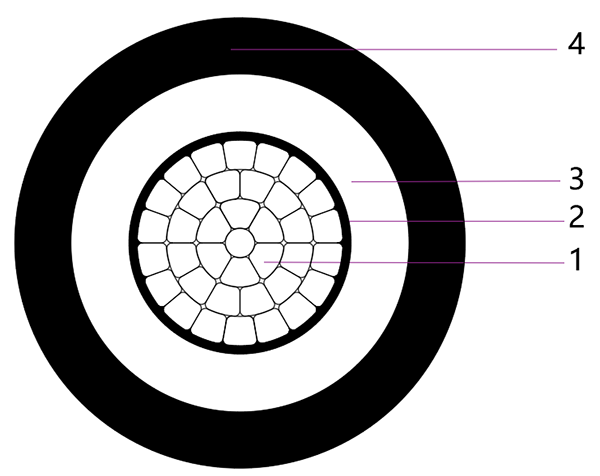

Construction
Conductors: Stranded compacted circular hard drawn aluminium wire.
Conductor screen: Extruded semi-conductive compound
Insulation: Cross-linked polyethylene (XLPE). Color ： Natural
Sheath: Track resistant Cross-linked polyethylene (XLPE) / HDPE. Color ： Black
Characteristics
- Voltage Rating: 15kV. 25KV. 35KV
- Operating Temperature: -40°C to +90°C .
- Minimum Laying/ Installation Temperature: -20°C .
- Max operating temperature of conductor. When cable short-circuited(5s maximum duration): 250℃
- Test Voltage: AC. 27kV 5min No Breakdown(For 15KV SAC Cable).
AC. 38kV 5min No Breakdown(For 25KV SAC Cable).
AC. 49kV 5min No Breakdown(For 35KV SAC Cable). - Minimum Bending Radius: 15 x OD (Overall Diameter)
Specifications
| Conductor | Approx. OD. Mm |
Minimum Conductor breaking load N |
Approx. Weight kg/km |
Continuous current rating in free air 40℃ ambient A |
||
| Number of Cores x Nominal Cross Section No.×mm² |
No.of wires (Min) No. |
Approx. Diameter of Conductor mm |
||||
| 1X35 | 6 | 6.9 | 16.1 | 5591 | 245 | 151 |
| 1X50 | 6 | 8.1 | 17.2 | 7313 | 295 | 187 |
| 1X70 | 12 | 9.8 | 18.9 | 10420 | 370 | 231 |
| 1X95 | 15 | 11.4 | 20.6 | 14098 | 465 | 281 |
| 1X120 | 15 | 12.8 | 22 | 18518 | 552 | 324 |
| 1X150 | 15 | 14.4 | 23.4 | 22457 | 646 | 375 |
| 1X185 | 30 | 16 | 25.1 | 28974 | 766 | 433 |
| 1X240 | 30 | 18.4 | 27.6 | 37506 | 955 | 525 |
