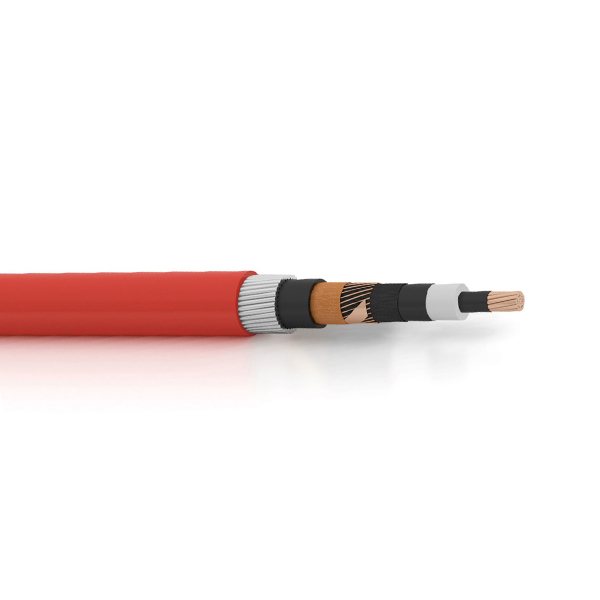

20kV steel wire or steel tape armoured cable

12-20kV (12.7-22kV) Armoured Cable

XLPE Insulated Medium Voltage electrical cable manufacturer

Application

XLPE(Cross linked polyethylene) cable constitutes the best cable for transmission and distribution lines because of its excellent electrical and physical properties. These cables has the advantage of simplicity in construction, lightness in weight; convenience in application besides its excellent electrical, thermal, mechanical and anti-chemical corrosion properties. It can also be laid with no limitation of level difference along the route.

Share This Page

ABC Cable / Aerial Bundled Cable

Airport Lighting Cable

Bare overhead conductor

Concentric Service Cable

Control Cable

Installation / Building Cable

Low Voltage Cable

Medium Voltage Cable

Solar Cable

Standards

GB/12706.2, IEC60502-2,BS 6622 , VDE 0276, HD 620 S1，NFC 33-226， IS 1554 , IS 7098 and ICEA S-66-524 etc.

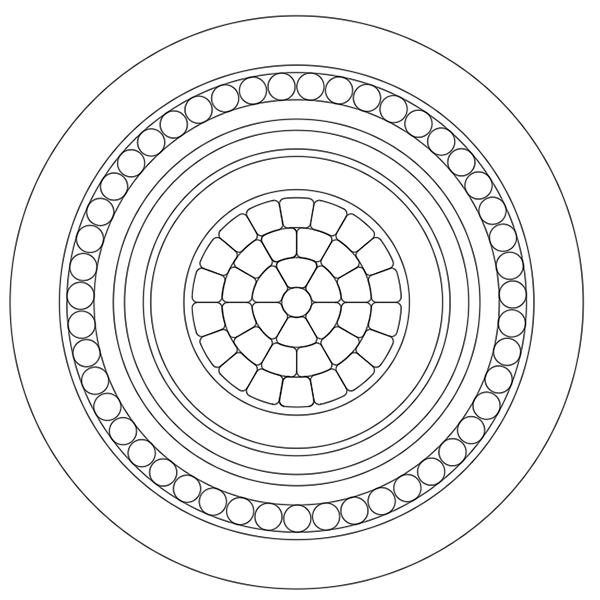

Construction

Conductor: Circular compacted stranded Copper or aluminium

Conductor screen: Extruded semi-conductive compound

Insulation: XLPE

Insulation screen: Extruded semi-conductive compound

Metallic screen: Copper tape

Binder tape: non-hygroscopic material

Inner covering(bedding): Extruded PVC

Metallic armor: Galvanized steel wire or Galvanized steel tape

Filler: non-hygroscopic material

Sheath: PVC

Binder tape: non-hygroscopic material

Characteristics

The product is suitable for power transmission and distribution lines with rated power frequency voltage 6kV～35 kV.

Rated voltages U0/U(Um): 3.6/6(7.2)kV,6/10(12) kV, 8.7/15(17.5) kV, 12/20(24) kV, 18/30(36) kV; 21/35(40.5) kV; 26/35(40.5) kV;
Note: The above rated voltages are equivalent to 3.8/6.6(7.2)kV,6.35/11(12) kV, 8.7/15(17.5) kV, 12.7/22(24) kV, 19/33(36) kV;
U0 ：Rated power-frequency voltage between conductor and earth or armour, metal sheath or screen for which the cable is suitable.
U ：Rated power-frequency voltage between phase conductors for which the cable is suitable.
Um ：Maximum value of the highest system voltage between phase conductors for which the cable is suitable.
The ambient temperature for installation: ≥0℃
Maximum conductor temperature in normal operation:≤90℃
Max operating temperature of con. When cable short-circuited(5s maximum duration): 250℃
Permissible minimum bending radius:
Single unarmoured cable: 20 x OD
Multi-core unarmoured cable: 15 x OD
Single armoured cable: 5 x OD
Multi-core armoured cable: 12 x OD
Note : OD=Overall Diameter of Cable

Specifications

Product Type

General type	VDE type	Description	Application
CU/XLPE/PVC (AL/XLPE/PVC)	N2XSY N2XSEY (NA2XSY NA2XSEY)	Cu conductor（Al conductor）XLPE insulated PVC sheathed power cable	Laying indoors, in tunnel, fixed on the bracket, pipe and buried in the soil, the cable cannot bear external mechanical forces.
CU/XLPE/PE (AL/XLPE/PE)	N2XS2Y N2XSE2Y (NA2XS2Y NA2XSE2Y)	Cu conductor（Al conductor）XLPE insulated PE sheathed power cable
CU/XLPE/STA/PVC (AL/XLPE/STA/PVC)	N2XSBY N2XSEBY (NA2XSBY NA2XSEBY)	Cu conductor（Al conductor）XLPE insulated double of steel-tape armored PVC sheathed power cable	For laying indoors, in tunnel, cable trench, or direct in ground, able to bear external mechanical forces, but unable to bear large pulling force.
CU/XLPE/STA/PE (AL/XLPE/STA/PE)	N2XSB2Y N2XSEB2Y (NA2XSB2Y NA2XSEB2Y)	Cu conductor（Al conductor）XLPE insulated double of steel-tape armored PE sheathed power cable
CU/XLPE/ATA/PVC (AL/XLPE/ATA/PVC)	N2XSBY N2XSEBY (NA2XSBY NA2XSEBY)	Cu conductor（Al conductor）XLPE insulated double of aluminium-tape armored PVC sheathed power cable
CU/XLPE/SWA/PVC (AL/XLPE/SWA/PVC)	N2XSRY N2XSERY (NA2XSRY NA2XSERY)	Cu conductor（Al conductor）XLPE insulated steel-wire armored PVC sheathed power cable	For laying indoors, in tunnel, cable trench, well or direct in ground, able to bear external mechanical forces and certain pulling force
CU/XLPE/SWA/PE (AL/XLPE/SWA/PE)	N2XSR2Y N2XSER2Y (NA2XSR2Y NA2XSER2Y)	Cu conductor（Al conductor）XLPE insulated steel-wire armored PE sheathed power cable
CU/XLPE/AWA/PVC (AL/XLPE/AWA/PVC)	N2XSRY N2XSERY (NA2XSRY NA2XSERY)	Cu conductor（Al conductor）XLPE insulated aluminium-wire armored PE sheathed power cable

Range of production

No.of cores	3.6/6（7.2）	6/6(7.2) 6/10（12.0）	8.7/10(12) 8.7/15(17.5)	12/20(24.0)	18/30(36.0)	21/35(40.5)	26/35(40.5)
1	25-630	25-630	25-630	25-630	25-630	50-630	50-630
	25-630	25-630	25-630	25-630	25-630	50-630	50-630
	25-630	25-630	25-630	25-630	25-630	50-630	50-630
	25-630	25-630	25-630	25-630	25-630	50-630	50-630
	25-630	25-630	25-630	25-630	25-630	50-630	50-630
	25-630	25-630	25-630	25-630	25-630	50-630	50-630
3	16-630	16-630	16-630	16-630	16-630	50-400	50-400
	16-630	16-630	16-630	16-630	16-630	50-400	50-400
	16-630	16-630	16-630	16-630	16-630	50-400	50-400
	16-630	16-630	16-630	16-630	16-630	50-400	50-400
	16-630	16-630	16-630	16-630	16-630	50-400	50-400
	16-630	16-630	16-630	16-630	16-630	50-400	50-400

Product parameters for Single core aluminium tape armored

Specification mm2	Outer diameter mm	Approx. outer diameter of cable mm	Approx. weight of cable kg/km		Max. D.C. resistance of conductor at 20℃ Ω/km
Specification mm2	Outer diameter mm	Approx. outer diameter of cable mm	Cu	Al	Cu	Al
1×25	6	27.4	1109.1	956.7	0.727	1.2
1×35	7	28.5	1256.8	1044.5	0.524	0.868
1×50	8.4	30	1445.4	1148.8	0.387	0.641
1×70	10	31.7	1717.3	1295.9	0.268	0.443
1×95	11.5	33.3	2014.5	1437	0.193	0.32
1×120	13	34.9	2324.1	1593.7	0.153	0.253
1×150	14.5	36.5	2666.9	1749.2	0.124	0.206
1×185	16.2	39.6	3082.8	1946.6	0.0991	0.164
1×240	18.4	42	3704.8	2225.3	0.0754	0.125
1×300	20.5	44.4	4373.2	2516	0.0601	0.1
1×400	23.5	47.7	5381.8	2959.6	0.047	0.0778
1×500	26.5	51	6501.7	3424	0.0366	0.0605
1×630	30	54.8	7851.3	3997	0.0283	0.0469

Product parameters for Single core aluminium wire armoured

Specification mm2	Outer diameter mm	Approx. outer diameter of cable mm	Approx. weight of cable kg/km		Max. D.C. resistance of conductor at 20℃ Ω/km
Specification mm2	Outer diameter mm	Approx. outer diameter of cable mm	Cu	Al	Cu	Al
1×25	6	28.6	1113	963	0.727	1.2
1×35	7	31.5	1350	1070	0.524	0.868
1×50	8.4	32.8	1550	1250	0.387	0.641
1×70	10	35.3	1840	1420	0.268	0.443
1×95	11.5	37.1	2160	1570	0.193	0.32
1×120	13	38.5	2470	1730	0.153	0.253
1×150	14.5	40.3	2810	1890	0.124	0.206
1×185	16.2	42.1	3240	2090	0.0991	0.164
1×240	18.4	44.5	4150	2580	0.0754	0.125
1×300	20.5	47.9	4800	2890	0.0601	0.1
1×400	23.5	51.3	5780	3350	0.047	0.0778
1×500	26.5	55.3	6850	3850	0.0366	0.0605
1×630	30	59.4	8380	4400	0.0283	0.0469

Product parameters for Three core steel tape armoured

Specification mm2	Outer diameter mm	Approx. outer diameter of cable mm	Approx. weight of cable kg/km		Max. D.C. resistance of conductor at 20℃ Ω/km
Specification mm2	Outer diameter mm	Approx. outer diameter of cable mm	Cu	Al	Cu	Al
3×25	6	55.2	3758.8	3292.4	0.727	1.2
3×35	7	57.6	4260.7	3607.8	0.524	0.868
3×50	8.4	60.9	4972.7	4040	0.387	0.641
3×70	10	64.6	5808.5	4502.7	0.268	0.443
3×95	11.5	68.3	6903.7	5131.6	0.193	0.32
3×120	13	71.9	7913.3	5674.8	0.153	0.253
3×150	14.5	75.5	9095.3	6297.3	0.124	0.206
3×185	16.2	79.5	10436.6	6985.6	0.0991	0.164
3×240	18.4	84.7	12398.2	7921.3	0.0754	0.125
3×300	20.5	89.7	14533	8936.9	0.0601	0.1
3×400	23.5	98.2	18934.3	11472.8	0.047	0.0778
3×500	26.5	106.9	22890	13739	0.0366	0.0605

Product parameters for Three core steel wire armored armored

Specification mm2	Outer diameter mm	Approx. outer diameter of cable mm	Approx. weight of cable kg/km		Max. D.C. resistance of conductor at 20℃ Ω/km
Specification mm2	Outer diameter mm	Approx. outer diameter of cable mm	Cu	Al	Cu	Al
3×25	6	55.4	5258	4801	0.727	1.2
3×35	7	57.7	5793	5158	0.524	0.868
3×50	8.4	60.8	6464	5602	0.387	0.641
3×70	10	64.4	7449	6208	0.268	0.443
3×95	11.5	67.9	8579	6854	0.193	0.32
3×120	13	73.9	10656	8482	0.153	0.253
3×150	14.5	76.2	11731	9044	0.124	0.206
3×185	16.2	80.8	13286	9930	0.0991	0.164
3×240	18.4	85.3	15471	11056	0.0754	0.125
3×300	20.5	90.2	17801	12254	0.0601	0.1
3×400	23.5	96.7	21021	13944	0.047	0.0778
3×500	26.5	110.2	26770	17618	0.0366	0.0605
