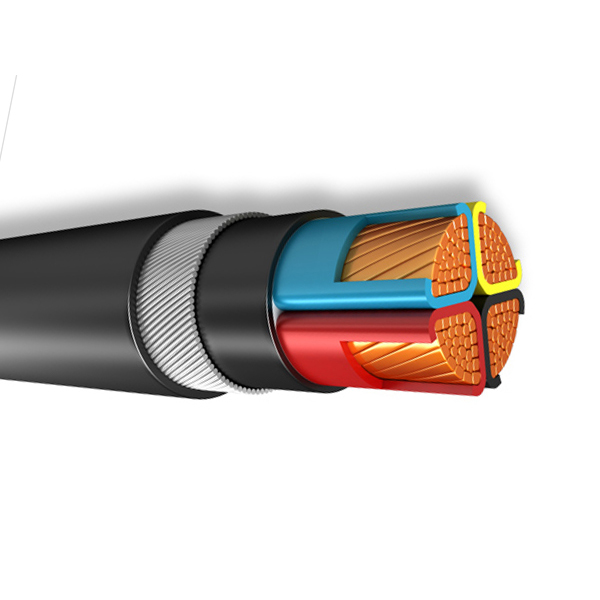

0.6/1kV XLPE Insulated Steel Wire Armoured Cable
Armoured low voltage cable manufactuer in china
Application
XLPE(Cross linked polyethylene) cable constitutes the best cable for transmission and distribution lines because of its excellent electrical and physical properties. These cables has the advantage of simplicity in construction, lightness in weight; convenience in application besides its excellent electrical, thermal, mechanical and anti-chemical corrosion properties. It can also be laid with no limitation of level difference along the route.
Share This Page
Standards
GB/12706.1, IEC60502-1, BS 6724, BS 7870-5，BS 5467, NFC 32-321, HD 603 S1 , AS/NZS 5000.1，AS/NZS 3599.1，AS/NZS 3599.2，IS 1554 , IS 7098 and ICEA S-66-524 etc.
Construction
Conductor: Circular, solid, compacted or sector shaped stranded copper or aluminium
Insulation: XLPE
Binder tape: non-hygroscopic material
Filler: non-hygroscopic material
Inner covering(bedding): Extruded PVC
Metallic armor: Galvanized steel wire
Binder tape: non-hygroscopic
Sheath: PVC
Characteristics
The product is suitable for power transmission and distribution lines with rated power frequency voltage 0.6/1 kV.
- Rated voltages U0/U(Um): 0.6/1 (1.2)kV.
Note：
U0: Rated power-frequency voltage between conductor and earth or armour, metal sheath or screen for which the cable is suitable.
U: Rated power-frequency voltage between phase conductors for which the cable is suitable.
Um: Maximum value of the highest system voltage between phase conductors for which the cable is suitable. - Test Voltage: 3.5kV 5min No Breakdown, according to IEC60502-1.
- The ambient temperature for installation: ≥0℃.
- Maximum conductor temperature in normal operation:≤90℃.
- Max operating temperature of con. When cable short-circuited(5s maximum duration): 250℃.
- Permissible minimum bending radius:
Single unarmoured cable: 20 x OD
Multi-core unarmoured cable: 15 x OD
Single armoured cable: 5 x OD
Multi-core armoured cable: 12 x OD
Note : OD=Overall Diameter of Cable
Specifications
Product type
| General type | VDE type | Description | Application |
| CU/XLPE/PVC (AL/ XLPE /PVC) | N2XY(NA2XY) | Cu conductor（Al conductor）XLPE insulated PVC sheathed power cable | Laying indoors, in tunnel, fixed on the bracket, pipe and buried in the soil, the cable cannot bear external mechanical forces. |
| CU/PVC/PE (AL/ XLPE /PE) | N2X2Y(NA2X2Y) | Cu conductor（Al conductor）XLPE insulated PE sheathed power cable | |
| CU/ XLPE /STA/PVC (AL/XLPE/STA/PVC) | N2XBY(NA2XBY) | Cu conductor（Al conductor）XLPE insulated double of steel-tape armored PVC sheathed power cable | For laying indoors, in tunnel, cable trench, or direct in ground, able to bear external mechanical forces, but unable to bear large pulling force. |
| CU/XLPE/STA/PE (AL/XLPE/STA/PE) | N2XB2Y(NA2XB2Y) | Cu conductor（Al conductor）XLPE insulated double of steel-tape armored PE sheathed power cable | |
| CU/XLPE/ATA/PVC (AL/XLPE/ATA/PVC) | N2XBY(NA2XBY) | Cu conductor（Al conductor）XLPE insulated double of aluminum-tape armored PVC sheathed power cable | |
| CU/XLPE/ATA/PE (AL/XLPE/ATA/PE) | N2XB2Y(NA2XB2Y) | Cu conductor（Al conductor）XLPE insulated double of aluminum-tape armored PE sheathed power cable | |
| CU/XLPE/SWA/PVC (AL/XLPE/SWA/PVC) | N2XRY(NA2XRY) | Cu conductor（Al conductor）XLPE insulated steel-wire armored PVC sheathed power cable | For laying indoors, in tunnel, cable trench, well or direct in ground, able to bear external mechanical forces and certain pulling force |
| CU/XLPE/SWA/PE (AL/PVC/SWA/PE) | N2XR2Y(NA2XR2Y) | Cu conductor（Al conductor）XLPE insulated steel-wire armored PE sheathed power cable | |
| CU/XLPE/AWA/PVC (AL/XLPE/AWA/PVC) | N2XRY(NA2XRY) | Cu conductor（Al conductor）XLPE insulated aluminum-wire armored PVC sheathed power cable | |
| CU/XLPE/AWA/PE (AL/XLPE/AWA/PE) | N2XR2Y(NA2XR2Y) | Cu conductor（Al conductor）XLPE insulated aluminum-wire armored PE sheathed power cable |
Product parameters
| Specification mm2 |
Outer diameter of conductor mm |
Nominal sheath thickness mm |
Approx. outer diameter of cable mm |
Approx. weight of cable kg/km |
|
| CU | AL | ||||
| 1×4 RE | 2.24 | 1.8 | 16.9 | 228 | 204 |
| 1×6 RE | 2.76 | 1.8 | 16.9 | 258 | 222 |
| 1×10 CC | 3.8 | 1.8 | 16.9 | 321 | 261 |
| 1×16 CC | 4.8 | 1.8 | 17 | 357 | 255 |
| 1×25 CC | 6 | 1.8 | 17.4 | 482 | 323 |
| 1×35 CC | 7 | 1.8 | 18.4 | 597 | 375 |
| 1×50 CC | 8.4 | 1.8 | 19.6 | 788 | 487 |
| 1×70 CC | 10 | 1.8 | 21.5 | 1032 | 598 |
| 1×95 CC | 11.5 | 1.8 | 23.1 | 1319 | 718 |
| 1×120 CC | 13 | 1.8 | 24.7 | 1657 | 892 |
| 1×150 CC | 14.5 | 1.8 | 26.7 | 1960 | 1048 |
| 1×185 CC | 16.2 | 1.8 | 28.8 | 2375 | 1205 |
| 1×240 CC | 18.4 | 1.8 | 31.6 | 3004 | 1467 |
| 1×300 CC | 20.5 | 1.9 | 34.2 | 3655 | 1722 |
| 1×400 CC | 23.5 | 2 | 39.3 | 4725 | 2245 |
| 1×500 CC | 26.5 | 2.2 | 44.3 | 5837 | 2686 |
| 1×630 CC | 30 | 2.3 | 50.4 | 7326 | 3271 |
| 2×4 RE | 2.24 | 1.8 | 17 | 582 | 532 |
| 2×6 RE | 2.76 | 1.8 | 17.1 | 617 | 546 |
| 2×10 CC | 3.8 | 1.8 | 18.8 | 763 | 637 |
| 2×16 CC | 4.8 | 1.8 | 20.6 | 948 | 747 |
| 2×25 CC | 6 | 1.8 | 22.2 | 1301 | 988 |
| 2×35 CC | 7 | 1.8 | 23.7 | 1536 | 1104 |
| 2×50 SM | 8 | 1.8 | 25.7 | 1881 | 1295 |
| 2×70 SM | 9.5 | 1.9 | 29.4 | 2628 | 1781 |
| 2×95 SM | 11 | 2 | 32 | 3247 | 2074 |
| 2×120 SM | 12.4 | 2.2 | 34.7 | 3897 | 2413 |
| 2×150 SM | 13.8 | 2.3 | 38.9 | 4990 | 3168 |
| 2×185 SM | 15.4 | 2.4 | 42.2 | 5927 | 3638 |
| 2×240 SM | 17.5 | 2.6 | 46.5 | 6867 | 4318 |
| 2×300 SM | 19.6 | 2.8 | 51.2 | 7945 | 5118 |
| 3×4 RE | 2.24 | 1.8 | 17.1 | 621 | 546 |
| 3×6 RE | 2.76 | 1.8 | 17.8 | 700 | 591 |
| 3×10 CC | 3.8 | 1.8 | 19.5 | 885 | 695 |
| 3×16 CC | 4.8 | 1.8 | 21.5 | 1141 | 840 |
| 3×25 CC | 6 | 1.8 | 26.6 | 1670 | 1201 |
| 3×35 CC | 7 | 1.8 | 28.8 | 2033 | 1384 |
| 3×50 SM | 8 | 1.8 | 31.8 | 2513 | 1635 |
| 3×70 SM | 9.5 | 2 | 36.1 | 3502 | 2231 |
| 3×95 SM | 11 | 2.2 | 39.4 | 4392 | 2632 |
| 3×120 SM | 12.4 | 2.3 | 42.4 | 5258 | 3033 |
| 3×150 SM | 13.8 | 2.4 | 46.9 | 6706 | 3972 |
| 3×185 SM | 15.4 | 2.6 | 51.5 | 8104 | 4671 |
| 3×240 SM | 17.5 | 2.7 | 56.1 | 10062 | 5557 |
| 3×300 SM | 19.6 | 2.9 | 60.6 | 12082 | 6451 |
| 4×4 RE | 2.24 | 1.8 | 19.1 | 770 | 670 |
| 4×6 RE | 2.76 | 1.8 | 20.3 | 916 | 772 |
| 4×10 CC | 3.8 | 1.8 | 22.3 | 1148 | 895 |
| 4×16 CC | 4.8 | 1.8 | 24.5 | 1472 | 1070 |
| 4×25 CC | 6 | 1.8 | 27.5 | 1942 | 1317 |
| 4×35 CC | 7 | 1.8 | 29.5 | 2386 | 1521 |
| 4×50 SM | 8 | 1.9 | 32.9 | 3209 | 2036 |
| 4×70 SM | 9.5 | 2.1 | 36.7 | 4197 | 2502 |
| 4×95 SM | 11 | 2.3 | 40.5 | 5362 | 3016 |
| 4×120 SM | 12.4 | 2.4 | 45.3 | 6908 | 3940 |
| 4×150 SM | 13.8 | 2.6 | 50 | 8327 | 4683 |
| 4×185 SM | 15.4 | 2.7 | 54.2 | 10044 | 5466 |
| 4×240 SM | 17.5 | 2.9 | 60.4 | 12672 | 6666 |
| 4×300 SM | 19.6 | 3.1 | 65.7 | 15302 | 7795 |
| 3×4+1×2.5 RE | 2.24/1.78 | 1.8 | 17.4 | 649 | 558 |
| 3×6+1×4 RE | 2.76/2.24 | 1.8 | 18.6 | 769 | 651 |
| 3×10+1×6 CC | 3.8/2.76 | 1.8 | 20.3 | 989 | 763 |
| 3×16+1×10 CC | 4.8/3.8 | 1.8 | 22.5 | 1270 | 906 |
| 3×25+1×16 CC | 6.0/4.8 | 1.8 | 27.1 | 1857 | 1286 |
| 3×35+1×16 CC | 7.0/4.8 | 1.8 | 29.3 | 2234 | 1483 |
| 3×50+1×25 SM | 8.0/6.0 | 1.9 | 31.9 | 2828 | 1778 |
| 3×70+1×35 SM | 9.5/7.0 | 2 | 36.3 | 3928 | 2420 |
| 3×95+1×50 SM | 11.0/8.4 | 2.2 | 40 | 4956 | 2904 |
| 3×120+1×70 SM | 12.4/10.0 | 2.3 | 44.4 | 6408 | 3760 |
| 3×150+1×70 SM | 13.8/10.0 | 2.5 | 48.2 | 7456 | 4299 |
| 3×185+1×95 SM | 15.4/11.5 | 2.6 | 52.4 | 9081 | 5062 |
| 3×240+1×120 SM | 17.5/13.0 | 2.8 | 57.9 | 11292 | 6045 |
| 3×300+1×150 SM | 19.6/14.5 | 3 | 63 | 13648 | 7106 |
| 5×4 RE | 2.24 | 1.8 | 20.2 | 925 | 800 |
| 5×6 RE | 2.76 | 1.8 | 21.6 | 1098 | 918 |
| 5×10 CC | 3.8 | 1.8 | 23.8 | 1399 | 1083 |
| 5×16 CC | 4.8 | 1.8 | 26.3 | 1791 | 1289 |
| 5×25 CC | 6 | 1.8 | 33.5 | 2488 | 1706 |
| 5×35 CC | 7 | 1.9 | 37.7 | 3339 | 2258 |
| 5×50 SM | 8 | 2 | 38.2 | 3932 | 2468 |
| 5×70 SM | 9.5 | 2.3 | 41.9 | 5122 | 3004 |
| 5×95 SM | 11 | 2.4 | 47.9 | 7029 | 4096 |
| 5×120 SM | 12.4 | 2.6 | 52.2 | 8487 | 4778 |
| 5×150 SM | 13.8 | 2.7 | 55 | 10016 | 5460 |
| 5×185 SM | 15.4 | 2.9 | 60.5 | 12218 | 6495 |
| 5×240 SM | 17.5 | 3.1 | 66.5 | 15353 | 7845 |
| 5×300 SM | 19.6 | 3.4 | 73.7 | 19419 | 10034 |
| 4×4+1×2.5 RE | 2.24/1.78 | 1.8 | 19.6 | 826 | 710 |
| 4×6+1×4 RE | 2.76/2.24 | 1.8 | 20.8 | 986 | 815 |
| 4×10+1×6 CC | 3.8/2.76 | 1.8 | 22.8 | 1238 | 949 |
| 4×16+1×10 CC | 4.8/3.8 | 1.8 | 25.2 | 1603 | 1138 |
| 4×25+1×16 CC | 6.0/4.8 | 1.8 | 29 | 2183 | 1460 |
| 4×35+1×16 CC | 7.0/4.8 | 1.8 | 32.9 | 2720 | 1748 |
| 4×50+1×25 SM | 8.0/6.0 | 2 | 37.8 | 3844 | 2442 |
| 4×70+1×35 SM | 9.5/7.0 | 2.2 | 41.5 | 4902 | 2939 |
| 4×95+1×50 SM | 11.0/8.1 | 2.3 | 47.4 | 6683 | 4003 |
| 4×120+1×70 SM | 12.4/9.8 | 2.5 | 51.5 | 8098 | 4672 |
| 4×150+1×70 SM | 13.8/9.8 | 2.6 | 54.3 | 9453 | 5279 |
| 4×185+1×95 SM | 15.4/11.4 | 2.8 | 59.8 | 11457 | 6254 |
| 4×240+1×120 SM | 17.5/12.9 | 3 | 65.5 | 14205 | 7477 |
| 3×4+2×2.5 RE | 2.24/1.78 | 1.8 | 19.3 | 806 | 700 |
| 3×6+2×4 RE | 2.76/2.24 | 1.8 | 20.6 | 947 | 788 |
| 3×10+2×6 CC | 3.8/2.76 | 1.8 | 22.4 | 1178 | 916 |
| 3×16+2×10 CC | 4.8/3.8 | 1.8 | 24.7 | 1524 | 1096 |
| 3×25+2×16 CC | 6.0/4.8 | 1.8 | 28.9 | 2095 | 1429 |
| 3×35+2×16 CC | 7.0/4.8 | 1.8 | 32.9 | 2558 | 1705 |
| 3×50+2×25 CC | 8.0/6.0 | 1.9 | 37.6 | 3594 | 2347 |
| 3×70+2×35 CC | 9.5/7.0 | 2.1 | 41.4 | 4573 | 2829 |
| 3×95+2×50 CC | 11.0/8.1 | 2.3 | 45.9 | 5800 | 3402 |
| 3×120+2×70 CC | 12.4/9.8 | 2.4 | 51.3 | 7608 | 4493 |
| 3×150+2×70 CC | 13.8/9.8 | 2.5 | 54 | 8676 | 5000 |
| 3×185+2×95 CC | 15.4/11.4 | 2.7 | 59.5 | 10535 | 5894 |
| 3×240+2×120 CC | 17.5/12.9 | 2.9 | 65.3 | 13038 | 7056 |
| 3×300+2×150 CC | 19.6/14.5 | 3.1 | 71.1 | 15751 | 8275 |
Range of production
Number of cores: 1, 2, 3, 4, 5, 2+E, 3+E, 4+E;
Nominal cross-section （mm2）: 0.5 ~ 800;
