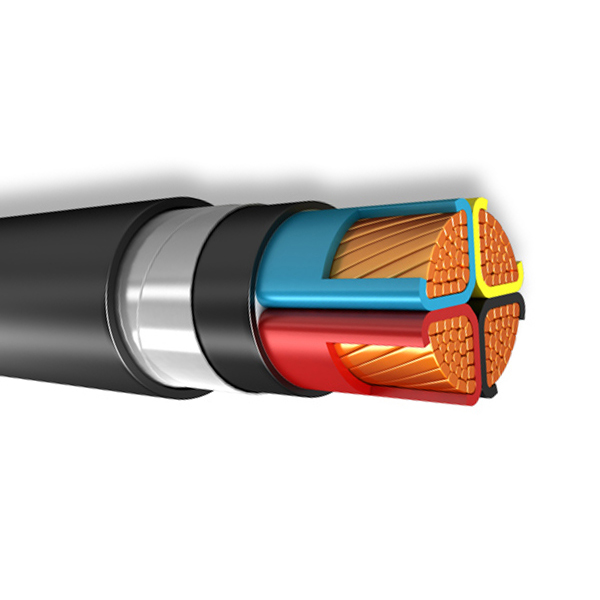

0.6/1kV XLPE Insulated Steel Tape Armoured Cable

Copper or Aluminum Low voltage xlpe power cable

Application

XLPE(Cross linked polyethylene) cable constitutes the best cable for transmission and distribution lines because of its excellent electrical and physical properties. These cables has the advantage of simplicity in construction, lightness in weight; convenience in application besides its excellent electrical, thermal, mechanical and anti-chemical corrosion properties. It can also be laid with no limitation of level difference along the route.

Share This Page

ABC Cable / Aerial Bundled Cable

Airport Lighting Cable

Bare overhead conductor

Concentric Service Cable

Control Cable

Installation / Building Cable

Low Voltage Cable

Medium Voltage Cable

Solar Cable

Standards

GB/12706.1, IEC60502-1, BS 6724, BS 7870-5，BS 5467, NFC 32-321, HD 603 S1 , AS/NZS 5000.1，AS/NZS 3599.1，AS/NZS 3599.2，IS 1554 , IS 7098 and ICEA S-66-524 etc.

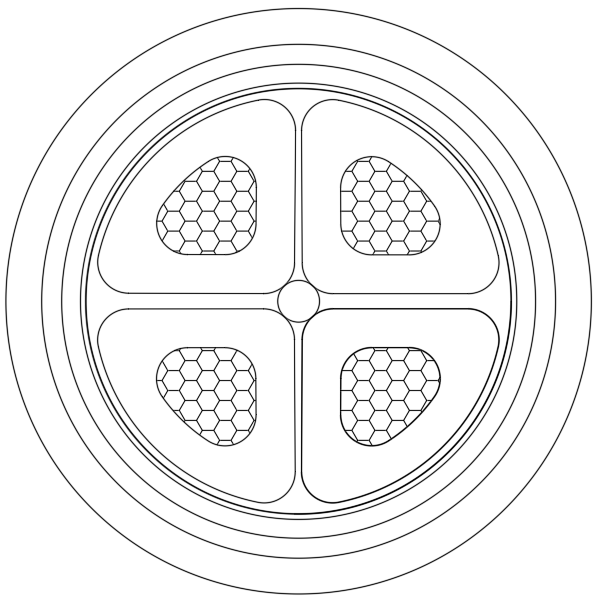

Construction

Conductor: Circular, solid, compacted or sector shaped stranded Copper or aluminum

Insulation: XLPE

Filler: non-hygroscopic material

Binder tape: non-hygroscopic material

Sheath: PVC

Characteristics

The product is suitable for power transmission and distribution lines with rated power frequency voltage 0.6/1 kV.

Rated voltages U0/U(Um): 0.6/1 (1.2)kV.
Note：
U0: Rated power-frequency voltage between conductor and earth or armour, metal sheath or screen for which the cable is suitable.
U: Rated power-frequency voltage between phase conductors for which the cable is suitable.
Um: Maximum value of the highest system voltage between phase conductors for which the cable is suitable.
Test Voltage: 3.5kV 5min No Breakdown, according to IEC60502-1.
The ambient temperature for installation: ≥0℃.
Maximum conductor temperature in normal operation:≤90℃.
Max operating temperature of con. When cable short-circuited(5s maximum duration): 250℃.
Permissible minimum bending radius:
Single unarmoured cable: 20 x OD
Multi-core unarmoured cable: 15 x OD
Single armoured cable: 5 x OD
Multi-core armoured cable: 12 x OD
Note : OD=Overall Diameter of Cable

Specifications

Product type

General type	VDE type	Description	Application
CU/XLPE/PVC (AL/ XLPE /PVC)	N2XY(NA2XY)	Cu conductor（Al conductor）XLPE insulated PVC sheathed power cable	Laying indoors, in tunnel, fixed on the bracket, pipe and buried in the soil, the cable cannot bear external mechanical forces.
CU/PVC/PE (AL/ XLPE /PE)	N2X2Y(NA2X2Y)	Cu conductor（Al conductor）XLPE insulated PE sheathed power cable
CU/ XLPE /STA/PVC (AL/XLPE/STA/PVC)	N2XBY(NA2XBY)	Cu conductor（Al conductor）XLPE insulated double of steel-tape armored PVC sheathed power cable	For laying indoors, in tunnel, cable trench, or direct in ground, able to bear external mechanical forces, but unable to bear large pulling force.
CU/XLPE/STA/PE (AL/XLPE/STA/PE)	N2XB2Y(NA2XB2Y)	Cu conductor（Al conductor）XLPE insulated double of steel-tape armored PE sheathed power cable
CU/XLPE/ATA/PVC (AL/XLPE/ATA/PVC)	N2XBY(NA2XBY)	Cu conductor（Al conductor）XLPE insulated double of aluminum-tape armored PVC sheathed power cable
CU/XLPE/ATA/PE (AL/XLPE/ATA/PE)	N2XB2Y(NA2XB2Y)	Cu conductor（Al conductor）XLPE insulated double of aluminum-tape armored PE sheathed power cable
CU/XLPE/SWA/PVC (AL/XLPE/SWA/PVC)	N2XRY(NA2XRY)	Cu conductor（Al conductor）XLPE insulated steel-wire armored PVC sheathed power cable	For laying indoors, in tunnel, cable trench, well or direct in ground, able to bear external mechanical forces and certain pulling force
CU/XLPE/SWA/PE (AL/PVC/SWA/PE)	N2XR2Y(NA2XR2Y)	Cu conductor（Al conductor）XLPE insulated steel-wire armored PE sheathed power cable
CU/XLPE/AWA/PVC (AL/XLPE/AWA/PVC)	N2XRY(NA2XRY)	Cu conductor（Al conductor）XLPE insulated aluminum-wire armored PVC sheathed power cable
CU/XLPE/AWA/PE (AL/XLPE/AWA/PE)	N2XR2Y(NA2XR2Y)	Cu conductor（Al conductor）XLPE insulated aluminum-wire armored PE sheathed power cable

Product parameters

Specification mm2	Outer diameter of conductor mm	Nominal sheath thickness mm	Approx. outer diameter of cable mm	Approx. weight of cable kg/km
Specification mm2	Outer diameter of conductor mm	Nominal sheath thickness mm	Approx. outer diameter of cable mm	CU	AL
1×4 RE	2.24	1.8	9.7	166.4	141.7
1×6 RE	2.76	1.8	10.2	195.4	158.3
1×10 CC	3.8	1.8	11.2	253.8	191.9
1×16 CC	4.8	1.8	12.2	329	230
1×25 CC	6	1.8	13.8	447.7	293.1
1×35 CC	7	1.8	14.8	559.1	342.6
1×50 CC	8.4	1.8	16.4	731	421.6
1×70 CC	10	1.8	18.2	952.7	519.7
1×95 CC	11.5	1.8	19.7	1209.6	621.9
1×120 CC	13	1.8	21.4	1474.9	732.5
1×150 CC	14.5	1.8	23.3	1794.5	866.5
1×185 CC	16.2	1.8	25.4	2165.5	1020.9
1×240 CC	18.4	1.8	27.8	2721.5	1236.7
1×300 CC	20.5	1.9	30.3	3328.8	1472.7
1×400 CC	23.5	2	33.9	4337.3	1862.5
1×500 CC	26.5	2.2	38.9	5729.3	2635.8
1×630 CC	30	2.3	43	7076.7	3178.9
2×4 RE	2.24	1.8	13.3	290.1	240.4
2×6 RE	2.76	1.8	14.3	353.2	278.6
2×10 CC	3.8	1.8	16.4	498.5	374.1
2×16 CC	4.8	1.8	18.4	649.6	450.6
2×25 CC	6	1.8	21.6	887.9	577
2×35 CC	7	1.8	23.6	1116.5	681.3
2×50 SM	8	1.8	21	1304.8	683
2×70 SM	9.5	1.9	23.8	1741.1	870.6
2×95 SM	11	2	26.6	2264.3	1082.9
2×120 SM	12.4	2.2	30.6	3082.5	1590.2
2×150 SM	13.8	2.3	33.8	3763.8	1898.4
2×185 SM	15.4	2.4	37.1	4543.7	2243.1
2×240 SM	17.5	2.6	41.7	5809.3	2824.7
2×300 SM	19.6	2.8	45.8	7086.2	3355.4
3×4 RE	2.24	1.8	13.9	342.1	267.5
3×6 RE	2.76	1.8	15	430.7	318.8
3×10 CC	3.8	1.8	17.2	599	412.4
3×16 CC	4.8	1.8	19.4	829.9	531.5
3×25 CC	6	1.8	22.8	1160.4	694
3×35 CC	7	1.8	25	1479.2	826.3
3×50 SM	8	1.8	24	1854.1	921.4
3×70 SM	9.5	2	27.6	2496.1	1190.3
3×95 SM	11	2.2	32	3559.4	1787.3
3×120 SM	12.4	2.3	35.8	4389.8	2151.4
3×150 SM	13.8	2.4	40.1	5393.2	2595.1
3×185 SM	15.4	2.6	45	6648.4	3197.4
3×240 SM	17.5	2.7	49.8	8375	3898.1
3×300 SM	19.6	2.9	54.5	10239.5	4643.3
4×4 RE	2.24	1.8	14.8	404.7	305.2
4×6 RE	2.76	1.8	16	517.4	368.1
4×10 CC	3.8	1.8	18.6	718.8	470
4×16 CC	4.8	1.8	21	989.4	591.4
4×25 CC	6	1.8	24.8	1435	813.2
4×35 CC	7	1.8	27.3	1852.2	981.7
4×50 SM	8	1.9	28.1	2423	1179.4
4×70 SM	9.5	2.1	33.4	3581.9	1840.9
4×95 SM	11	2.3	36.7	4619.5	2256.7
4×120 SM	12.4	2.4	39.9	5665.1	2680.5
4×150 SM	13.8	2.6	45	7072.1	3341.4
4×185 SM	15.4	2.7	50.6	8619.1	4017.8
4×240 SM	17.5	2.9	55.2	10854.3	4885
4×300 SM	19.6	3.1	60.4	13300.9	5839.4
3×4+1×2.5 RE	2.24/1.78	1.8	14.5	385.7	295.6
3×6+1×4 RE	2.76/2.24	1.8	15.7	493.5	356.7
3×10+1×6 CC	3.8/2.76	1.8	17.9	674.4	450.5
3×16+1×10 CC	4.8/3.8	1.8	20.4	927.9	567.3
3×25+1×16 CC	6.0/4.8	1.8	23.9	1330.5	764.7
3×35+1×16 CC	7.0/4.8	1.8	25.6	1637.3	884.9
3×50+1×25 SM	8.0/6.0	1.9	26.9	2179	1090.8
3×70+1×35 SM	9.5/7.0	2	30.7	2919.2	1395.8
3×95+1×50 SM	11.0/8.4	2.2	35.1	4168.5	2085.5
3×120+1×70 SM	12.4/10.0	2.3	38.1	5162.8	2489.1
3×150+1×70 SM	13.8/10.0	2.5	42.1	6157.5	2924.2
3×185+1×95 SM	15.4/11.5	2.6	48.3	7698.6	3656.9
3×240+1×120 SM	17.5/13.0	2.8	52.6	9642.7	4419.6
3×300+1×150 SM	19.6/14.5	3	57.5	11802.7	5273.9
5×4 RE	2.24	1.8	15.9	469.2	344.8
5×6 RE	2.76	1.8	17.2	606.2	419.7
5×10 CC	3.8	1.8	20	855.9	545
5×16 CC	4.8	1.8	22.7	1187.9	690.5
5×25 CC	6	1.8	27.1	1727.8	950.6
5×35 CC	7	1.9	29.9	2254.2	1166.1
5×50 SM	8	2	30.1	2959.5	1405.1
5×70 SM	9.5	2.3	35.9	4351.4	2175.1
5×95 SM	11	2.4	39.7	5633	2679.5
5×120 SM	12.4	2.6	44.3	7051.9	3321.1
5×150 SM	13.8	2.7	50	8701.5	4038.1
5×185 SM	15.4	2.9	55	10574.3	4822.7
5×240 SM	17.5	3.1	61.3	13396.6	5935.1
5×300 SM	19.6	3.4	67	16433	7106.1
4×4+1×2.5 RE	2.24/1.78	1.8	15.6	451	335.9
4×6+1×4 RE	2.76/2.24	1.8	17	583.1	409
4×10+1×6 CC	3.8/2.76	1.8	19.5	808.5	522.4
4×16+1×10 CC	4.8/3.8	1.8	22.2	1123.3	663.2
4×25+1×16 CC	6.0/4.8	1.8	26.2	1625.6	904.3
4×35+1×16 CC	7.0/4.8	1.8	28.4	2042.5	1072.5
4×50+1×25 SM	8.0/6.0	2	27.4	2656.8	1257.7
4×70+1×35 SM	9.5/7.0	2.2	32.4	3897.6	1939
4×95+1×50 SM	11.0/8.1	2.3	36	5082.3	2408.6
4×120+1×70 SM	12.4/9.8	2.5	40	6347.3	2927.5
4×150+1×70 SM	13.8/9.8	2.6	44.5	7733.3	3567.3
4×185+1×95 SM	15.4/11.4	2.8	49	9473.7	4281.8
4×240+1×120 SM	17.5/12.9	3	54.6	11980.2	5264.8
4×300+1×150 SM	19.6/14.5	3.2	60	14723.3	6329
3×4+2×2.5 RE	2.24/1.78	1.8	15.3	431.5	325.8
3×6+2×4 RE	2.76/2.24	1.8	16.7	558.7	397.1
3×10+2×6 CC	3.8/2.76	1.8	18.9	759.4	498.2
3×16+2×10 CC	4.8/3.8	1.8	21.7	1056.9	634.1
3×25+2×16 CC	6.0/4.8	1.8	25.3	1521	855.7
3×35+2×16 CC	7.0/4.8	1.8	27	1829.3	977.5
3×50+2×25 CC	8.0/6.0	1.9	27.3	2433.3	1189.7
3×70+2×35 CC	9.5/7.0	2.1	30.9	3264.8	1523.8
3×95+2×50 CC	11.0/8.1	2.3	35.9	4672.1	2278.2
3×120+2×70 CC	12.4/9.8	2.4	39.9	5891.2	2782.2
3×150+2×70 CC	13.8/9.8	2.5	43.5	6873.4	3204.8
3×185+2×95 CC	15.4/11.4	2.7	48.8	8622.4	3990.1
3×240+2×120 CC	17.5/12.9	2.9	54.3	10847.9	4878.6
3×300+2×150 CC	19.6/14.5	3.1	59.7	13332.2	5870.6

Range of production

Number of cores: 1, 2, 3, 4, 5, 2+E, 3+E, 4+E;
Nominal cross-section （mm2）: 0.5 ~ 800;
