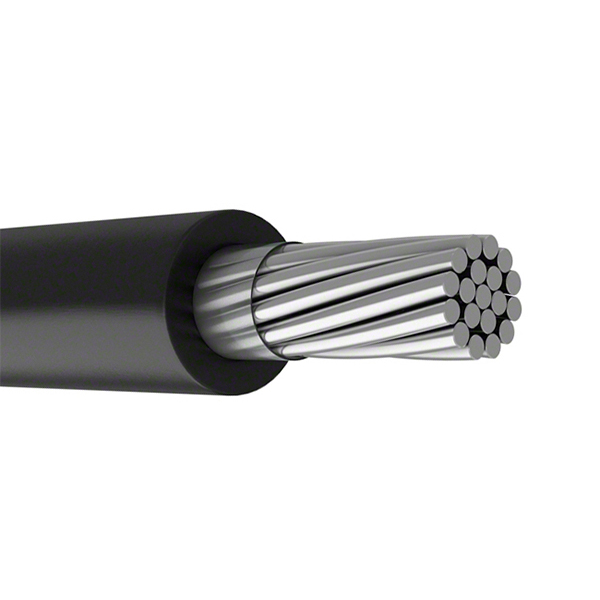

Covered Line Wire, Aluminium conductor ABC cable

0.6/1kV Covered Line Wire, Overhead Covered Conductor ICEA S-70-547

600V Aerical Line with Aluminum Conductor

Application

The cable is used primarily for overhead and distribution line, or to supply 120/220V aerial service for tem service at construction sites, as a service drop (power pole to service entrance) as a secondary cable (pole to pole), or street lighting. For service at 1000V or lower at a maximum conductor temperature of 75℃ or 90℃

Share This Page

ABC Cable / Aerial Bundled Cable

Airport Lighting Cable

Bare overhead conductor

Concentric Service Cable

Control Cable

Installation / Building Cable

Low Voltage Cable

Medium Voltage Cable

Solar Cable

Standards

ASTM B-230-Aluminum 1350-H19 wire for electrical purposes
ASTM B-398-Aluminum alloy 6201-T81 wire for electrical purposes
ASTM B-399-Concentric-lay-stranded 6201-T81 aluminum alloy conductors
ASTM B-231-Concentric-lay-stranded aluminum conductors, coated-steel reinforced (ACSR).
ASTM B-1248-Polyethylene plastics molding and extrusion materials.
ASTM C-8.35-Specifications for weather-resistant polyethylene-covered wire and cable.
ICEA S-61-402-Standards publication thermoplastic insulated wire and cable for the transmission and distribution of electrical energy
ICEA S-70-547-Standards for weather-resistant polyethylene covered conductors

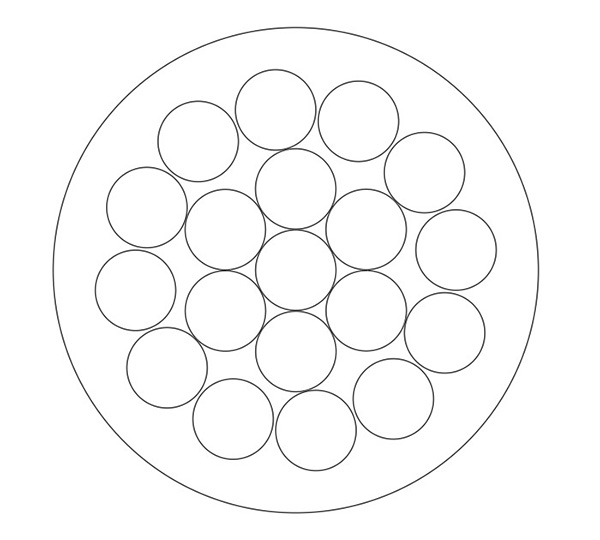

Construction

Conductors: AAC/AAAC/ACSR.

Insulation: PE/XLPE/PVC, UV-resistant.

Characteristics

Voltage rating: 600V
Test voltage: 4kV, 5min no breakdown
Operating temperature:
PVC: -15°C to +75°C
PE: -40°C to +75°C
XLPE: -40°C to +90°C
Minimum laying/installation temperature:
PVC: 0°C
PE: -20°C
XLPE: -20°C
Minimum bending radius: 12 x OD (overall diameter)

Specifications

Code	AWG or Kcmil	No. of Wires	Nominal Diameter mm	Nominal Weight kg/km			Max. DC conductor resistance at 20℃ Ω/km
Code	AWG or Kcmil	No. of Wires	Nominal Diameter mm	LDPE	XLPE	HDPE	Max. DC conductor resistance at 20℃ Ω/km
AAC
Plum	6	7	6.198	50.66	51.27	51.27	2.2126
Apricot	4	7	7.239	75.57	76.33	76.33	1.3896
Peach	2	7	9.703	126.09	127.55	127.55	0.8749
Nectarine	1	7	11.481	167.31	169.52	169.52	0.6934
Quince	1/0	7	12.395	203.7	206.14	206.14	0.5498
Haw	1/0	19	12.522	204.49	209.96	206.96	0.5498
Orange	2/0	7	13.561	257.9	261.02	261.02	0.4361
Ironwood	2/0	19	13.691	250.41	253.21	253.21	0.4361
Fig	3/0	7	14.849	315.53	319.08	319.08	0.3458
Lemon	3/0	19	14.986	306.53	309.7	309.7	0.3458
Olive	4/0	7	16.307	378.04	381.58	381.58	0.2742
Pomegranate	4/0	19	16.459	379.09	382.69	382.69	0.2742
Sassafras	250	19	17.628	439.88	443.84	443.84	0.2321
Mulberry	266.8	19	17.653	463.59	467.55	467.55	0.2176
Basswood	300	19	18.999	520.91	525.3	525.3	0.1935
Anona	336.4	19	19.964	578.04	582.75	582.75	0.1725
Chinquapin	350	19	20.269	598.98	603.79	603.79	0.1659
Molles	397.5	19	22.454	707.29	713.88	713.88	0.146
Sumac	450	19	23.673	791.79	798.89	798.89	0.1289
Huckleberry	477	37	24.257	834.63	841.98	841.98	0.1217
AAAC
Maple	6	7	6.553	59.53	61.01	61.01	2.5703
Hornbeam	4	7	7.874	89.29	90.78	92.12	1.614
Linden	2	7	10.312	147.33	147.33	148.82	1.0141
Oilnut	1/0	7	11.887	238.11	247.03	247.03	0.6381
Waterash	2/0	7	14.402	291.68	302.01	302.01	0.5058
Shellbark	3/0	7	15.799	358.65	370.55	370.55	0.4015
Planetree	4/0	7	17.348	443.47	456.86	456.86	0.3181
ACSR
Walnut	6	6/1	6.553	69.94	71.43	71.43	2.2018
Butternut	4	6/1	7.874	107.15	107.15	108.64	1.3828
Hickory	4	6/1	8.052	120.54	122.03	123.52	1.3828
Pignut	2	6/1	10.312	175.60	177.09	178.58	0.8706
Beech	2	7/1	10.643	199.41	199.41	202.39	0.8706
Chestnut	1	6/1	11.303	217.27	218.76	220.25	0.6902
Almond	1/0	6/1	13.157	282.75	284.24	287.21	0.5471
Pecan	2/0	6/1	14.402	348.23	349.72	349.72	0.434
Filbert	3/0	6/1	15.799	430.08	433.05	437.52	0.344
Buckeye	4/0	6/1	17.343	531.27	535.74	540.20	0.2729
Hackberry	266.8	18/1	18.517	525.32	528.30	534.25	0.2176
