0.6/1kV Aerial Bundle Cable NFC 33-209

Overhead Power Distribution ABC Cable With AAC conductor

Application

Aerial bundle cable (ABC) low voltage cable for overhead power distribution offering higher level of safety and reliability and lower power losses than bare conductors.

Share This Page

ABC Cable / Aerial Bundled Cable

Airport Lighting Cable

Bare overhead conductor

Concentric Service Cable

Control Cable

Installation / Building Cable

Low Voltage Cable

Medium Voltage Cable

Solar Cable

Standards

NFC 33-209

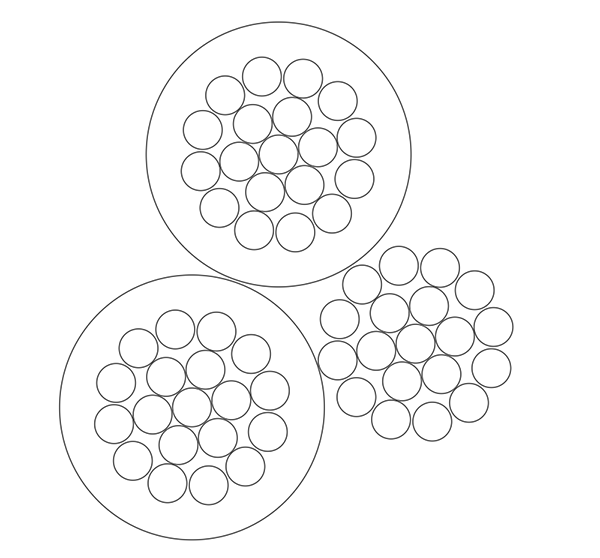

Construction

Phase conductors: AAC

Insulation: XLPE, UV-resistant.

Neutral-supported: AAAC

Street lighting conductor: AAC

Core identification: Ribs or numbers or colors stripe.

Characteristics

Voltage rating: 0.6/1kV
Test voltage: 4kV, 5min no breakdown.
Operating temperature: -40°C to +90°C
Minimum laying/installation temperature: -20°C
Minimum bending radius: 12 x OD (overall diameter)

Specifications

Number of Cores x Nominal Cross Section No.×mm²	Approx. Overall Diameter mm	Approx. Weight Kg/Km	Max. DC Conductor resistance at 20℃ Ω/Km	Minimum Breaking Load kN	Current Rating A
2×10 RM	12.8	93	3.08	1.5	38
4×10 RM	15.4	183	3.08	1.5	38
2×16 RM	14.8	129	1.91	2.3	72
2×16 RN + 2×1.5 RE	14.8	176	1.91/12.1	2.3	72
4×16 RM	17.8	257	1.91	2.3	72
4×16 RN + 2×1.5 RE	17.8	304	1.91/12.1	2.3	72
2×25 RM	18	202	1.2	3.8	107
2×25 RM + 2×1.5 RE	18	249	1.20/12.1	3.8	107
4×25 RM	21.7	404	1.2	3.8	107
4×25 RM + 2×1.5 RE	21.7	451	1.20/12.1	3.8	107
2×35 RM	20.8	269	0.868	5.2	132
2×35 RM + 2×1.5 RE	20.8	316	0.868/12.1	5.2	132
4×35 RM	25.1	539	0.868	5.2	132
4×35 RM + 2×1.5 RE	25.1	586	0.868/12.1	5.2	132
2×50 RM	23.4	352	0.641	7.6	165
2×50 RM + 2×1.5 RE	23.4	399	0.641/12.1	7.6	165
1×54.6 RM + 3×25 RM	21.7	507	0.630/1.20	3.8	107
1×54.6 RM + 3×25 RM + 1×16 RM	24.3	573	0.630/1.20/1.91	3.8/2.3	107/72
1×54.6 RM + 3×25 RM + 2×16 RM	29.7	639	0.630/1.20/1.91	3.8/2.3	107/72
1×54.6 RM + 3×25 RM + 3×16 RM	31.1	705	0.630/1.20/1.91	3.8/2.3	107/72
1×54.6 RM + 3×35 RM	25.1	615	0.630/0.868	5.2	132
1×54.6 RM + 3×35 RM + 1×16 RM	28.1	680	0.630/0.868/1.91	5.2/2.3	132/72
1×54.6 RM + 3×35 RM + 2×16 RM	34.3	748	0.630/0.868/1.91	5.2/2.3	132/72
1×54.6 RM + 3×35 RM + 3×16 RM	35.9	814	0.630/0.868/1.91	5.2/2.3	132/72
1×54.6 RM + 3×35 RM + 1×25 RM	28.1	714	0.630/0.868/1.20	5.2/3.8	132/107
1×54.6 RM + 3×50 RM	28.2	741	0.630/0.641	7.6	165
1×54.6 RM + 3×50 RM + 1×16 RM	31.6	806	0.630/0.641/1.91	7.6/2.3	165/72
1×54.6 RM + 3×50 RM + 2×16 RM	38.6	875	0.630/0.641/1.91	7.6/2.3	165/72
1×54.6 RM + 3×50 RM + 3×16 RM	40.4	940	0.630/0.641/1.91	7.6/2.3	165/72
1×54.6 RM + 3×50 RM + 1×25 RM	31.6	841	0.630/0.641/1.20	7.6/3.8	165/107
1×54.6 RM + 3×70 RM	33	950	0.630/0.443	10.2	205
1×54.6 RM + 3×70 RM + 1×16 RM	37	1014	0.630/0.443/1.91	10.2/2.3	205/72
1×54.6 RM + 3×70 RM + 2×16 RM	45.2	1083	0.630/0.443/1.91	10.2/2.3	205/72
1×54.6 RM + 3×70 RM + 3×16 RM	47.3	1148	0.630/0.443/1.91	10.2/2.3	205/72
1×54.6 RM + 3×70 RM + 1×25 RM	37	1048	0.630/0.443/1.20	10.2/3.8	205/107
1×54.6 RM + 3×70 RM + 2×25 RM	45.2	1150	0.630/0.443/1.20	10.2/3.8	205/107
1×54.6 RM + 3×70 RM + 3×25 RM	47.3	1250	0.630/0.443/1.20	10.2/3.8	205/107
1×54.6 RM + 3×95 RM	37.4	1176	0.630/0.320	13.5	240
1×54.6 RM + 3×95 RM + 1×16 RM	41.9	1243	0.630/0.320/1.91	13.5/2.3	240/72
