Professional Aerial Bundled Cable (ABC Cable) Manufacturer

We export cables to countries all around the world.



Please click on ‘Get a Quote‘ at the top right corner of the webpage. You will receive one-on-one professional technical support and quotation services.

Professional Aerial Bundled Cable ABC Cable Manufacturer Xinfeng Cable

Aerial Bundle Cable (ABC Cable) Application

Aerial Bundled Cable (ABC) is a type of overhead power line that consists of multiple insulated conductors bundled together, usually with a bare or insulated neutral conductor. Unlike traditional overhead power lines that use bare conductors, ABCs are designed with insulation around each conductor to improve safety, reliability, and efficiency. They are commonly used for power distribution in urban, suburban, and rural areas. The insulation helps to reduce electrical losses, minimize outages caused by external factors such as weather, trees, and wildlife, and enhance overall system reliability. ABCs are particularly beneficial in densely populated or forested areas where safety and space constraints are a concern.

(Click on this link to see Wikipedia’s explanation of Aerial Bundled Cable)

Aerial Bundled Cable (ABC) is known by various names in different regions. Here are some of the common names:

  • Aerial Bundled Conductor
  • ABC Cable
  • Aerial Bundled Conductors
  • Aerial Insulated Cable
  • Aerial Bunched Conductor
  • Bundle Conductor Cable
  • Covered Line Wire
  • Service Drop Cable
  • Self-supporting Cable



Low Voltage Aerial Bundle Cable (LV ABC Cable):

Low Voltage Aerial Bundled Cable (LV ABC) is designed for overhead power distribution systems that operate at voltages typically below 1 kV. These cables consist of several insulated phase conductors bundled together, often with a bare or insulated neutral conductor. LV ABC cables are commonly used for the following applications:

Urban and Rural Power Distribution: Ideal for distributing electricity in densely populated areas where space is limited and safety is paramount.
Improved Safety: Insulation on the conductors minimizes the risk of electric shocks and short circuits, especially in areas where the cables might come into contact with trees, buildings, or other structures.
Reduced Maintenance: Insulated conductors are less prone to weather-related damage and faults caused by external interference, reducing maintenance needs and improving reliability.



Medium Voltage Aerial Bundle Cable (MV ABC Cable):

Medium Voltage Aerial Bundled Cable (MV ABC) is used for overhead power distribution systems that operate at voltages typically between 1 kV and 35 kV. These cables are similar in construction to LV ABC cables but are designed to handle higher voltage levels. Key features and applications include:

Rural Electrification: Often used in rural and remote areas where long-distance power distribution is necessary and traditional underground cables would be too costly or impractical.
Safety and Reliability: Insulated conductors enhance safety and reduce the risk of outages caused by external factors such as weather or animals.
Reduced Right-of-Way Requirements: The bundled design of MV ABC cables requires less physical space compared to traditional overhead lines, making them suitable for areas with limited right-of-way.
Both LV and MV ABC cables offer significant advantages in terms of safety, reliability, and maintenance, making them popular choices for modern power distribution networks.



Construction of Aerial Bundle Cable (ABC Cable)



Item Core Drawing Component Description






















Low Voltage Aerial Bundle Cable
(LV ABC Cable)





1 Core



1 core LV Aerial Bundled Cable Xinfeng Cable



– Conductor: Aluminium or Aluminium Alloy
– Insulation: PE, PVC, XLPE or HDPE
– Messenger Wire (if applicable): Galvanized Steel or Aluminium Alloy





2 Core



2 core LV Aerial Bundled Cable - Xinfeng Cable2



– Conductor: Aluminium or Aluminium Alloy
– Insulation: PE, PVC, XLPE or HDPE
– Messenger Wire: Galvanized Steel or Aluminium Alloy







3 Core



3 core LV Aerial Bundled Cable - Xinfeng Cable





– Conductor: Aluminium or Aluminium Alloy
– Insulation: PE, PVC, XLPE or HDPE
– Messenger Wire: Galvanized Steel or Aluminium Alloy
– Neutral Conductor (optional): Aluminium or Aluminium Alloy





4 Core



4 core LV Aerial Bundled Cable - Xinfeng Cable

– Conductor: Aluminium or Aluminium Alloy
– Insulation: PE, PVC, XLPE or HDPE
– Messenger Wire: Galvanized Steel or Aluminium Alloy
– Neutral Conductor: Aluminium or Aluminium Alloy





5 Core



5 core LV Aerial Bundled Cable - Xinfeng Cable2



– Conductor: Aluminium or Aluminium Alloy
– Insulation: PE, PVC, XLPE or HDPE
– Messenger Wire: Galvanized Steel or Aluminium Alloy
– Neutral Conductor: Aluminium or Aluminium Alloy
– Additional Grounding Conductor (if applicable): Copper or Aluminium







6 Core



6 core LV Aerial Bundled Cable - Xinfeng Cable2







More cores are all Avilable, Please feel free to contact Xinfeng Cable.











Medium Voltage Aerial Bundle Cable
(MV ABC Cable)







1 Core



1 core MV Aerial Bundled Cable - Xinfeng Cable2



– Conductor: Aluminium or Aluminium Alloy
– Conductor Shield: Extruded Semi-Conductive Compound
– Insulation: PE, PVC, XLPE or HDPE
– Insulation Shield: Extruded Semi-Conductive Compound
– Screening: Copper Tape
– Outer Sheath: UV Stabilized PE (Polyethylene) or PVC (Polyvinyl Chloride
– Messenger Wire: Galvanized Steel or Aluminium Alloy (if self-supporting)

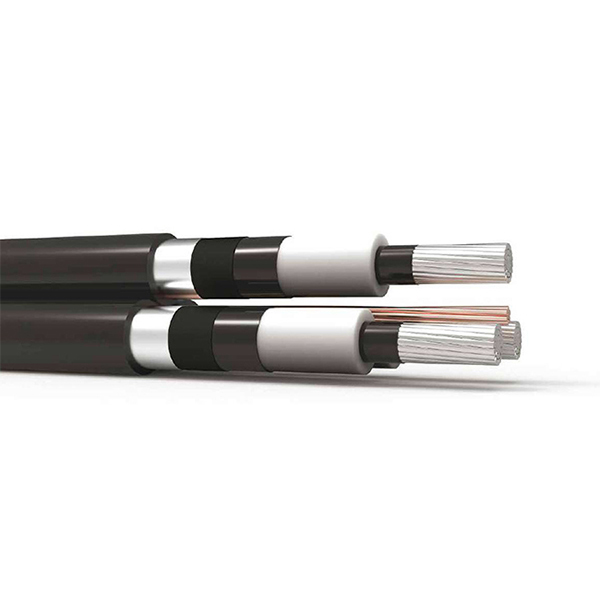

3 Core + Messenger Wire



3 core MV Aerial Bundled Cable - Xinfeng Cable2



– Conductor: Aluminium or Aluminium Alloy
– Conductor Shield: Extruded Semi-Conductive Compound
– Insulation: PE, PVC, XLPE or HDPE
– Insulation Shield: Extruded Semi-Conductive Compound
– Screening: Copper Tape
– Outer Sheath: UV Stabilized PE (Polyethylene) or PVC (Polyvinyl Chloride
– Messenger Wire: Galvanized Steel or Aluminium Alloy (if self-supporting)

However, Xinfeng can also supply a range of alternative designs to meet customer-specified requirements. Please click this link to see more of Xinfeng Cable’s Aerial Bundled Cable demonstrations.



The Manufacturer for Professional Aerial Bundled Cable (ABC Cable)



Xinfeng Cable is a leading manufacturer specializing in Aerial Bundled Cables (ABC). Founded in 1996, Xinfeng has established a strong reputation in the wire and cable industry, leveraging over two decades of experience and expertise. The company’s state-of-the-art manufacturing facility spans 100,000 square meters and is equipped with over 500 advanced production machines, ensuring the highest standards of quality and efficiency.
Serving a worldwide market, Xinfeng Cable provides tailored solutions for project bidders, wholesalers, and contractors. The company offers comprehensive logistics services, ensuring efficient delivery and support for international customers. Xinfeng Cable’s products have been exported to numerous countries and regions experiencing significant growth in the power sector.
