Medium Voltage Cable – 3.6kv~ 35kV Competitive Price Cables Manufacturer :Xinfeng Cable
Medium voltage cables are an important part of the power infrastructure, bridging the gap between low voltage distribution and high voltage transmission systems. These cables efficiently transport power over the voltage range of 3.6 kilovolts (kV) to 35 kilovolts (kV). They play an important role in ensuring the reliable and safe distribution of electricity for applications ranging from industrial facilities and commercial buildings to utility networks and renewable energy projects.
Medium Voltage Product Type
| Chinese Type | General Type | VDE Type | Description | Application |
| YJV (YJLV) | CU/XLPE/PVC (AL/XLPE/PVC) | N2XSY N2XSEY (NA2XSY NA2XSEY) | Cu conductor（Al conductor）XLPE insulated PVC sheathed power cable | Laying indoors, in tunnel, fixed on the bracket, pipe and buried in the soil, the cable can not bear external mechanical forces. |
| YJY (YJLY) | CU/XLPE/PE (AL/XLPE/PE) | N2XS2Y N2XSE2Y (NA2XS2Y NA2XSE2Y) | Cu conductor（Al conductor）XLPE insulated PE sheathed power cable | |
| YJV22 (YJLV22) | CU/XLPE/STA/PVC (AL/XLPE/STA/PVC) | N2XSBY N2XSEBY (NA2XSBY NA2XSEBY) | Cu conductor（Al conductor）XLPE insulated double of steel-tape armored PVC sheathed power cable | For laying indoors, in tunnel, cable trench, or direct in ground, able to bear external mechanical forces, but unable to bear large pulling force. |
| YJV23 (YJLV23) | CU/XLPE/STA/PE (AL/XLPE/STA/PE) | N2XSB2Y N2XSEB2Y (NA2XSB2Y NA2XSEB2Y) | Cu conductor（Al conductor）XLPE insulated double of steel-tape armored PE sheathed power cable | |
| YJV62 (YJLV62) | CU/XLPE/ATA/PVC (AL/XLPE/ATA/PVC) | N2XSBY N2XSEBY (NA2XSBY NA2XSEBY) | Cu conductor（Al conductor）XLPE insulated double of aluminium-tape armored PVC sheathed power cable | |
| YJV32 (YJLV32) | CU/XLPE/SWA/PVC (AL/XLPE/SWA/PVC) | N2XSRY N2XSERY (NA2XSRY NA2XSERY) | Cu conductor（Al conductor）XLPE insulated steel-wire armored PVC sheathed power cable | For laying indoors, in tunnel, cable trench, well or direct in ground, able to bear external mechanical forces and certain pulling force |
| YJV33 (YJLV33) | CU/XLPE/SWA/PE (AL/XLPE/SWA/PE) | N2XSR2Y N2XSER2Y (NA2XSR2Y NA2XSER2Y) | Cu conductor（Al conductor）XLPE insulated steel-wire armored PE sheathed power cable | |
| YJV72 (YJLV72) | CU/XLPE/AWA/PVC (AL/XLPE/AWA/PVC) | N2XSRY N2XSERY (NA2XSRY NA2XSERY) | Cu conductor（Al conductor）XLPE insulated aluminium-wire armored PE sheathed power cable |
Medium Voltage Cable Range
|
No.of cores |
3.6/6（7.2） |
6/6(7.2) 6/10（12.0） | 8.7/10(12) 8.7/15(17.5) | 12/20(24.0) | 18/30(36.0) | 21/35(40.5) | 26/35(40.5) |
|
1 |
25-630 |
25-630 | 25-630 | 25-630 | 25-630 | 50-630 | 50-630 |
| 25-630 | 25-630 | 25-630 | 25-630 | 25-630 | 50-630 |
50-630 |
|
|
25-630 |
25-630 | 25-630 | 25-630 | 25-630 | 50-630 | 50-630 | |
| 25-630 | 25-630 | 25-630 | 25-630 | 25-630 | 50-630 |
50-630 |
|
|
25-630 |
25-630 | 25-630 | 25-630 | 25-630 | 50-630 | 50-630 | |
| 25-630 | 25-630 | 25-630 | 25-630 | 25-630 | 50-630 |
50-630 |
|
|
25-630 |
25-630 | 25-630 | 25-630 | 25-630 | 25-630 | 25-630 | |
| 25-630 | 25-630 | 25-630 | 25-630 | 25-630 | 50-630 |
50-630 |
|
|
3 |
16-630 |
16-630 | 16-630 | 16-630 | 16-630 | 50-400 | 50-400 |
|
16-630 |
16-630 | 16-630 | 16-630 | 16-630 | 50-400 |
50-400 |
|
|
16-630 |
16-630 | 16-630 | 16-630 | 16-630 | 50-400 | 50-400 | |
| 16-630 | 16-630 | 16-630 | 16-630 | 16-630 | 50-400 |
50-400 |
|
| 16-630 | 16-630 | 16-630 | 16-630 | 16-630 | 50-400 |
50-400 |
|
|
16-630 |
16-630 | 16-630 | 16-630 | 16-630 | 50-400 | 50-400 | |
| 16-630 | 16-630 | 16-630 | 16-630 | 16-630 | 50-400 |
50-400 |
|
| 16-630 | 16-630 | 16-630 | 16-630 | 16-630 | 50-400 |
50-400 |
Xinfeng Medium Voltage Cable Construction

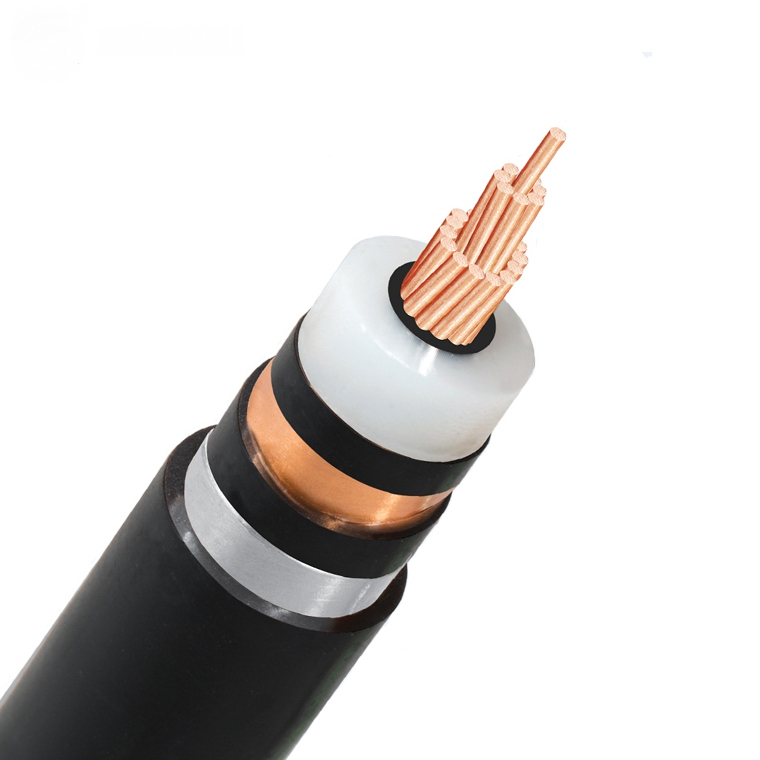

Conductor: Plain annealed stranded compacted circular copper or aluminium conductor to IEC60228 class 2
Conductor Screen: Extruded semi-conductive compound
Insulation: XLPE (cross-linked polyethylene) rated at 90°C
Insulation Screen: Extruded semi-conductive compound
Metallic Screen: copper tape or a concentric layer of copper wires
Color for core identification: Red, Yellow, Blue tape shall be applied between insulation screen and metallic screen (The above identifying can be changed as order)
Assembly : Three screened cores are laid up together ,if necessary filled with non-hygroscopic material compatible with insulation and covered with a layer of PVC sheath
Inner Sheath: Extruded layer of PVC ST2 or PE , LSZH
Armour : Double of galvanized steel tape or galvanized steel wire for three core power cable ,Double of aluminium tape or aluminium wire for single power cable
Outer Sheath: PVC type ST2 to IEC 60502 or PE ,LSZH

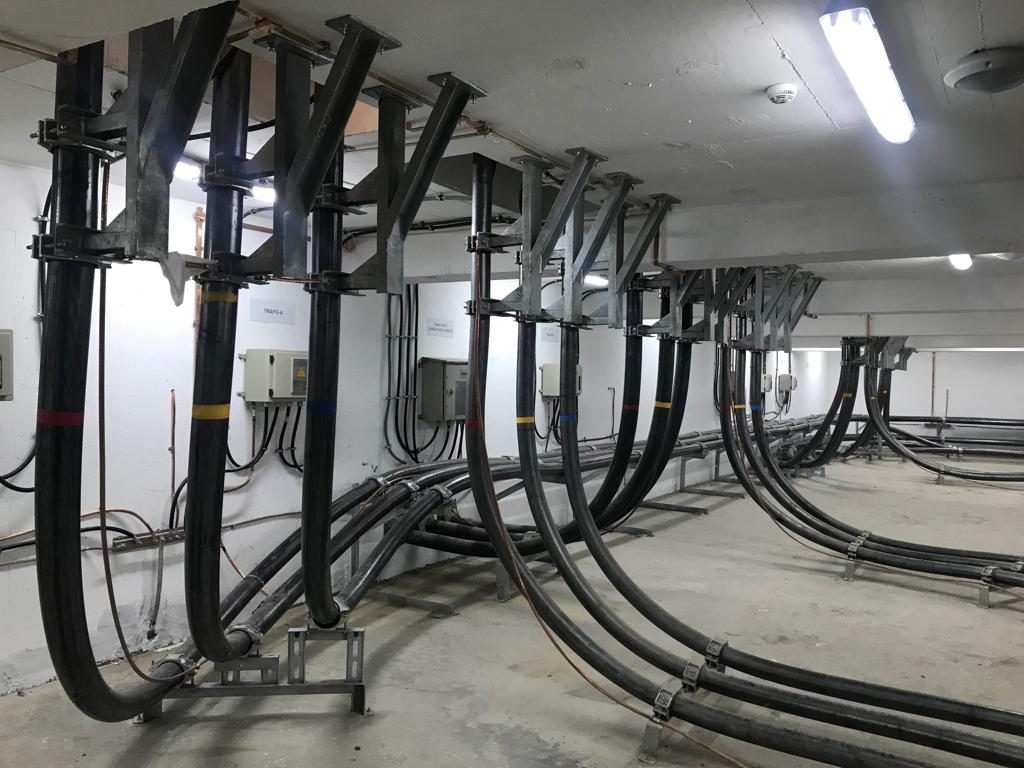

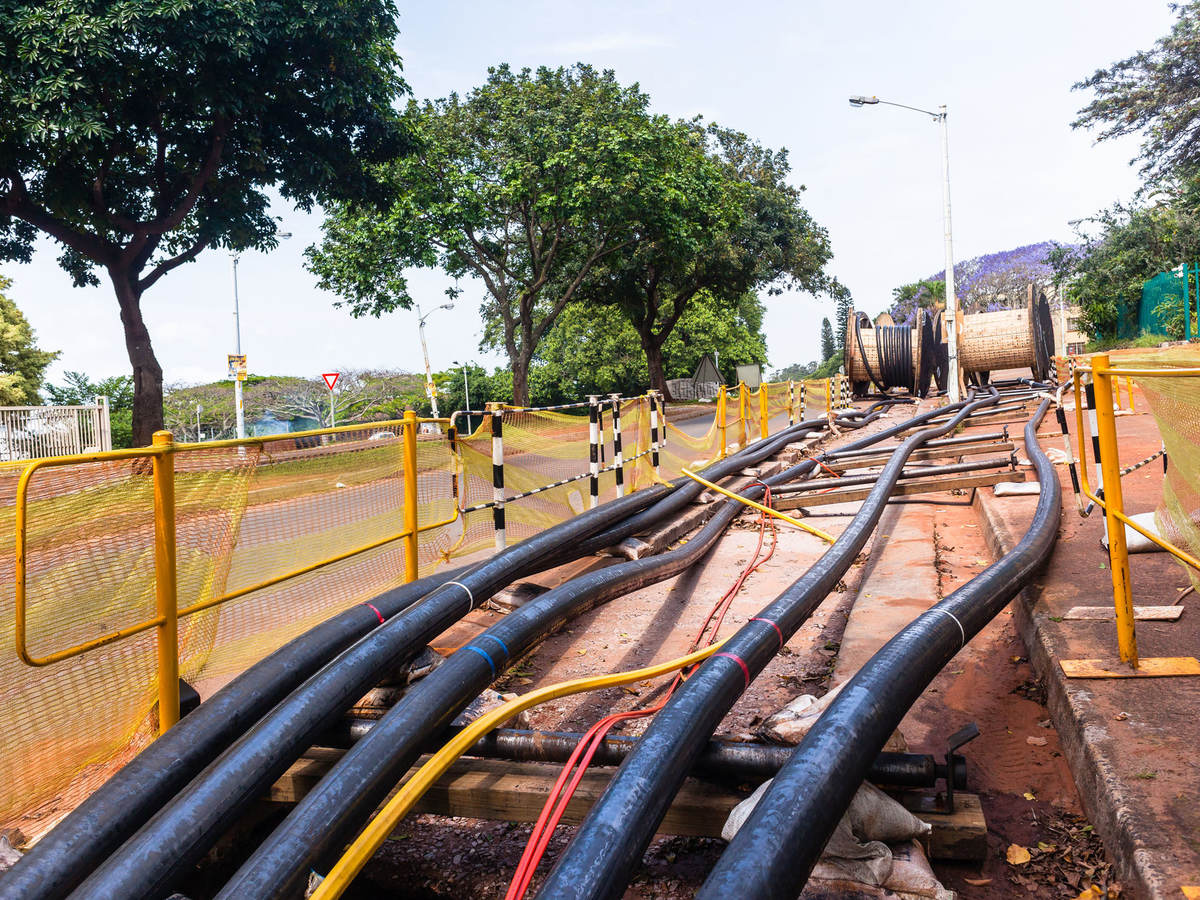

Applications:
Xinfeng Medium voltage cables are utilized in a wide range of applications, including
- Industrial Facilities: They serve as the backbone for power distribution within manufacturing plants, refineries, and other industrial sites.
- Commercial Buildings: Medium voltage cables are used in commercial properties to supply electricity to office buildings, shopping centers, and other commercial structures.
- Utility Networks: These cables play a critical role in the electrical grid, enabling the efficient transmission of power from substations to distribution points and customers.
- Renewable Energy Projects: In wind farms, solar installations, and hydroelectric facilities, medium voltage cables connect power generation sources to the grid.
- Infrastructure Projects: They are employed in transportation systems like railways and tunnels, as well as in the development of smart cities.
Xinfeng Customized 3.6kV to 35kV Medium Voltage Cables: Tailored Solutions for Your Specific Needs
When standard medium voltage cables don’t quite meet the unique requirements of your project, the solution lies in customized 3.6kV to 35kV medium voltage cables. These tailored cable solutions offer a level of flexibility and precision that ensures the cable perfectly aligns with your specific needs and applications, making them an ideal choice for diverse industries and projects.
Key Features of Customized 3.6kV to 35kV Medium Voltage Cables:
- Voltage Range Flexibility: Customization allows for precise voltage rating selection within the 3.6kV to 35kV range, ensuring that the cable can handle your project’s voltage requirements without over-engineering or compromising safety.
- Conductor Material and Size: Choose the conductor material (copper or aluminum) and size that align with your project’s electrical conductivity, weight, and cost considerations.
- Insulation Type: Customize the cable’s insulation material and thickness to meet environmental and performance requirements. Options may include XLPE, EPR, or other specialized insulations.
- Shielding Configuration: Determine the type and configuration of shielding layers, including metallic or non-metallic shields, to protect against interference and maintain signal integrity.
- Armor Specifications: Select the armor type (steel wire or tape) and thickness to ensure mechanical protection suitable for your installation environment.
- Sheath Material: Tailor the outer sheath material to provide resistance against environmental factors, chemicals, and UV exposure.
- Custom Printing and Marking: Customize the cable’s outer sheath with markings, logos, or other identification to ease installation and maintenance.
Customized Medium Voltage Cable Length:
- Tailored Length: Choose the exact length of cable required for your application, eliminating the need for splicing or excessive slack, which can lead to inefficiency and potential points of failure.
- Precision Cuts: Customized cables are precision-cut to your specifications, ensuring accurate and neat installations.
- Bulk or Specific Lengths: Whether you need cables in bulk or specific, unique lengths, customization allows for cost-effective solutions, minimizing waste and saving on material costs.
- Variable Lengths: In projects with varying cable lengths, customization can provide a mix of cable lengths, each suited to its location and purpose.
- Marking and Labeling: Customized cables can include length markings and labels, simplifying installation and maintenance.
Xinfeng Medium Voltage Cable Global Transportation Services:
- International Logistics: These services specialize in coordinating the international movement of medium voltage cables, managing customs clearance, and navigating international regulations and requirements.
- Specialized Packaging: Medium voltage cables are often transported in custom-designed packaging to protect against damage, environmental factors, and moisture during transit.
- Transport Modes: Global transportation services utilize various modes of transportation, including land, sea, and air, depending on the destination and timeline.
- Tracking and Monitoring: Advanced tracking and monitoring systems allow real-time visibility into the location and condition of the cables during transit, ensuring transparency and security.
- Warehousing and Distribution: Services may include warehousing and distribution solutions for cable storage and local distribution at the destination.
- Project Coordination: Many projects require precise timing and coordination for cable deliveries to align with installation schedules, and global transportation services assist in this project planning.
